Skyjack SJ61T Service Manual

Page 68 Telescopic Boom Series
Model SJ61T & SJ66T
194312
A B C D E F G H
V
Z
Y
X
W
PIN 1 - 77 - BROWN/GREY
6 PIN CONNECTOR (IF EQUIPPED)
4 PIN CONNECTOR
(IF EQUIPPED)
PIN 4 - 57C - BROWN/GREEN [12 GA.]
PIN 10 - 11 - WHITE/ORANGE
PIN 6 - 02 - WHITE (IF EQUIPPED)
PIN 11 - 00A - WHITE
PIN 12 - 54A - PURPLE/RED (IF EQUIPPED)
106
105
104
103
96
84
99
90
57C
00A
11
76
77
54A
54A
74
02
02
PIN 1 - 02 - WHITE
PIN 2 - 106 - GREEN/PINK
PIN 3 - 96 - WHITE/GREY
PIN 4 - 76 - BROWN/BLUE
PIN 5 - 74 - GREEN/GREY
PIN 6 - PLUGGED
PIN 7 - PLUGGED
PIN 8 - PLUGGED
PIN 9 - PLUGGED
PIN 10 - 105 - GREEN/BROWN
PIN 11 - 104 - GREEN/ORANGE
PIN 12 - PLUGGED
PIN 13 - PLUGGED
PIN 14 - 54A - PURPLE/RED
PIN 15 - 84 - WHITE/BLACK/PURPLE
PIN 16 - PLUGGED
PIN 17 - 103 - BLACK/PURPLE
PIN 18 - 99 - BLACK/GREY
PIN 19 - PLUGGED
PIN 20 - PLUGGED
PIN 21 - 90 - RED/GREY
PIN 22 - PLUGGED
PIN 23 - JUMPER TO PIN 24
PIN 24 - JUMPER TO PIN 23
PIN 25 - PLUGGED

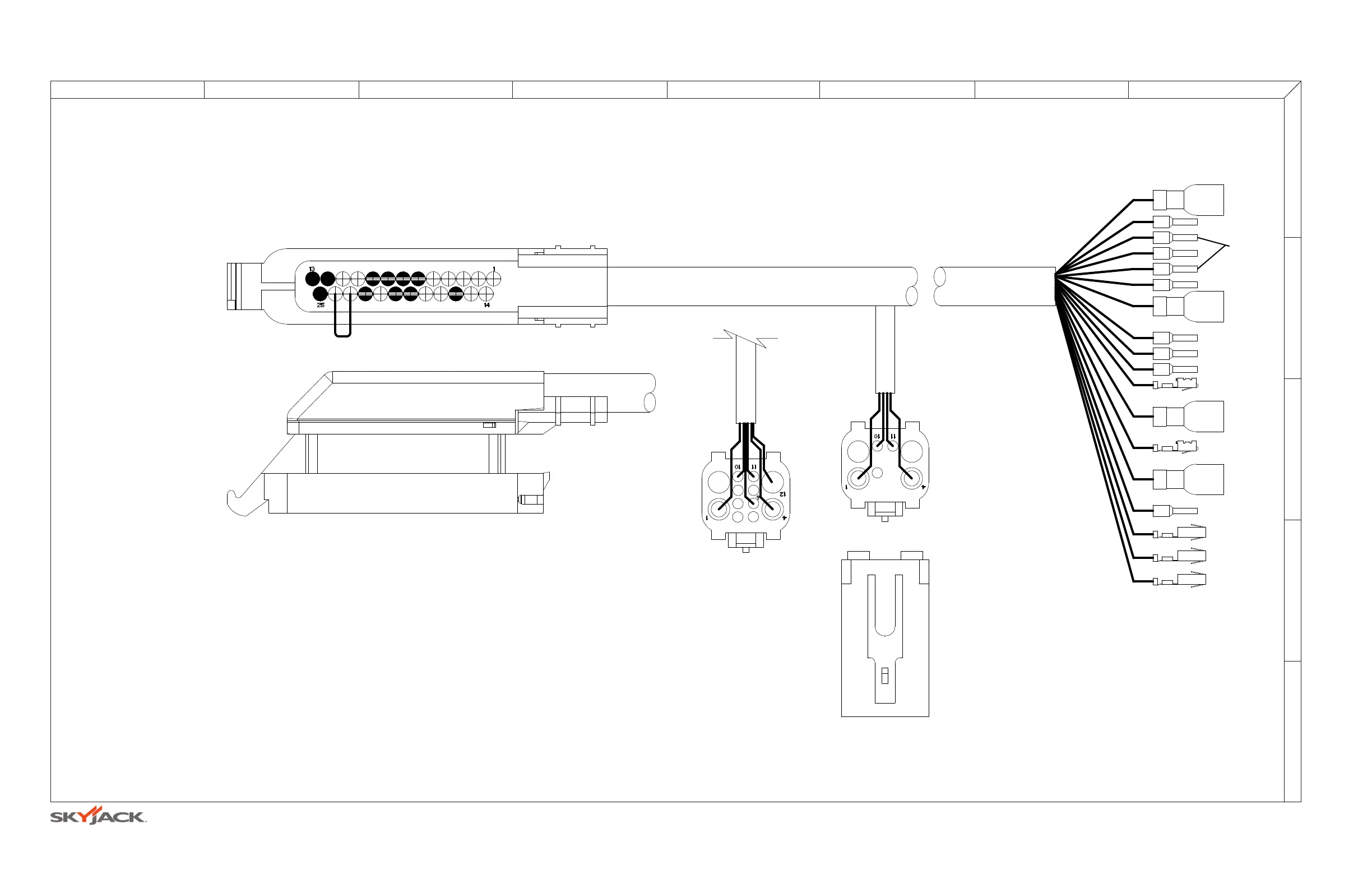

3.20 ECU Engine Wiring Diagram (Deutz Diesel Engine)
M138708AA
