Skyjack SJ61T Service Manual

Page 72 Telescopic Boom Series
Model SJ61T & SJ66T
194312
A B C D E F G H
V
Z
Y
X
W

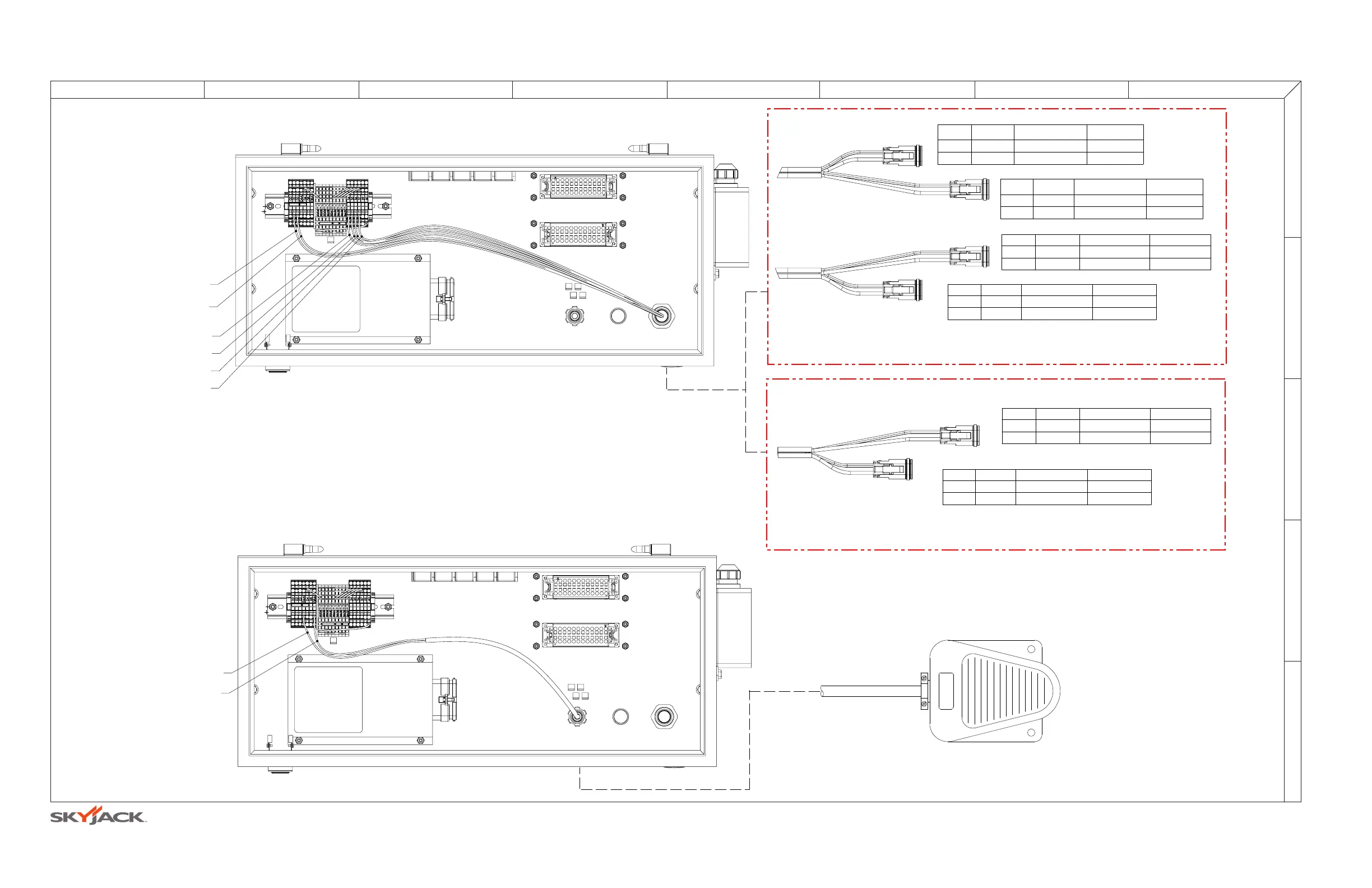

3.24 Harnesses
M167760AA_M167698AB_M167740AB
WHITE (02)
JIB & PLATFORM ROTATE CONNECTIONS
WHITE RED BLACK (37)
WHITE (02)
ORANGE BLACK (34)
ORANGE WHITE(35)
RED PURPLE (36)
BLACK (04A)
WHITE (08A)
FOOT PEDAL CONNECTIONS
CAVITY WIRE NO. COLOUR DESCRIPTION
1 34 ORANGE/BLK JIB DOWN
2 02 WHITE (SPLICE 2) GROUND
CAVITY WIRE NO. COLOUR DESCRIPTION
1 35 ORANGE/WHITE JIB UP
2 02 WHITE (SPLICE 2) GROUND
CAVITY WIRE NO. COLOUR DESCRIPTION
1 37 WHITE/RED/BLK ROTATE CCW
2 02 WHITE (SPLICE 1) GROUND
CAVITY WIRE NO. COLOUR DESCRIPTION
1 36 RED/PURPLE ROTATE CW
2 02 WHITE (SPLICE 1) GROUND
CAVITY WIRE NO. COLOUR DESCRIPTION
1 37 WHITE/RED/BLK ROTATE CCW
2 02 WHITE (SPLICE) GROUND
CAVITY WIRE NO. COLOUR DESCRIPTION
1 36 RED/PURPLE ROTATE CW
2 02 WHITE (SPLICE) GROUND
JIB & PLATFORM ROTATE HARNESS (45T/66T)
PLATFORM ROTATE HARNESS (40T/61T)
Jib and Platform Rotate Harness
Foot Pedal Connections
