Skyjack SJ61T - No Jib Valve and Port Identifications

Telescopic Boom Series
Models SJ61T & SJ66T
194312
December 2007 Page 61
Section 3 - System Component Identification and Schematics Service and Maintenance
3.13 No Jib Valve and Port Identications

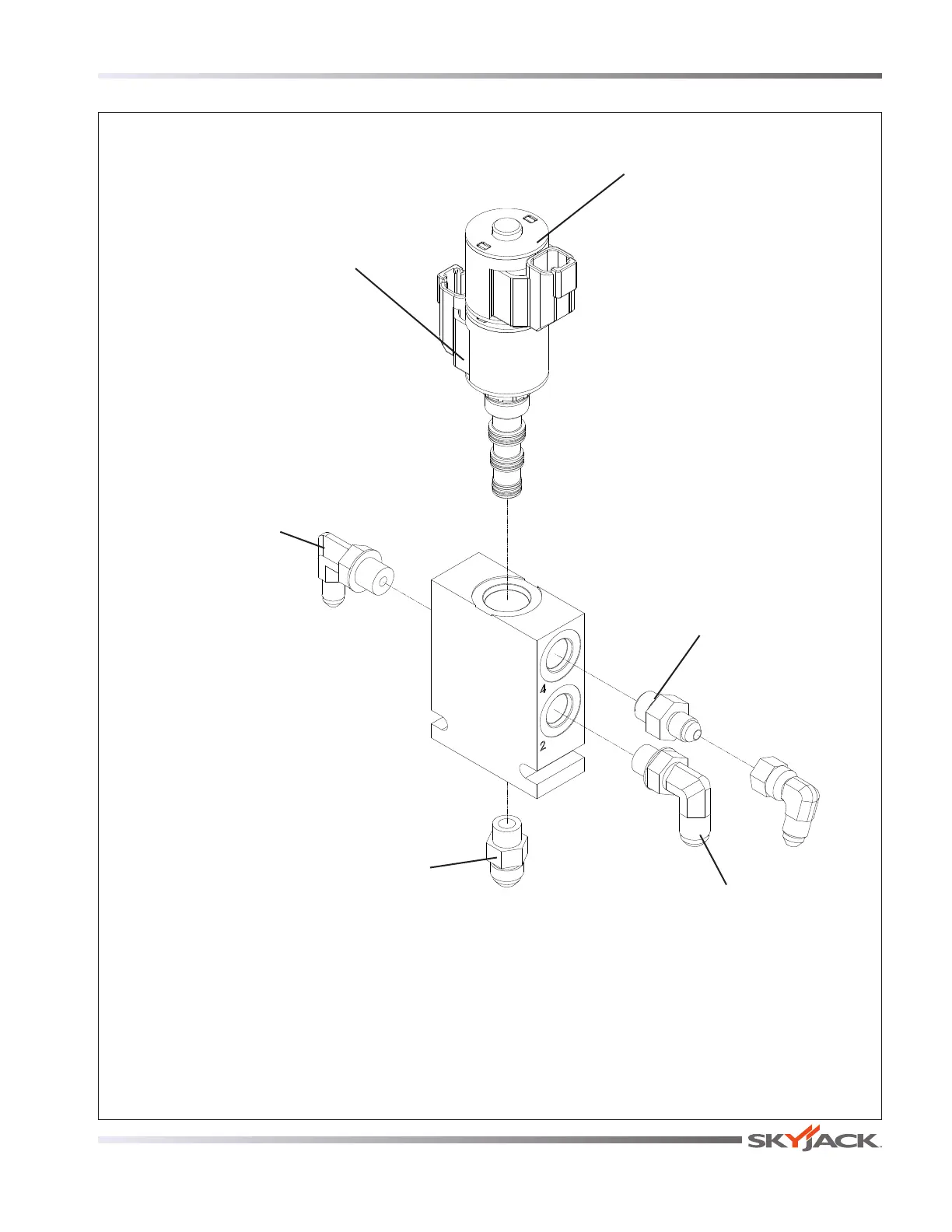

165009AA_Valve_Explode
1A
To Bulkhead #2
3
To Bulkhead #2
2(P)
To Bulkhead #1
4(T)
To Bulkhead #1
4H-36
Platform Rotate Left Valve
4H-37
Platform Rotate Right Valve
