Skyjack SJ61T Service Manual

Telescopic Boom Series
Models SJ61T & SJ66T
194312
December 2007 Page 51
Section 3 - System Component Identification and Schematics Service and Maintenance
Index
No.
Skyjack
Part No.
Qty. Description

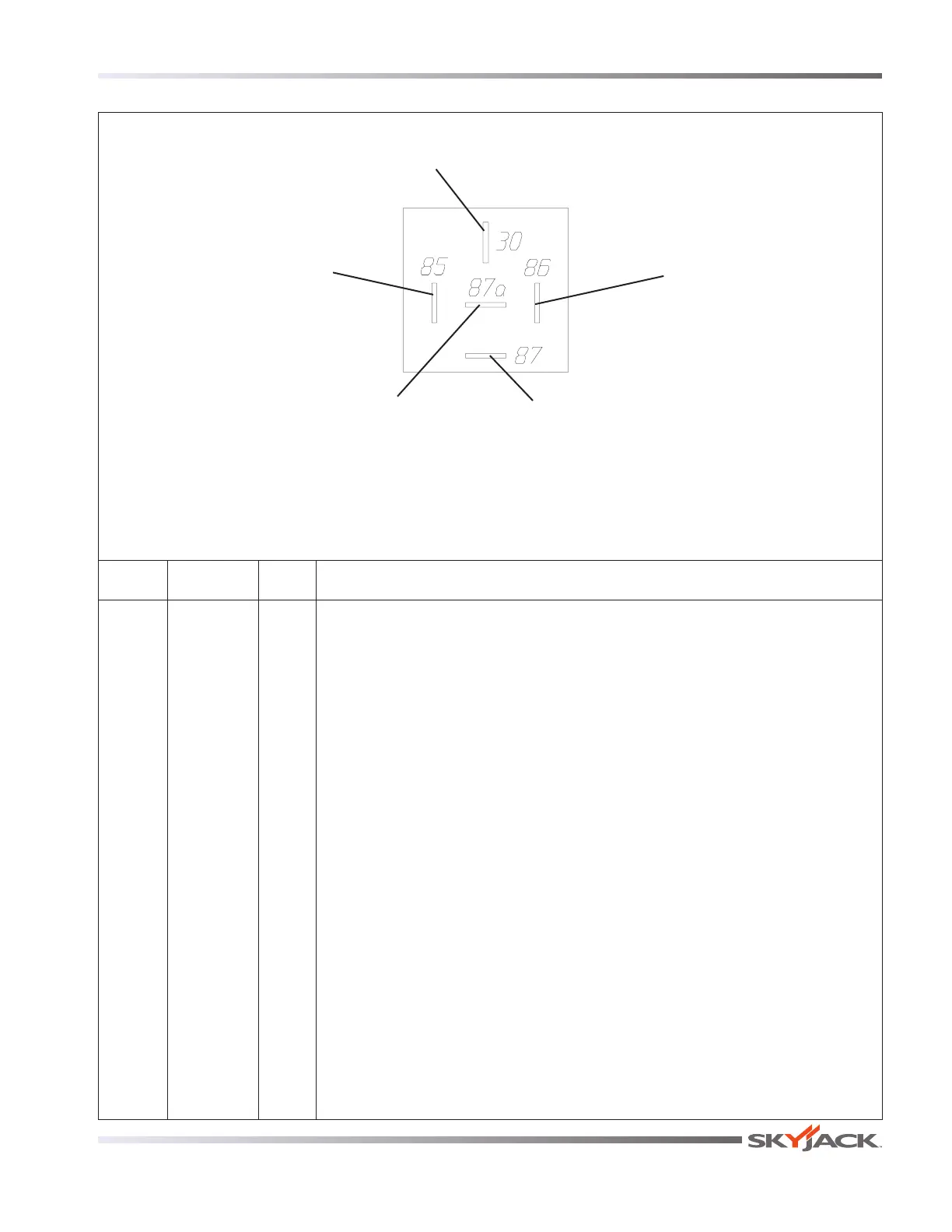

3.5 Electrical Component Parts List
CONTROL (B+)
NORMALLY
CLOSED
CONTACT
SUPPLY (B+) (Common)
GROUND (B-)
NORMALLY
OPEN
CONTACT
01CR 127131 1 RELAY, 12 Volt 40 Amp (E-pump)
08BCR 127131 1 RELAY, 12 Volt 40 Amp (Enable)
08CR 127131 1 RELAY, 12 Volt 40 Amp (Engine start interlock)
08CR1 127131 1 RELAY, 12 Volt 40 Amp (Dump valve enable)
09CR 127131 1 RELAY, 12 Volt 40 Amp (Engine power on)
17ACR1 127131 1 RELAY, 12 Volt 40 Amp (Steering reversal)
17ACR2 127131 1 RELAY, 12 Volt 40 Amp (Steering reversal)
21CR 127131 1 RELAY, 12 Volt 40 Amp (Dump valve)
49CR 127131 1 RELAY, 12 Volt 40 Amp (Horn)
51CR 127131 1 RELAY, 12 Volt 40 Amp (Drive enable)
51CR1 127131 1 RELAY, 12 Volt 40 Amp (Tilt alarm)
54ACR 138844 1 RELAY, 12 Volt 80 Amp (Cold starter)
57ACR 127131 1 RELAY, 12 Volt 40 Amp (Anti restart)
57BCR 127131 1 RELAY, 12 Volt 40 Amp (Anti restart)
57BCR1 127131 1 RELAY, 12 Volt 40 Amp (Engine start)
59CR 127131 1 RELAY, 12 Volt 40 Amp (Optional axle lock)
60CR 127131 1 RELAY, 12 Volt 40 Amp (System power)
78CR 127131 1 RELAY, 12 Volt 40 Amp (High idle)
79CR 127131 1 RELAY, 12 Volt 40 Amp (Low idle)
81CR 127131 1 RELAY, 12 Volt 40 Amp (Optional light)
82CR 127131 1 RELAY, 12 Volt 40 Amp (Overload alarm) (CE&AS)
86CR 127131 1 RELAY, 12 Volt 40 Amp (Optional oil cooler)
107CR 127131 1 RELAY, 12 Volt 40 Amp (Platform level interlock)
108CR 127131 1 RELAY, 12 Volt 40 Amp (E-pump)
Parts list continued on following page.
