Service and Maintenance Section 3 - System Component Identification and Schematics

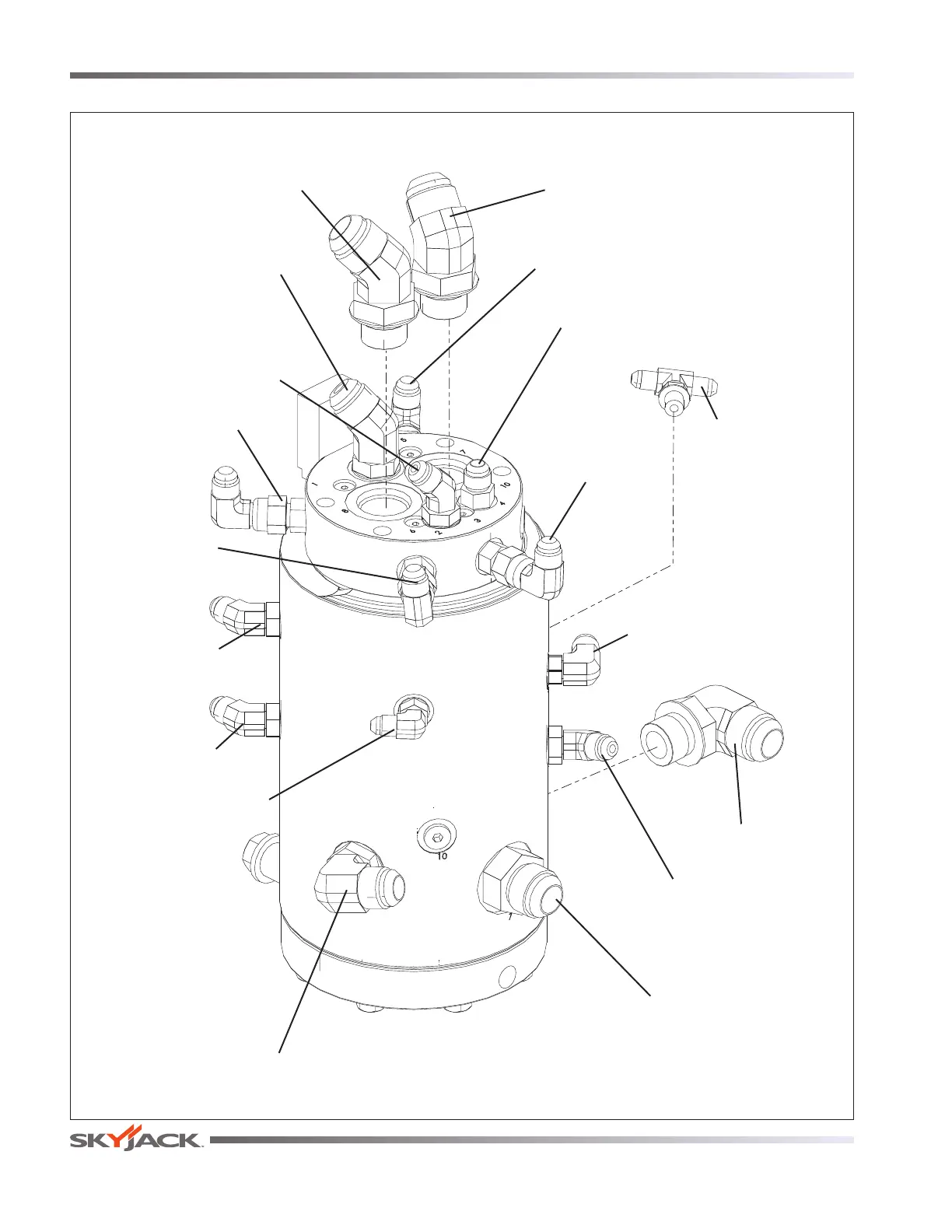

3.6 Rotary Manifold and Port Identications
Port 1
To Main Manifold
Port 1
To Steer Cylinder
Port 2
To Axle Lockout Valve
Port 4
To Brake Manifold
Port 3
To Hydraulic Tank
Port 3
To Axle Lockout Cylinder
Port 4
To Brake Cylinder
Port 6
To Brake Manifold
Port 5
To Main Manifold
Port 6
To Drive Motor
Port 2
To Axle Lockout Cylinder
Port 5
To Steer Cylinder
Port 8
To Drive Pump
Port 7
To Drive Pump
Port 7
To Drive Motor
Port 8
To Drive Motor
Port 9
To Hydraulic Tank
Port 9
To Drive Motor
