Skyjack SJ61T Service Manual

Telescopic Boom Series
Models SJ61T & SJ66T
194312
Page 67
A B C D E F G H
V
Z
Y
X
W

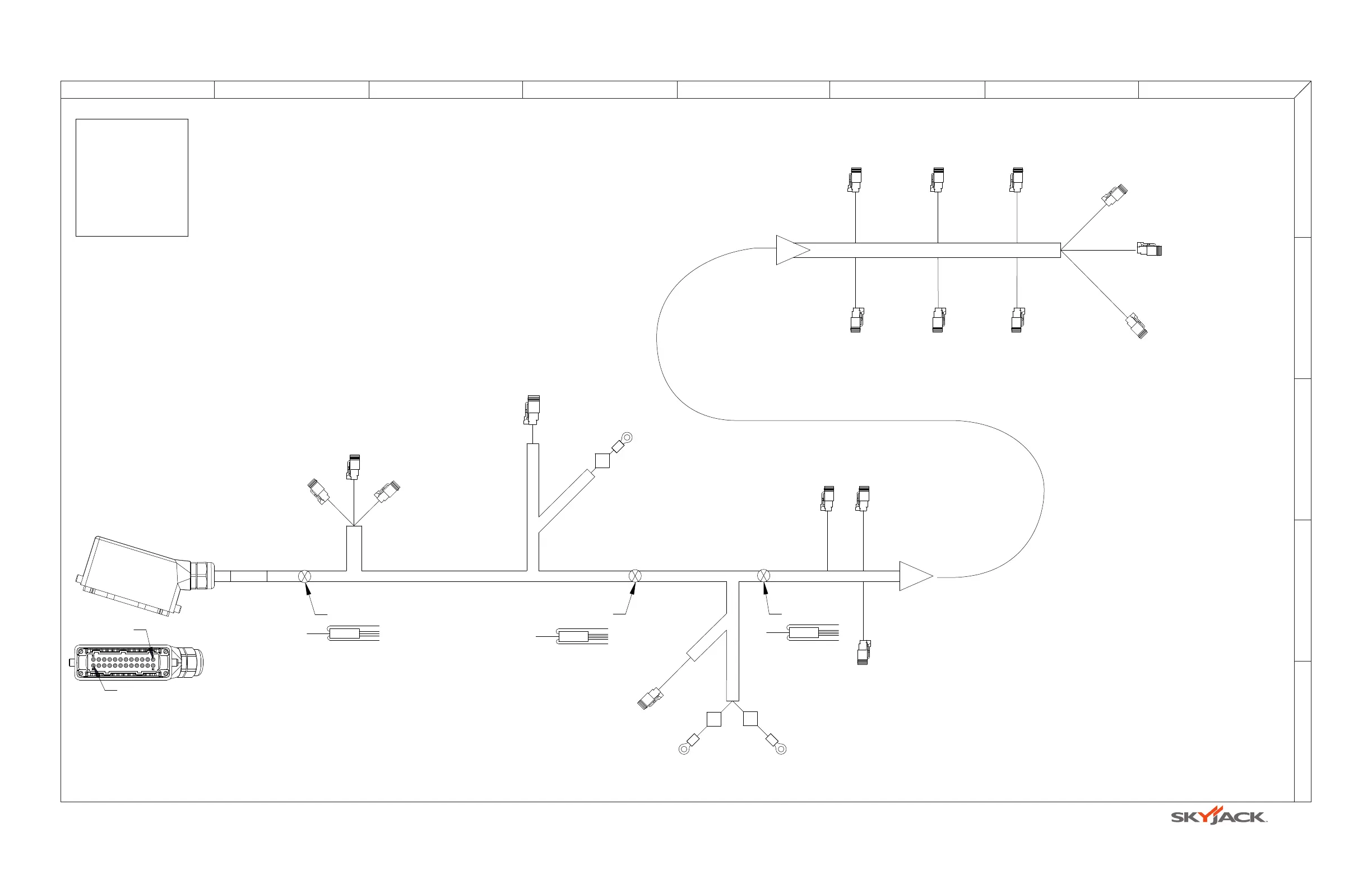

3.19 Main Harness Wiring Diagram
M165836AA-SM
PIN 1
PIN 24
CONNECTOR PINOUT
(MATING FACE)
PIN 1 - 00 - WH [12 GA.]
PIN 2 - 03 - GN/PR [12 GA.]
PIN 3 - 13 - OR
PIN 4 - 14 - BK
PIN 5 - 21A - WH/RD
PIN 6 - 23A - BK/WH
PIN 7 - 24A - BL/BK
PIN 8 - 26 - BL/YL
PIN 9 - 65 - YL/PK
PIN 10 - 32 - GN/BK
PIN 11 - 33 - GN/WH
PIN 12 - 38 - OR/RD
PIN 13 - 39 - BK/RD
PIN 14 - 40 - BL/RD
PIN 15 - 41 - BL/PR
PIN 16 - 42 - PK
PIN 17 - 45 - YL/OR
PIN 18 - 55 - YL/PR
PIN 19 - 108 - YL/BN [14 GA.]
PIN 20 - 15 - BL
PIN 21 - 16 - WH/BK
PIN 22 - 02(.1) - WH (SPLICE #1) [14 GA.]
PIN 23 - 02(.2) - WH (SPLICE #2) [14 GA.]
PIN 24 - 02(.3) - WH (SPLICE #3) [14 GA.]
LOWER CONSOLE
CONNECTOR
DRIVE PUMP EDC
BATTERY
NEG.
FUEL LEVEL
SWITCH
EMERGENCY
PUMP B+
EMERGENCY
PUMP COIL
00
03 108
AXLE LOCK
VALVE
BRAKE VALVE
MOTOR TORQUE
VALVE
PIN 1 - 65 YL/PK
PIN 2 - 02(.4) WH (SPLICE #3)
PIN 1 - 26 BL/YL
PIN 2 - 02(.5) WH (SPLICE #3)
PIN 1 - 45 YL/OR
PIN 2 - 02(.6) WH (SPLICE #3)
PIN 1 - 55 YL/PR
PIN 2 - 02(.9) WH (SPLICE #3)
PIN 1 -15 BL
PIN 2 - 02(.7) WH (SPLICE #3)
PIN 3 - 02(.8) WH (SPLICE #3)
PIN D - 16 WH/BK
00 - WH 12GA.
03 - GN/PR 12GA.
108 - YL 14GA.
PIN 1 - 24A BL/BK
PIN 2 - 02(.11) WH (SPLICE #1)
STEER LEFT
PIN 1 - 21A WH/RD
PIN 2 - 02(.10) WH (SPLICE #1)
DUMP VALVE
SPLICE #1
SPLICE #2
SPLICE #3
STEER RIGHT
PIN 1 - 23A BK/WH
PIN 2 - 02(.12) WH (SPLICE #1)
COLOUR CODING
BK - BLACK
BN - BROWN
RD - RED
OR - ORANGE
YL - YELLOW
GN - GREEN
BL - BLUE
PK- PINK
PR - PURPLE
WH - WHITE
TURRET ROTATE LEFT
PIN 1 - 32 GN/BK
PIN 2 - 02(.13) WH (SPLICE #1)
PIN 1 - 14 BK
PIN 2 - 02(.15) WH (SPLICE #1)
BOOM UP TELESCOPE OUT
PIN 1 - 38 OR/RD
PIN 2 - 02(.17) WH (SPLICE #2)
PIN 1 - 39 BK/RD
PIN 2 - 02(.18) WH (SPLICE #2)
TELESCOPE INBOOM DOWN
PIN 1 - 13 OR
PIN 2 - 02(.16) WH (SPLICE #2)
PIN 1 - 33 GN/WH
PIN 2 - 02(.14) WH (SPLICE #1)
TURRET ROTATE RIGHT
PIN 1 - 42 PK
PIN 2 - 02(.21) WH (SPLICE #2)
PROPORTIONAL FLOW
ENABLE
PIN 1 - 41 BL/PR
PIN 2 - 02(.20) WH (SPLICE #2)
PLATFORM LEVEL UP
PLATFORM LEVEL DOWN
PIN 1 - 40 BL/RD
PIN 2 - 02(.19) WH (SPLICE #2)
