Skyjack SJ61T Service Manual

Telescopic Boom Series
Models SJ61T & SJ66T
194312
Page 73
A B C D E F G H
V
Z
Y
X
W

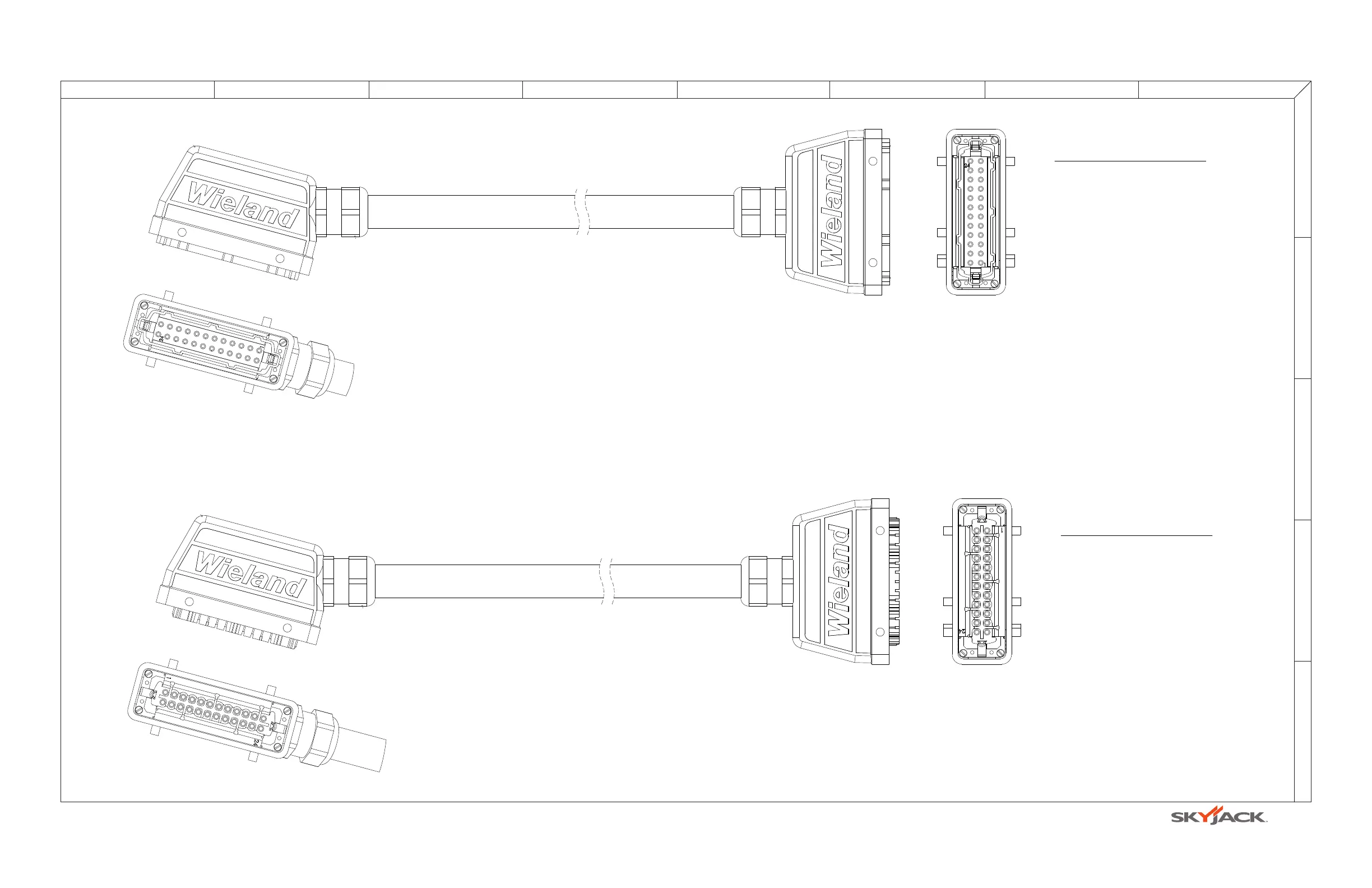

3.25 Platform Control Cable Harnesses
M165528AA_M165525AA
Control Cable “C”
Control Cable “D”
BASE & PLATFORM CONNECTIONS
POSITION 1 - WHITE
POSITION 2 - WHITE
POSITION 3 - WHITE/ORANGE
POSITION 4 - BLUE
POSITION 5 - WHITE/BLACK
POSITION 6 - BLUE/GREEN
POSITION 7 - GREEN
POSITION 8 - ORANGE/RED
POSITION 9 - BLACK/RED
POSITION 10 - BLUE/RED
POSITION 11 - BLUE/PURPLE
POSITION 12 - GREEN/RED
POSITION 13 - YELLOW/PURPLE
POSITION 14 - BROWN/GREEN
POSITION 15 - YELLOW/BLUE
POSITION 16 - WHITE/BLUE
POSITION 17 - GREEN/GREY
POSITION 18 - BROWN/BLUE
POSITION 19 - RED/BLUE
POSITION 20 - BROWN/PURPLE
POSITION 21 - GREY/BLUE
POSITION 22 - BLACK/YELLOW
POSITION 23 - BLUE/WHITE/YELLOW
POSITION 24 - BLUE/WHITE/BLACK
BASE & PLATFORM CONNECTIONS
POSITION 1 - PURPLE/BLACK
POSITION 2 - RED
POSITION 3 - RED
POSITION 4 - BLUE/WHITE
POSITION 5 - RED/YELLOW/BLACK
POSITION 6 - ORANGE
POSITION 7 - BLACK
POSITION 8 - ORANGE/BLUE
POSITION 9 - BLACK/WHITE
POSITION 10 - BLUE/BLACK
POSITION 11 - BLUE/YELLOW
POSITION 12 - RED/GREEN
POSITION 13 - RED/WHITE
POSITION 14 - GREEN/BLACK
POSITION 15 - GREEN/WHITE
POSITION 16 - ORANGE/BLACK
POSITION 17 - ORANGE/WHITE
POSITION 18 - RED/PURPLE
POSITION 19 - WHITE/RED/BLACK
POSITION 20 - YELLOW/ORANGE
POSITION 21 - YELLOW/PINK
POSITION 22 - PINK/WHITE
POSITION 23 - PINK/PURPLE
POSITION 24 - PINK/BLACK
Male
Female
Female
Male
AF
