Telescopic Boom Series
Models SJ61T & SJ66T
194312
December 2007 Page 183
Section 5 - Procedures Service and Maintenance

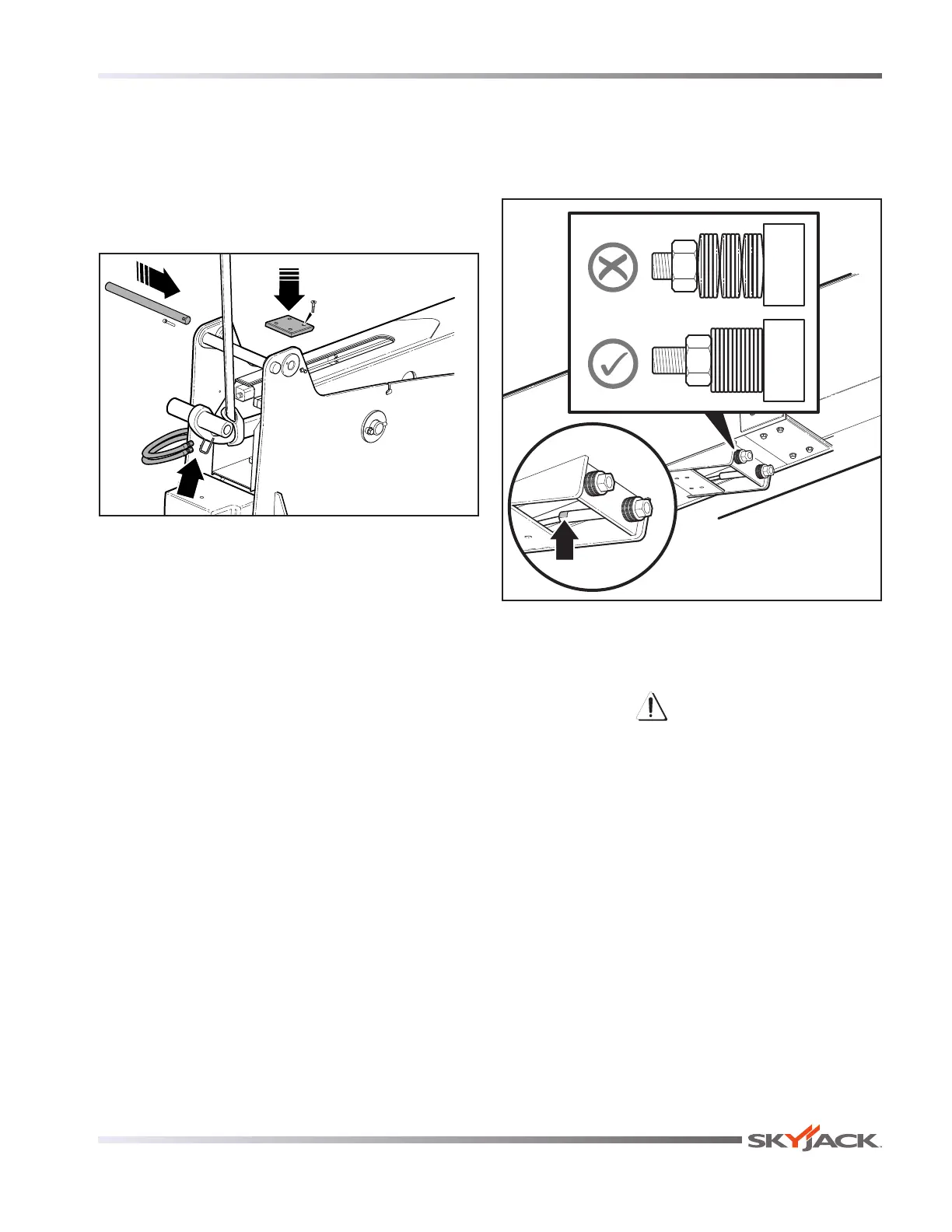

16. Install the wear pad on the top of the cylinder
support. The chamfer faces the platform end of the
machine. Apply Loctite® 242 or 243 (removable)
to the fasteners.
17. Install the extension cylinder hydraulic hoses.
Route the hoses through the hanger on the
cylinder link.
M62056AA
18. Tighten all cable ends at the anchors.
5.2-6 Proper Wire Rope Tension
19. Tighten each hex nut until all the spring discs are
fully compressed, then turn one additional ½ turn.
M62059AA
20. Install the jam nuts on the cable anchors.
21. Install the center cowling on the turret.
CAUTION
Risk of personal injury or equipment damage.
Test equipment operation before putting machine
into service. See Function Tests in the Operating
Manual.
