Page 182 December 2007
Telescopic Boom Series
Models SJ61T & SJ66T
194312
Section 5 - ProceduresService and Maintenance

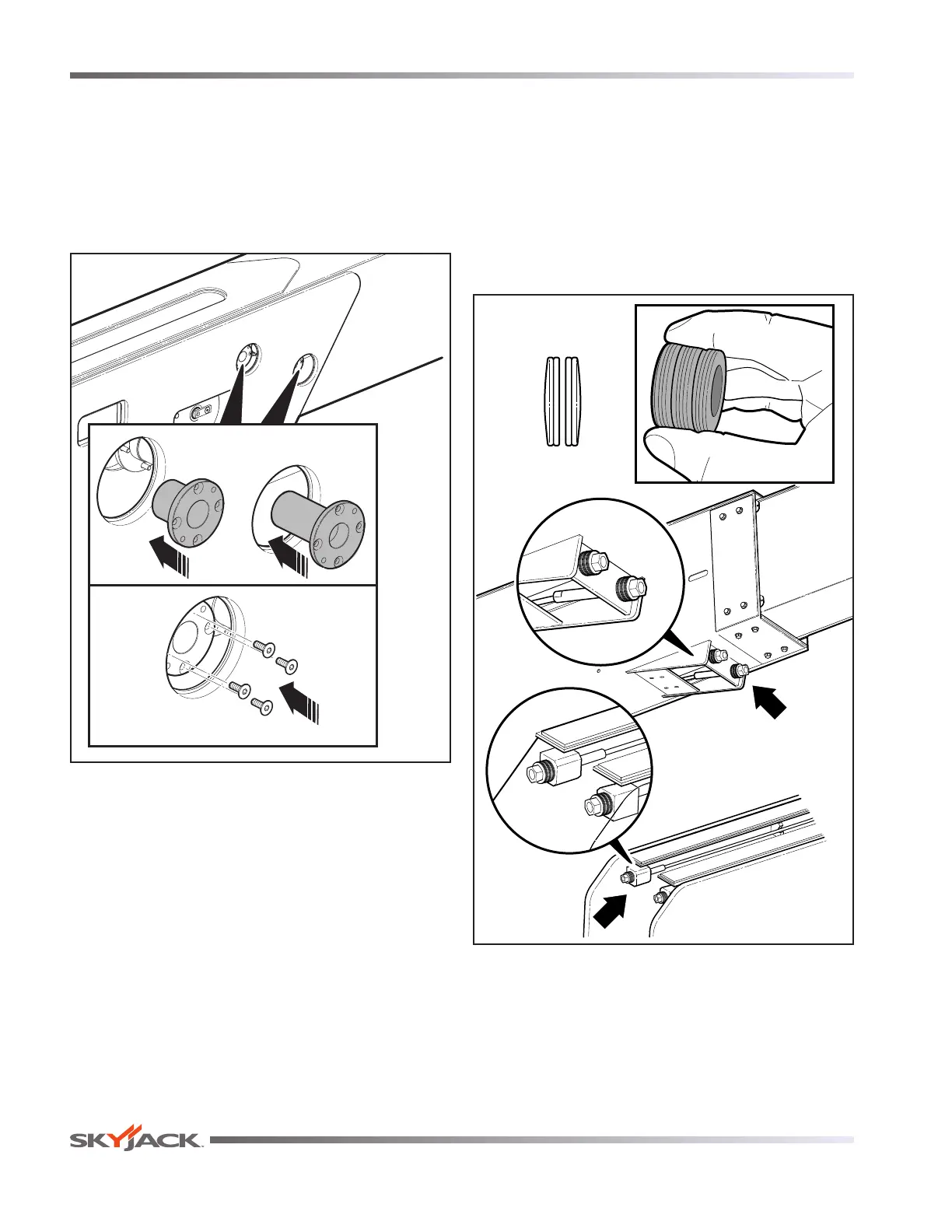

12. Install the (lower) ange pins for the cable support
onto the cable support pin and into the side of the
boom. If the anges need to be rotated, thread in
two bolts into the puller holes and turn with a pry
bar.
13. Install the (upper) ange pins onto the pin of the
cylinder base end.
M62055AA
14. Remove the hex nut on each cable end and install
the 12 spring discs. The orientation of the spring
discs is important. They must be installed by
reversing the direction of every second pair. Turn
the hex nuts on one thread to secure them.
IMPORTANT
Reverse direction of every second pair of spring
discs. Orientation of spring discs is critical for
proper wire rope tension.
M62046AA
1 2
Spring Disc Installation
15. Install the link pin.
To Next Page
