Telescopic Boom Series
Models SJ61T & SJ66T
194312
December 2007 Page 181
Section 5 - Procedures Service and Maintenance

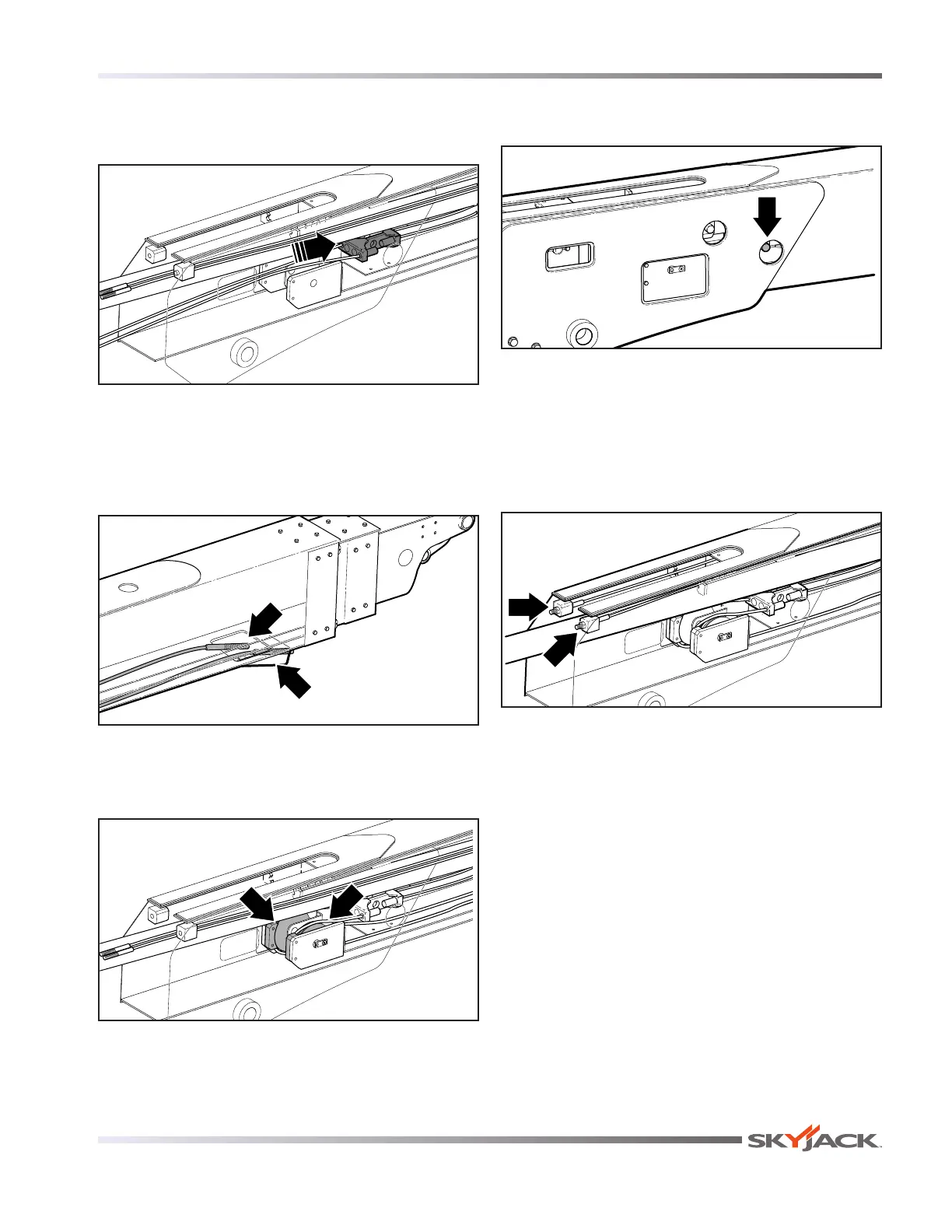

6. Slide the cylinder 2/3 of the way in until the cable
support has passed where the mid boom pulleys
mount.
M62045AA
Cable Support Past Mid Boom Pulleys
7. Route the platform end cables between the main
and mid booms, through to the anchor points at
the platform end. Install one hex nut on each cable
end.
M62058AA
Cables Routed to Platform End
8. Install the mid boom pulleys. Pull the cable slack
and t it onto the pulleys. Install the cable stops.
M62053AA
Install Mid Boom Pulleys and Cable Stops
9. Once lined up, install the (lower) cable support pin
through the cable support.
M62037AA
Install Cable Support Pin
10. Continue sliding the cylinder inward, making sure
the cables do not get tangled.
11. Install the counterweight end of the cables into the
anchor points. Install one hex nut on each cable
end.
M62054AA
Counterweight End Cables
To Next Page
