Page 180 December 2007
Telescopic Boom Series
Models SJ61T & SJ66T
194312
Section 5 - ProceduresService and Maintenance

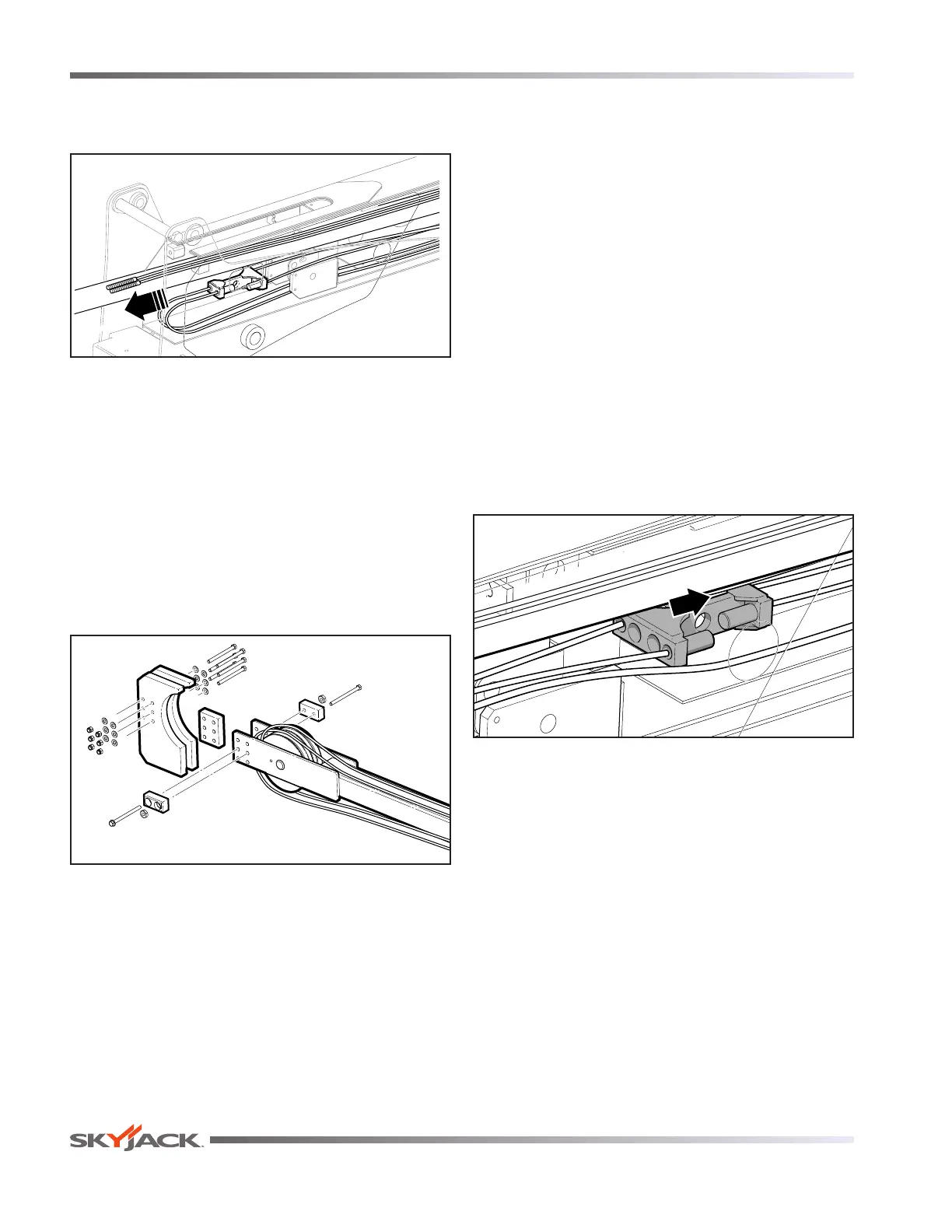

15. Pull the cylinder out 2/3 of the way. Allow the upper
cables to come out with the cylinder.
M62042AA
NOTE
Make sure the cables do not get tangled or caught
on other components.
16. Lower the end of cylinder onto a support. Connect
lifting straps at both ends of the extension cylinder.
17. Continue to slide the cylinder completely out of the
boom. Balance the load as it is being removed.
18. Lower the cylinder onto suitable supports.
19. Remove the cable stop and cables from the
extension cylinder pulley.
M62044AA
Removal of Cable Stop and Cables
20. Inspect the extension cylinder wear pads for wear
or damage. Replace if required.
21. Perform a cable inspection at this time. See Wire
Rope Inspection on page 184.
Extension Cylinder and Cable Assembly
Installation
Procedure:
1. Attach two lifting slings to the extension cylinder.
Using suitable lifting equipment, raise and slide
the end slowly into the counterweight end of the
boom assembly. The upper cables can be tie-
wrapped to the cylinder to keep them from getting
tangled. Be sure to remove the tie wraps as the
cylinder is being installed.
NOTE
Make sure the cables do not get tangled or caught
on other components.
2. Orient the cables correctly. Identify which cable
ends go to the platform end, and which go to the
counterweight end of the machine. The narrow
end of the cable support is towards the platform
end of the machine when installed.
M62260AA
Flip Cable Support
3. Lift and slide the end of the cylinder into the boom,
being careful not to tangle the cables.
4. Once the pulley end of the cylinder is into the
boom, one lifting sling can be removed. Lower
the cylinder onto a suitable stand or support and
remove one sling. Connect the lifting sling to the
link on the end of the cylinder support.
5. Carefully feed the cables in as the cylinder is being
pushed in.
