Telescopic Boom Series
Models SJ61T & SJ66T
194312
December 2007 Page 171
Section 5 - Procedures Service and Maintenance

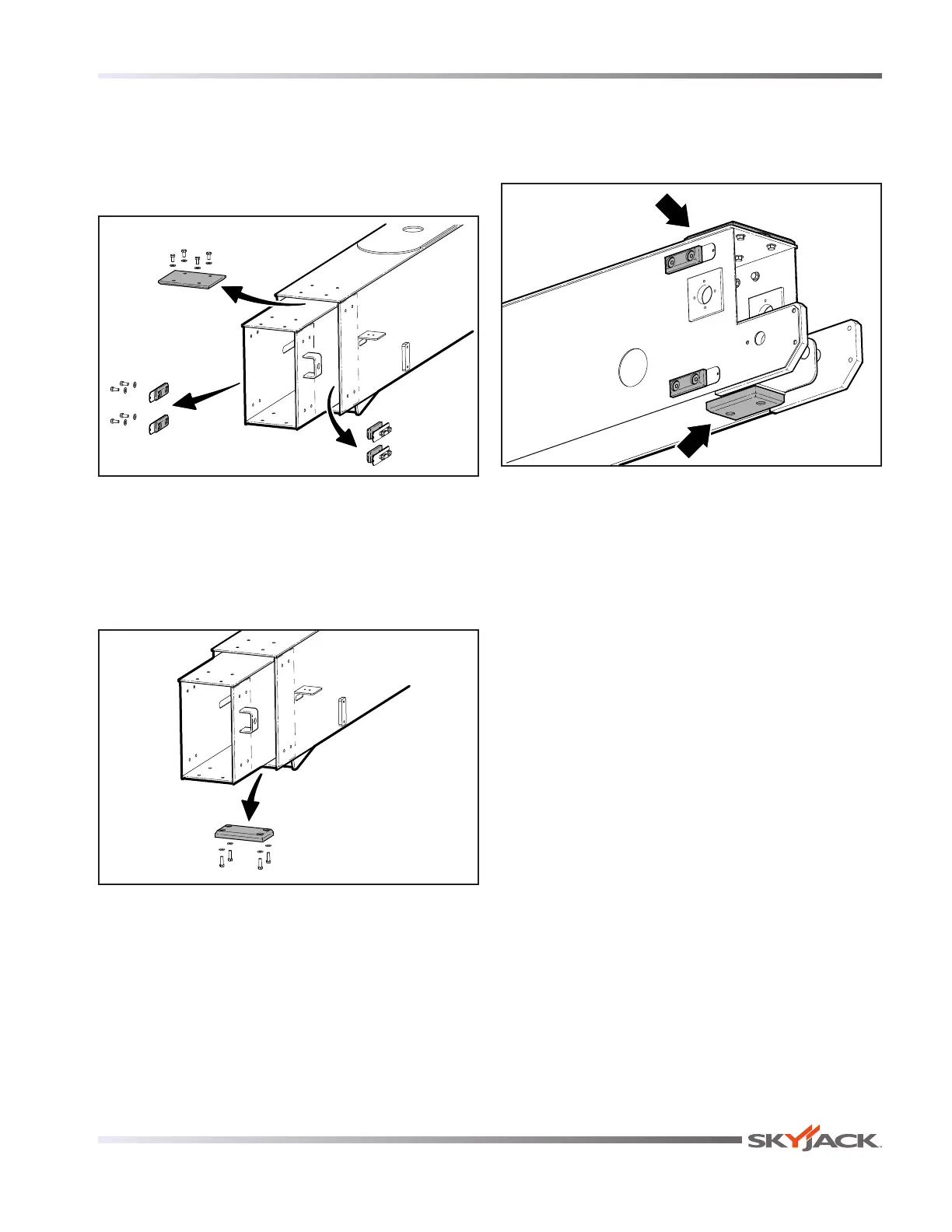

5. Connect lifting slings to the platform end of the
mid boom.
6. Remove the top and side wear pads and shims
inside the platform end of the main boom. Store
shims with appropriate parts for reassembly.
M62062AA
7. Slide the mid boom out 2/3 of the way. Slide it out
straight to avoid binding.
8. Set it down on the stand and re-sling to lift from
two points.
9. Remove bottom wear pad from the main boom.
M62236AA
Remove Bottom Wear Pad
NOTE
All the wear pads must be removed from the
platform end of the main boom so the mid boom
section can be pulled all the way out. The wear
pads on the counterweight end of the mid boom
section would otherwise prevent removal.
10. Slide the mid boom completely out of the main
boom and set it down on suitable blocking.
11. Replace the wear pads on the counterweight end
of the boom section. Install with the shims that
were removed. Apply Loctite 242 or 243 to the
wear pad fasteners.
M62063AA
To Next Page
