Skyjack SJ61T Service Manual

Telescopic Boom Series
Models SJ61T & SJ66T
194312
December 2007 Page 189
Section 5 - Procedures Service and Maintenance

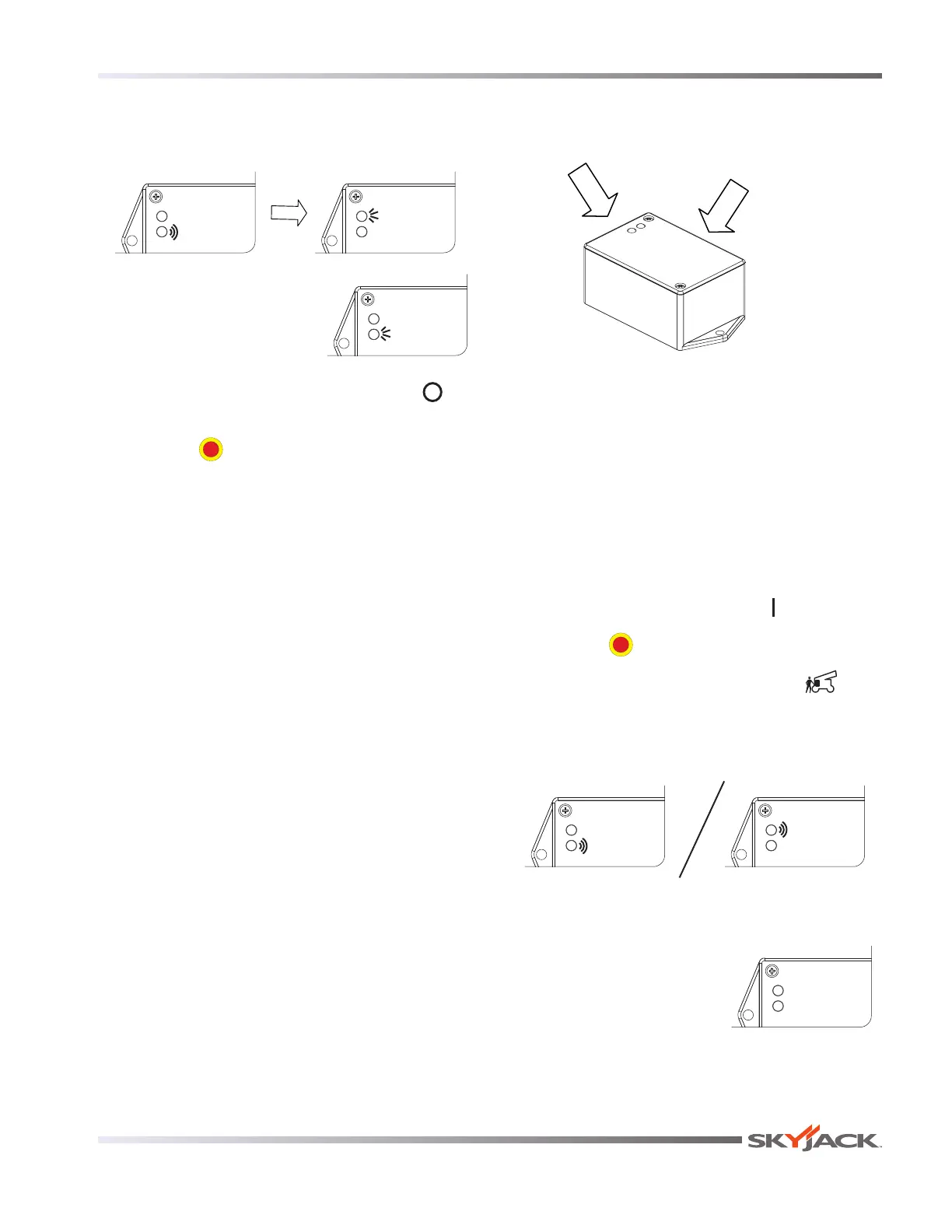

e. The green LED will flash and then the
red LED will turn on solid for 2 seconds.
Results: The switch is verifying the new zero
position.
Red LED
Green LED
Red LED
Green LED
Red LED
Green LED
f. The green LED
will turn on solid.
Results: The switch
is ready for normal
operation.
13. Turn main power disconnect switch to “ ” off
position
14. Push in “ ” emergency stop buttons.
15. Remove chock or wheel blocks.
16. Proceed to Test and Verify Tilt Circuit.
Reprogramming Existing Tilt Switch
Red LED
Green LED
Light Indicators
Set up button is located on this
face next to harness
1. Ensure aerial platform is parked on a rm level
surface.
2. Fully lower platform and retract y boom.
3. Chock or block wheels to keep the aerial platform
from rolling forward or backward.
NOTE
The tilt circuit is only powered when
controls are powered up.
4. Turn main disconnect switch to “ ” ON position.
5. Pull out “ ” all emergency stop buttons.
6. Turn base/off/platform key switch to “ ” base
position.
7. Verify switch is powered. (Red or green LED will
be continually blinking)
Red LED
Green LED
Red LED
Green LED
8. Reprogram the Tilt Switch
Red LED
Green LED
a. Press and hold
the set up button
for 3 seconds.
Results: Both LEDs
will be OFF.
