Skyjack SJ61T Service Manual

Telescopic Boom Series
Models SJ61T & SJ66T
194312
December 2007 Page 35
Section 2 - Maintenance Tables and Diagrams Service and Maintenance

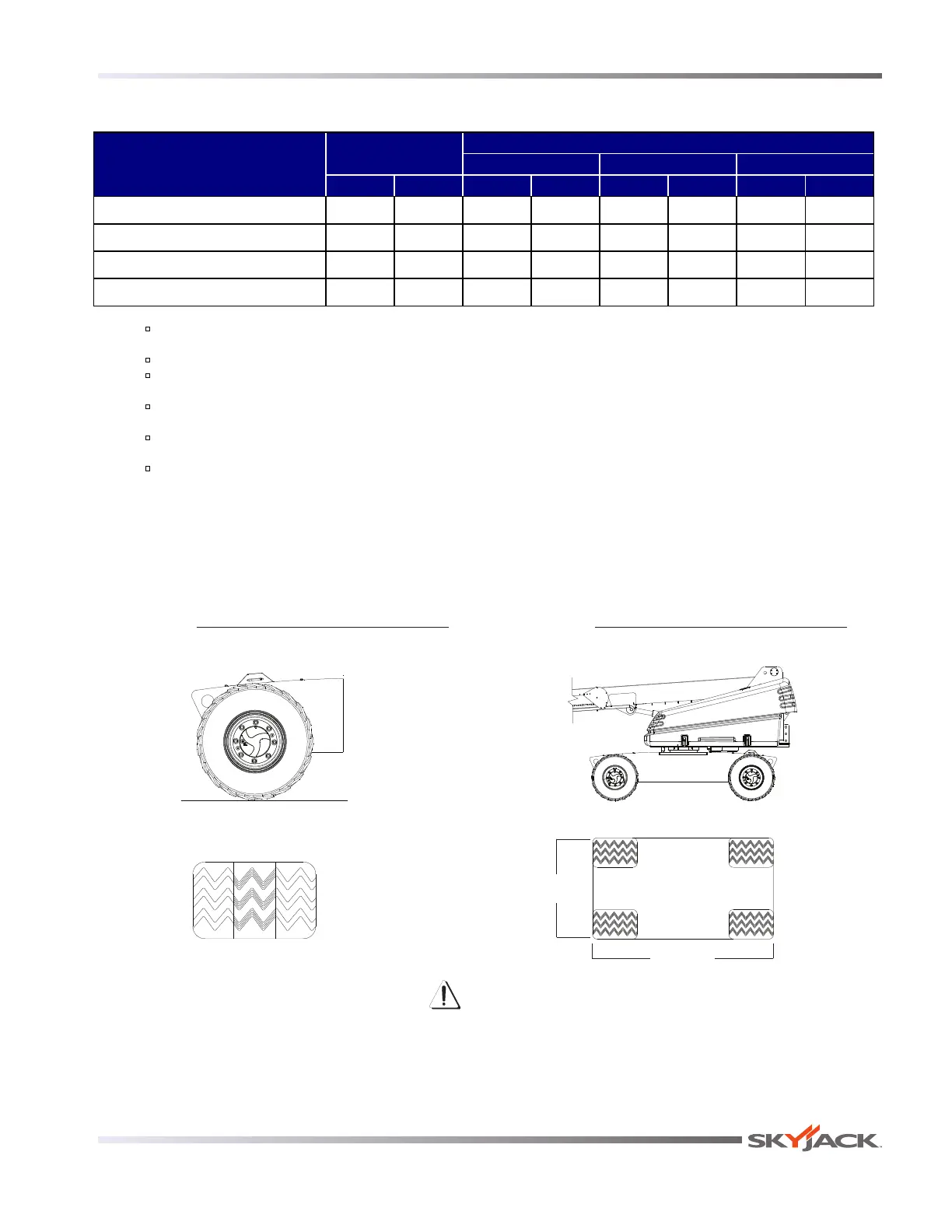

Table 2.9 Floor Loading Pressure
lb. kg lb. kg psi kPa psf kPa
24,300 11,022 12,690 5,756 138 951.0 266 12.7
27,500 12,473 14,573 6,610 145 1,001.0 304 14.6
29,403 13,337 14,580 6,613 171 1,178.0 325 16.0
28,903 13,110 14,573 6,610 171 1,178.0 325 16.0
1087-ALL Standards






NOTE:
61/66T: Foam tires option will add approximately 1364 lb. (616 kg) to total aerial platform weight and 340 lb. (154 kg) to max. wheel load. OUP
will increase by 5% and LCP will increase by approx. 18%.
CE & AS Standard Configuration (61/66T)= 4WD + Oscillating Axle + 15" x 19.5" (38.1 cm x 49.5 cm) Foam Tires
Total Aerial Platform Load
SJ 61T (ANSI Standard configuration)
Total Aerial Platform
Weight
WheelMODEL LCP
Welder option will add approximately 350 lb. (158.8 kg) to total aerial platform weight and 175 lb. (79.4 kg) to max. wheel load.
The LCP or OUP that an individual surface can withstand varies from structure to structure and is generally determined by the engineer or
architect for that particular structure.
OUP
LCP – Locally Concentrated Pressure – is a measure of how hard the aerial platform tire tread presses on the area in direct contact with the
floor. The floor covering (tile, carpet, etc.) must be able to withstand more than the indicated values above.
OUP – Overall Uniform Pressure – is a measure of the average load the aerial platform imparts on the whole surface projected directly
underneath it. The structure of the operating surface (beams, etc.) must be able to withstand more than the indicated values above.
Total Aerial Platform Weight = Weight + platform capacity
ANSI Standard Configuration (61/66T)= 4WD + Oscillating Axle + 15" x 19.5" (38.1 cm x 49.5 cm) Air Tires
SJ 66T (AS Standard configuration)
SJ 66T (CE Standard configuration)
SJ 66T (ANSI Standard configuration)
Locally Concentrated Pressure (LCP):
Foot Print Area = Tread Contact Area
LCP
=
Maximum Wheel Load
Foot Print Area
Overall Uniform Pressure (OUP):
Base Area = Length x Width
OUP
=
Aerial Platform Weight + Capacity
Base Area
Tread Contact Area
Width
Length
WARNING
Intermixing tires of different types or using tires of types other than those originally supplied with
this equipment can adversely affect stability. Therefore, replace tires only with the exact original
Skyjack-approved type. Failure to operate with matched approved tires in good condition may
result in death or serious injury.
