LD301 – Operation and Maintenance Instruction Manual
1.12

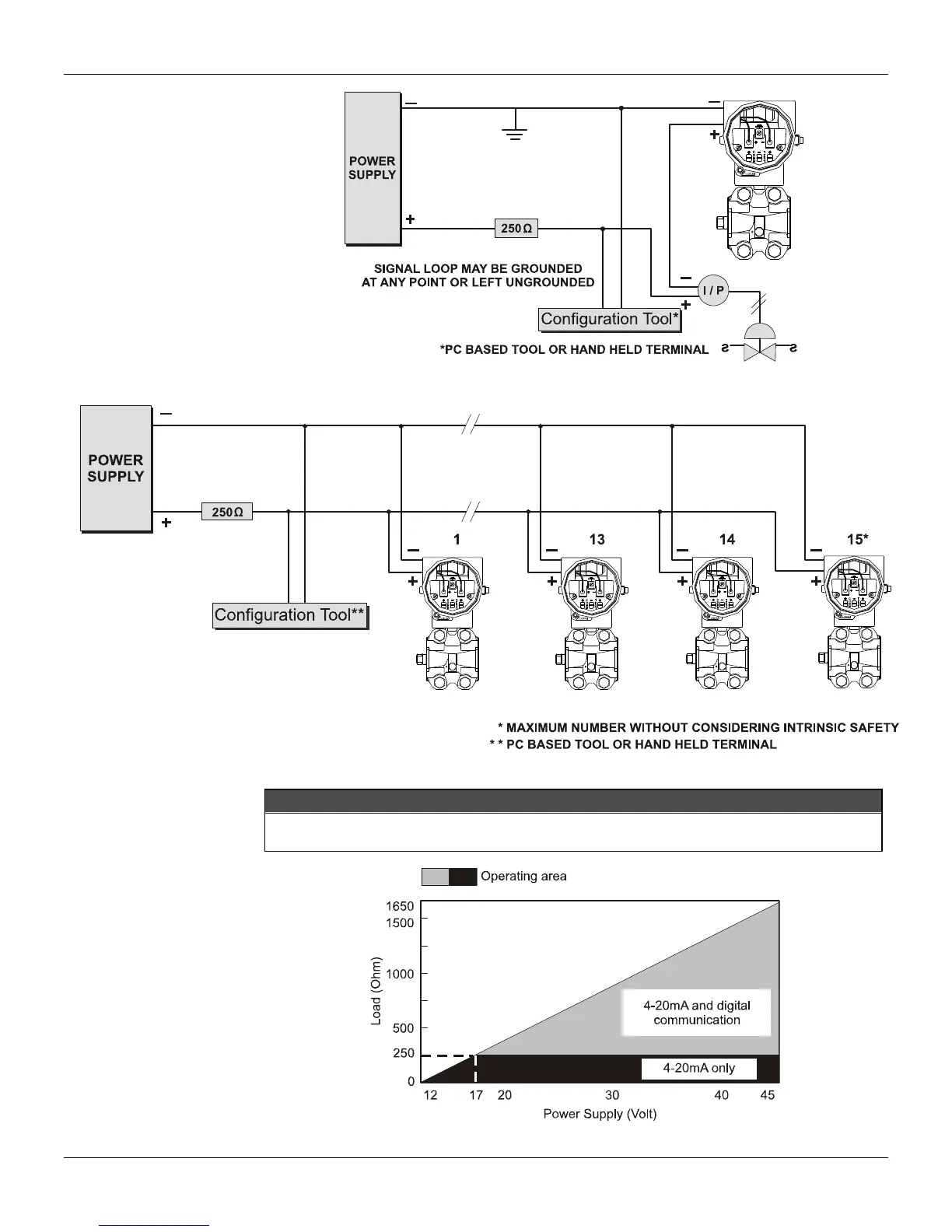

Figure 1.8 - Wiring Diagram for the LD301 Working as a Controller
Figure 1.9 - Wiring Diagram for the LD301 in Multidrop Configuration
NOTE
Make sure that the transmitter is operating within the operating area as shown on the load curve
(Figure 1.10). Communication requires a minimum load of 250 Ohm and voltage equal to 17 Vdc.
Figure 1.10 – Load Limitation
