SMAR ld301 - South America Certification; Asia Certification; Identification Plate and Control Drawing; Identification Plate

Appendix A
A.3
Certificate No: DMT 00 ATEX E 009
ATEX Intrinsically Safe
Group II 1/2 G, Ex ia, IIC T4/T5/T6
• Entity Parameters: Ui = 28 Vdc Ii = 93 mA Ci ≤ 5 nF Li = neg
South America Certification
INMETRO approvals
Certificate No: CEPEL-Ex-049/95
Intrinsically safe - Ex-ia IIC T5
• Entity Parameters: Ui = 30 Vdc Ii = 100 mA Ci =6,4nF Li = neg Pi=0,7 W
Ambient Temperature: (-20ºC < T
amb
<+50ºC).
Enclosure IP66/67 ou IP66/68W.
Certificate No: CEPEL-Ex-039/96
Flameproof - Ex-d IIC T6
Ambient Temperature: (-20ºC < T
amb
<+40ºC).
Enclosure IP66/67 ou IP66/68W.
Asia Certification
Certificate No: Nepsi GYJ05602
Intrinsically safe - Ex ia, IIC
Temperature Class:
• T4 (-40ºC< T
amb
<+85ºC @ Pi=700 mW)
• T5 (-40ºC< T
amb
<+50ºC @ Pi=700 mW)
• T6 (-40ºC< T
amb
<+40ºC @ Pi=575 mW)
• Entity Parameters: Ui = 28 Vdc Ii = 93 mA Ci ≤ 5 nF Li = neg
Certificate No: Nepsi GYJ05601
Explosion proof - Ex d IIC T6
Ambient Temperature: (-20ºC < T <+40ºC).
Identification Plate and Control Drawing
Identification Plate

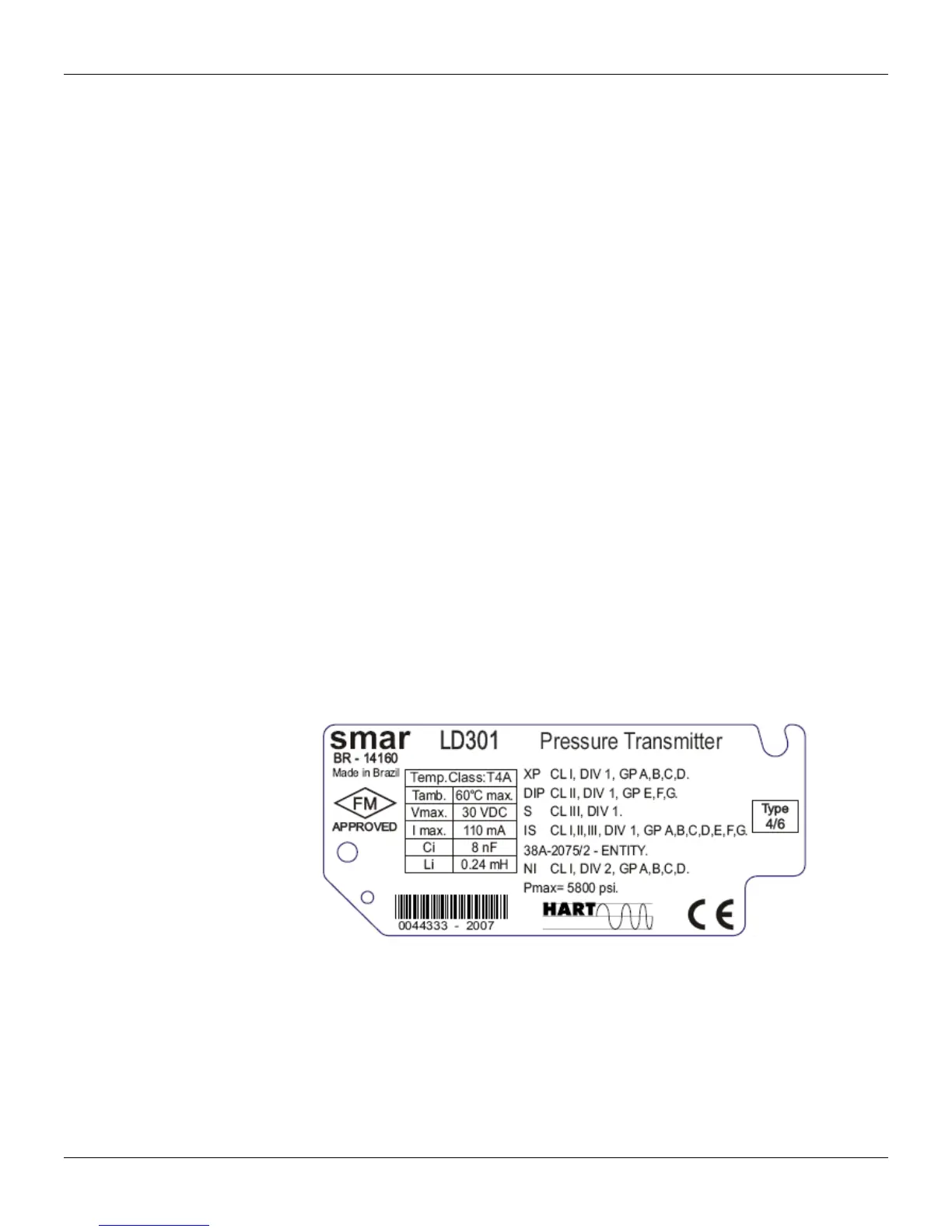

• Identification of Intrinsically safe and Explosion Proof for gas and steam:
FM
