Programming Using Local Adjustment
4.15

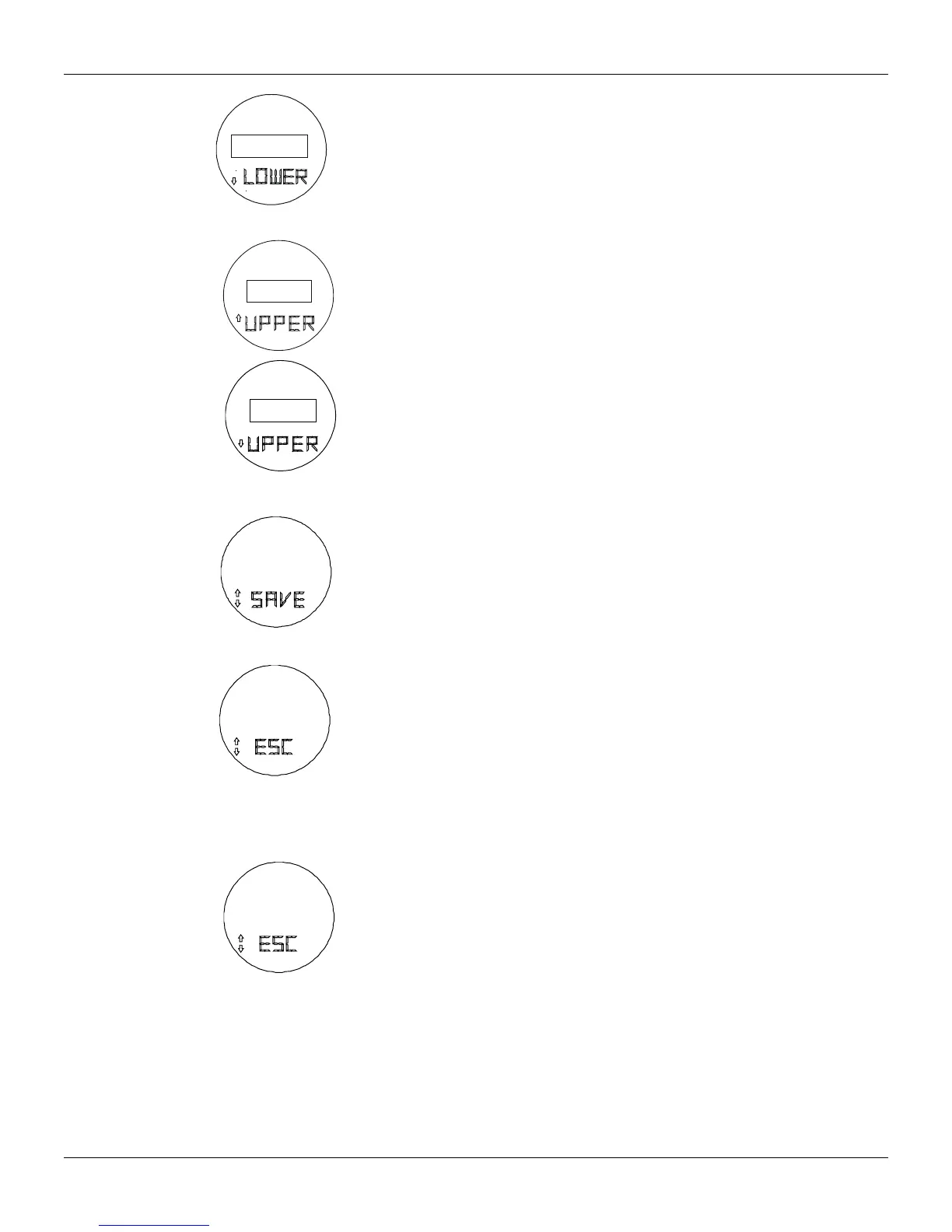

Z: Moves on to function SAVE if the Lower Pressure Trim (LOWER) is running or to
the Upper Pressure Trim (UPPER).
S: Adjusts the transmitter internal reference, decreasing the displayed value that will
be interpreted as the Lower Pressure value corresponding to the applied pressure.
Upper Pressure Trim (UPPER)
Z: Moves to the decrease upper pressure reading.
S: Sets the transmitter internal reference increasing to the value on the display, which
is the reading of the applied pressure.
Z: Moves to the SAVE function.
S: Sets the transmitter internal reference decreasing to the value on the display, which is
the reading of the applied pressure.
Save (SAVE)
Z: Moves to the ESCAPE from TRIM menu.
S: Saves the UPPER and LOWER TRIM point in the transmitter EEPROM.
Escape (ESC)
Z: Moves to the ZERO TRIM function.
S: Escapes to the MAIN menu.
Escape Local Adjustment [ESC]
This branch of the main tree is used to leave the Local Adjustment mode, placing the Transmitter or
Controller in the monitoring mode
.
Z: Selects the OPERATION branch (Controller) or CONFIGURATION branch
(Transmitter).
S: Escapes to NORMAL DISPLAY mode.
