LD301 - Operation and Maintenance Instruction Manual
4.12

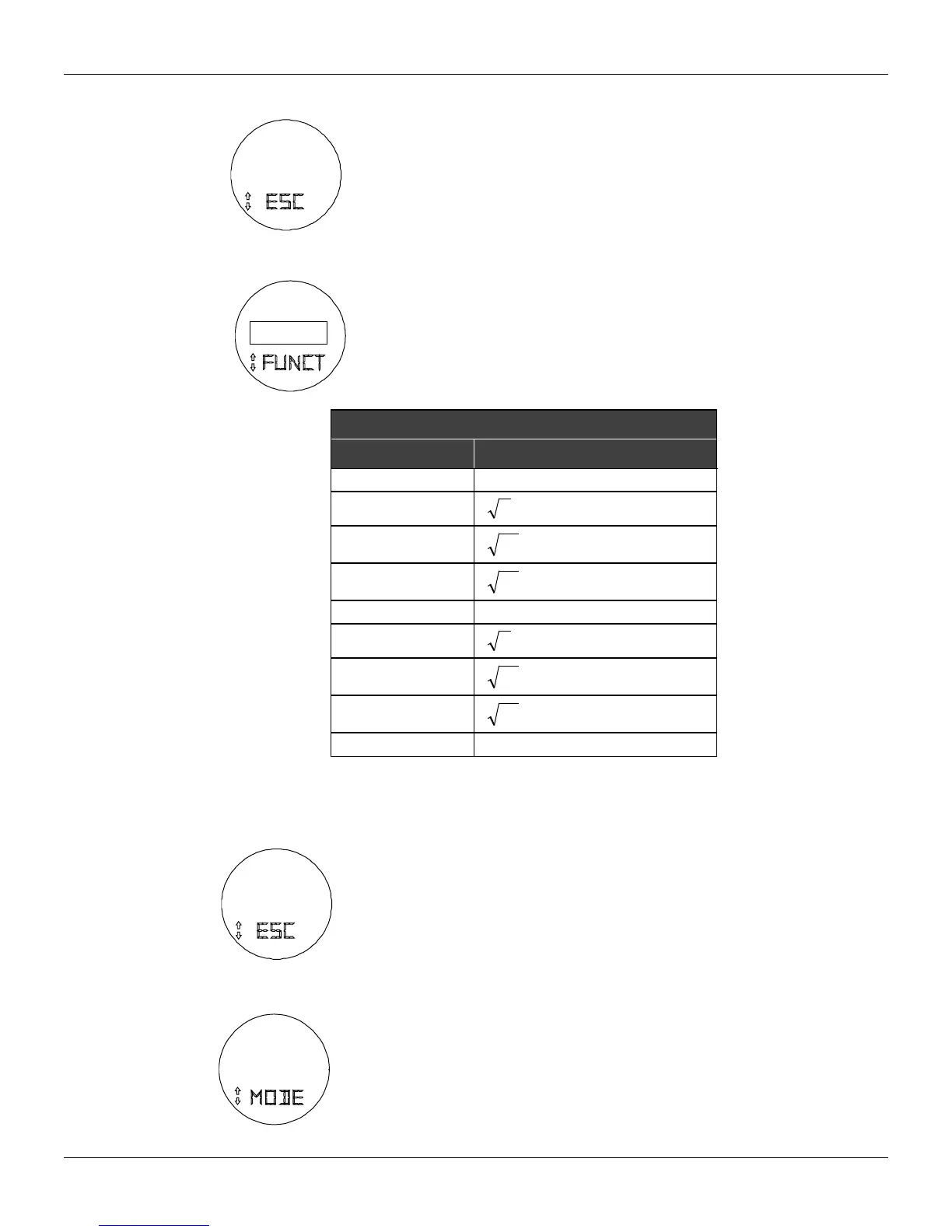

Escape (ESC)
Z: Moves to the UNIT function.
S: Escapes to the FUNCT menu, of the MAIN menu.
Function (FUNCT)
Z: Moves to the MODE function.
S: Starts selection of transfer function. After activating the switch in the hole (S), you
can move around the available options in the table 4.5 by activating (Z).
FUNCTIONS
DISPLAY DESCRIPTION
LINE Linear to Pressure
SQR
x
SQR3
3
x
SQR5
5
x
TABLE 16 Point Table
SQTB
x
+ 16 Point Table
SQ3TB
3
x
+ 16 Point Table
SQ5TB
5
x
+ 16 Point Table
ESC escape
Table 4.5 – Functions
The desired function is activated using (S). Escape leaves function unchanged.
Escape (ESC)
Z: Moves to the LINE function.
S: Escapes to the MODE function.
Operation Mode (MODE)
Z: Moves to the ESCAPE to CONF menu.
S: This function is protected by a "password," when prompted PSWD, enter the
password. The password code is entered by inserting and removing the magnetic tool
twice in (S). The first time, the password value is changed from 0 to 1, and the second
time XMTR/PID is shown, meaning that the password was correct and that the branch is
entered and the setting changed.
