Programming Using Local Adjustment
4.11

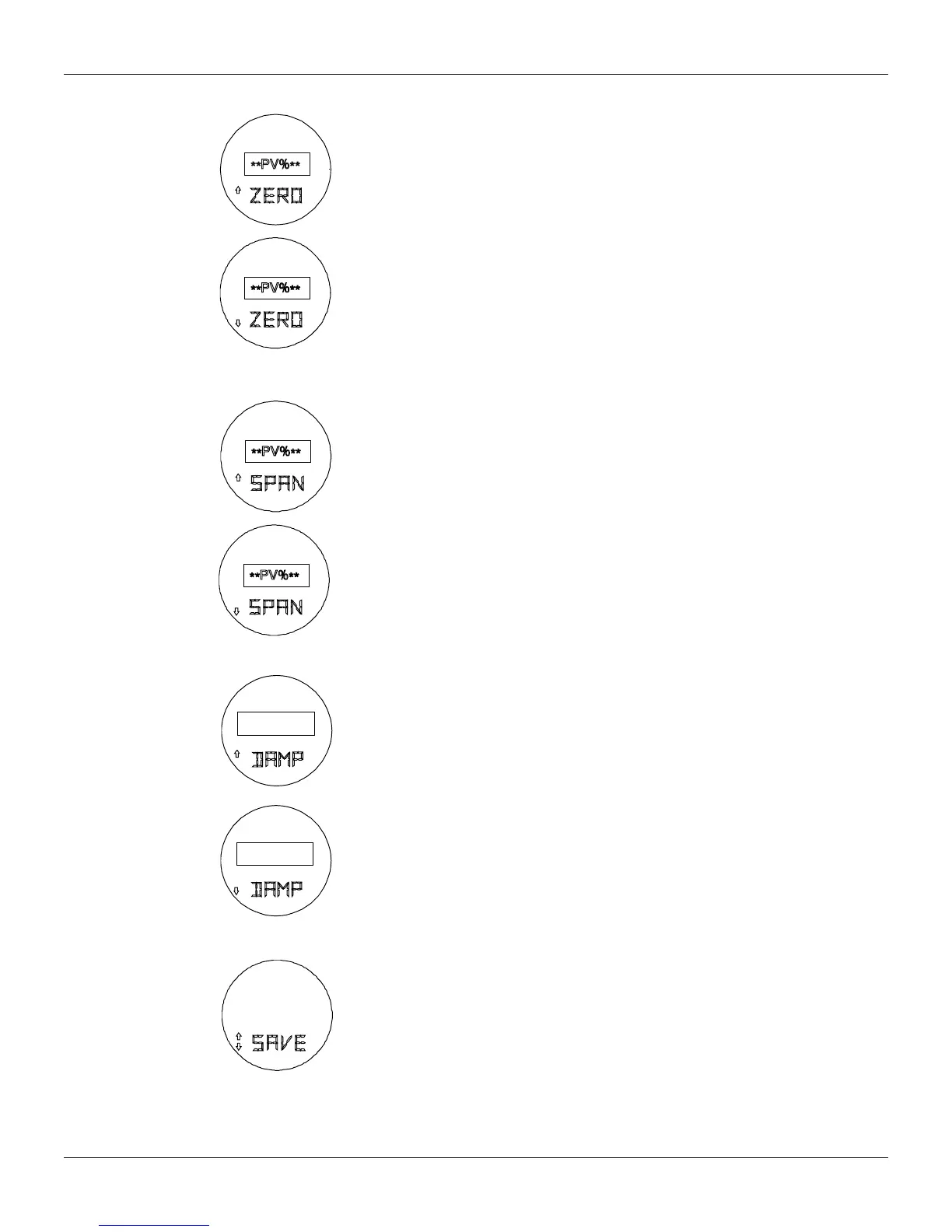

Zero Adjust with Reference {ZERO}
Z: Moves to the ZERO DECREASE function.
S: Increases output in transmitter mode, decreases the Lower Pressure Value until the
magnetic tool is removed or the minimum for the Lower Value is reached. The span is
maintained.
Z: Moves to the SPAN ADJUSTMENT function.
S: Decreases Output in transmitter mode, increases the Lower Pressure Value until the
magnetic tool is removed or the maximum for the Lower Value is reached. The span is
maintained.
Span Adjust with Reference (SPAN)
Z: Moves to the SPAN DECREASE function.
S: Increases the Output in transmitter mode, decreases the Upper Pressure Value until
the magnetic tool is removed or the minimum for the Upper Value is reached.
Z: Moves to the DAMPING function.
S: Decreases the Output in transmitter mode, increases the Upper Pressure Value until
the magnetic tool is removed or the maximum for the Upper Value is reached.
Damping (DAMP)
Z: Moves to the DAMPING DECREASE function.
S: Increases the damping time constant until the magnetic tool is removed or 128
seconds are reached.
Z: Moves to the SAVE function.
S: Decreases the damping time constant until the magnetic tool is removed or 0
seconds is reached.
Save (SAVE)
Z: Moves to the ESCAPE of RANGE menu.
S: Saves the LRV, URV, ZERO, SPAN and DAMP values in the transmitter EEPROM.
