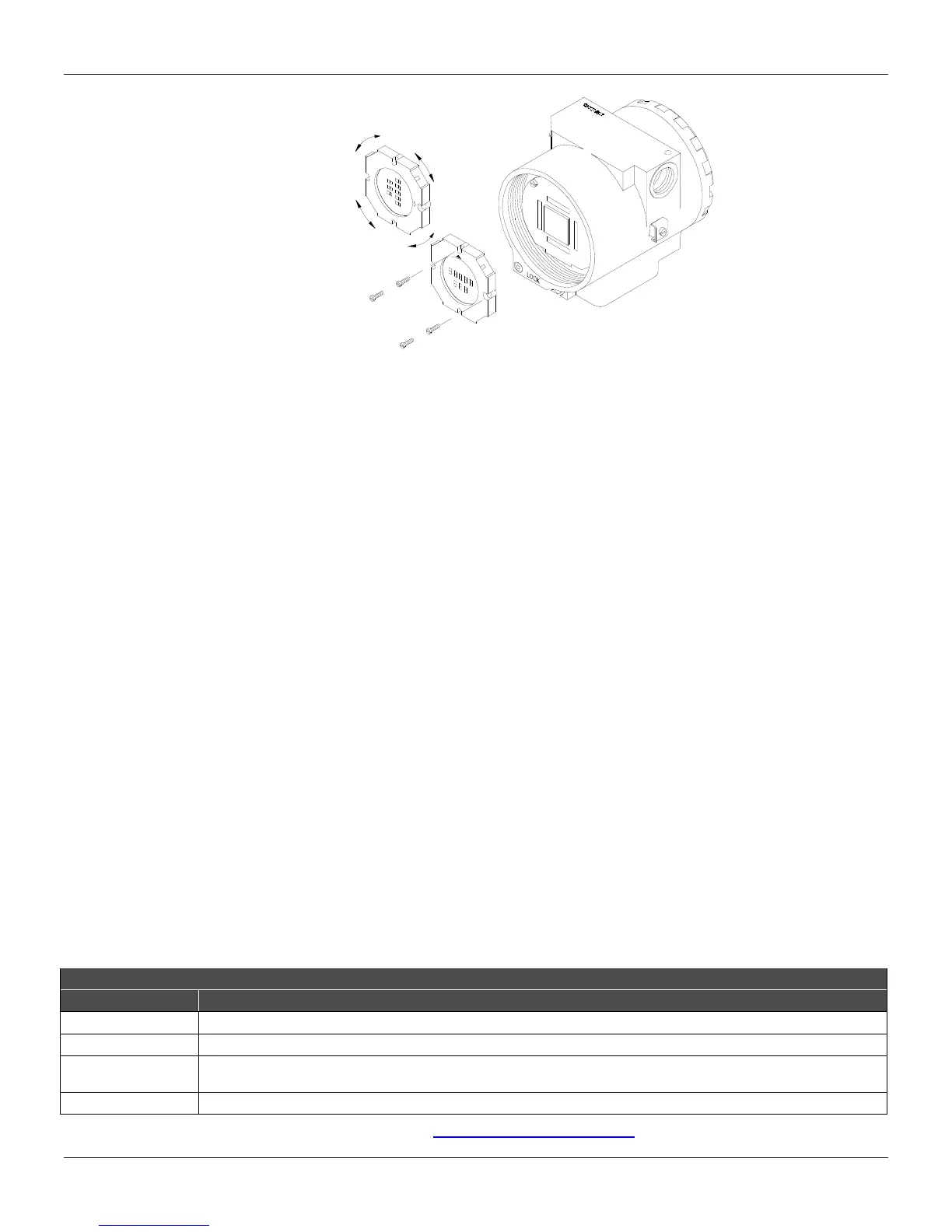

Figure 5.4 – Four Possible Positions of the Display
Interchangeability
In order to obtain an accurate and better temperature compensated response, each sensor is submitted
to a characterization process and the specific data is stored in an EEPROM located in the sensor body.
The main board, in this operation, reads the sensor serial number and compares it with the number
stored in the main board. In case they do not match, the circuit considers that the sensor has been
changed and will probe the memory of the new sensor for the following information:
 Temperature compensation coefficients.
 Sensor trim data, including 5-point characterization curve.
 Sensor characteristics: type, range, diaphragm material and fill fluid.
Information not transferred during sensor replacement will remain unchanged in the main board
memory. Thus, information such as Upper Value, Lower Value, Damping, Pressure Unit and replaceable
transmitter parts (Flange, O-ring, etc.) shall be updated, depending whether the correct information is
that of the sensor or the main board. In the case of a new sensor, the main board will have the most
updated information; in the opposite case, the sensor will have the correct information. Depending on
the situation, the updating shall be from one or the other.
Data transference from the main board to the sensor or vice versa can also be forced by function
MAINT/BACKUP/READ FROM SENSOR.
Returning Materials
Should it become necessary to return the transmitter and/or configurator to SMAR, simply contact our
office, informing the defective instrument serial number, and return it to our factory.
If it becomes necessary to return the transmitter and/or configurator to Smar, simply contact our office,
informing the defective instrument's serial number, and return it to our factory. In order to speed up
analysis and solution of the problem, the defective item should be returned with the Service Request
Form (SRF – Appendix B) properly filled with a description of the failure observed and with as much
details as possible. Other information concerning to the instrument operation, such as service and
process conditions, is also helpful.
Instruments returned or to be revised outside the guarantee term should be accompanied by a purchase
order or a quote request.
ACCESSORIES
ODERING CODE DESCRIPTION
SD-1
Magnetic Tool for local adjustment.
Palm*
16 Mbytes Palm Handheld, Including HPC401’s initialization and installation software.
HPC401*
HART
®
HPI311 for the Palm, including the configuration package for the Smar and generic transmitters.
HPI311*
HART
®
interface.
*For equipment updates and HPC401 software, just check: http://www.smarresearch.com.
