LD301 - Operation and Maintenance Instruction Manual
4.8
Configuration [CONF]
This branch is common for both the Transmitter and the Controller modes. Configuration functions
affect directly the 4-20 mA output current and the display indication. The configuration options
implemented in this branch are the following:
Selection of the variable to be shown on Display 1 and on Display 2.
Working range calibration for the Transmitter and the Controller. Options With and Without
Reference are available.
Digital filter damping time configuration of the readout signal input.
Selection of the transference function to be applied to the measured variable.
Operational mode selection for the LD301: Transmitter or Controller.
Figure 4.6 shows branch CONF with the available options.

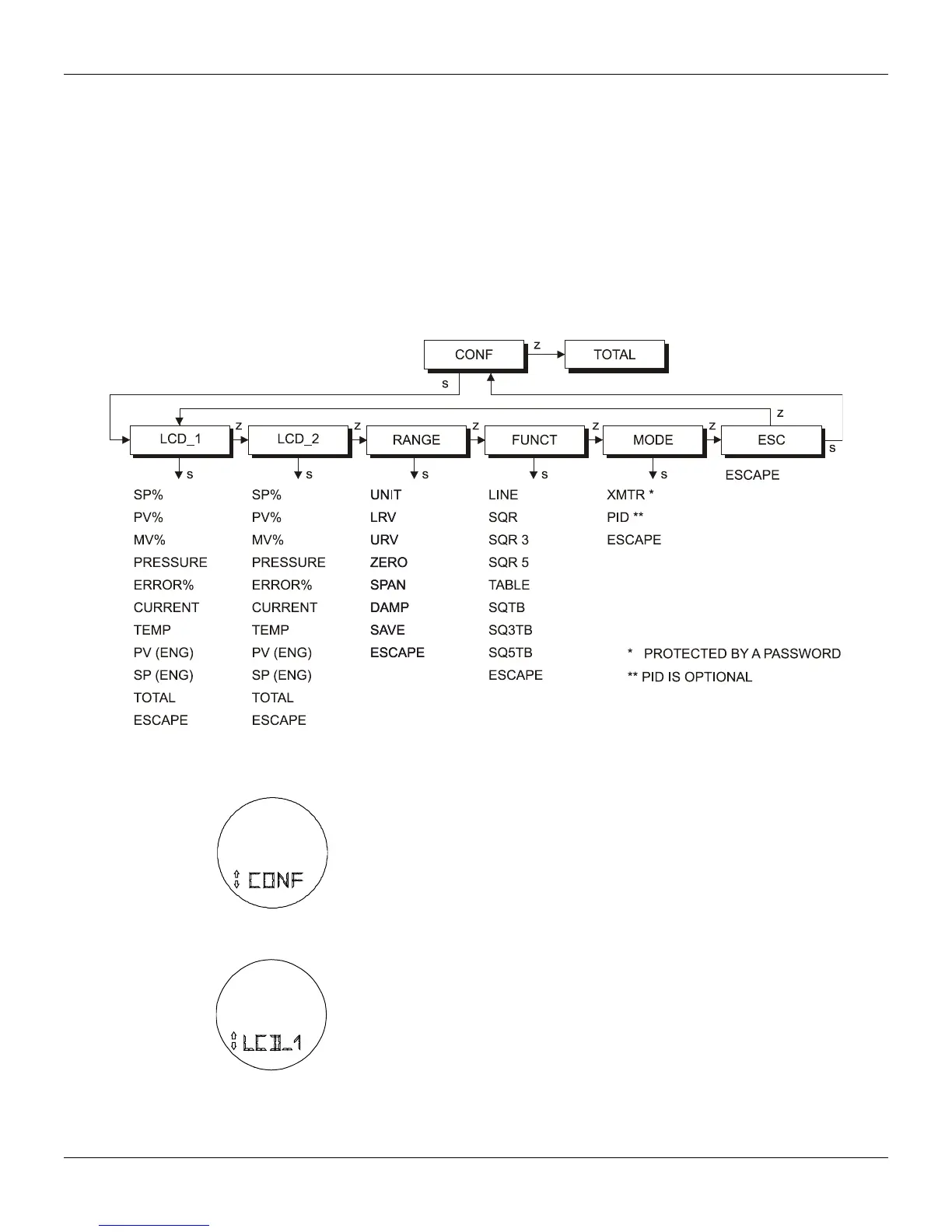

Figure 4.6 – Local Adjustment Configuration Tree
CONFIGURATION BRANCH (CONF)
Z: Moves to the TOTAL branch.
S: Enters the CONFIGURATION branch, starting with function display (LCD_1).
Display 1 (LCD_1)
Z: Moves to the function Display 2 (LCD_2).
S: Starts selection of variable to be indicated as primary display.
After activating (S), you can move around the options available in the following table by
activating (Z). See table 4.3.
The desired variable is activated using (S). Escape leaves primary variable unchanged.
