Programming Using Local Adjustment
4.7

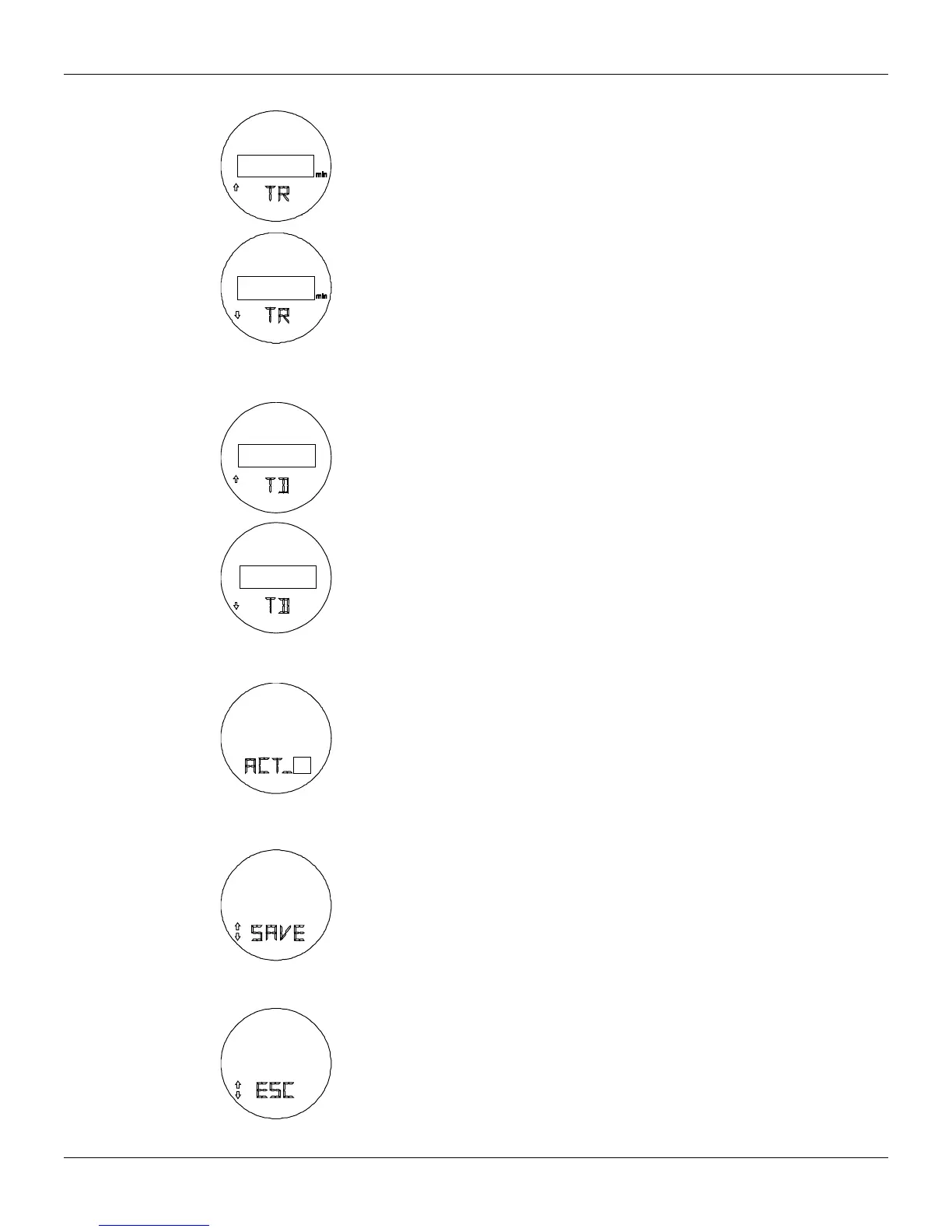

Tr - Adjust (TR)
Z: Moves to the INTEGRAL TIME DECREASE function.
S: Increases the integral time until the magnetic tool is removed or 999 minutes are
reached.
Z: Moves to the TD_ADJUSTMENT function, derivative time increase option.
S: Decreases the integral time until the magnetic tool is removed or 0 minutes is
reached.
Td - Adjust (TD)
Z: Moves to the DERIVATIVE TIME DECREASE function.
S: Increases the derivative time until the magnetic tool is removed or 999 seconds are
reached.
Z: Moves to the ACTION function.
S: Decreases the derivative time until the magnetic tool is removed or 0 seconds is
reached.
Action (ACT)
Z: Moves to the SAVE function.
S: Toggles the action direct to reverse or reverse to direct.
The far right character of the unit/function-field indicates the present mode:
D = direct action
R = reverse action
Save (SAVE)
Z: Moves to the ESCAPE to TUNING menu.
S: Saves the KP, TR and TD constants in the transmitter EEPROM.
Escape (ESC)
Z: Moves to the KP-ADJUSTMENT function.
S: Escapes to the MAIN menu.
