Operation
2.7

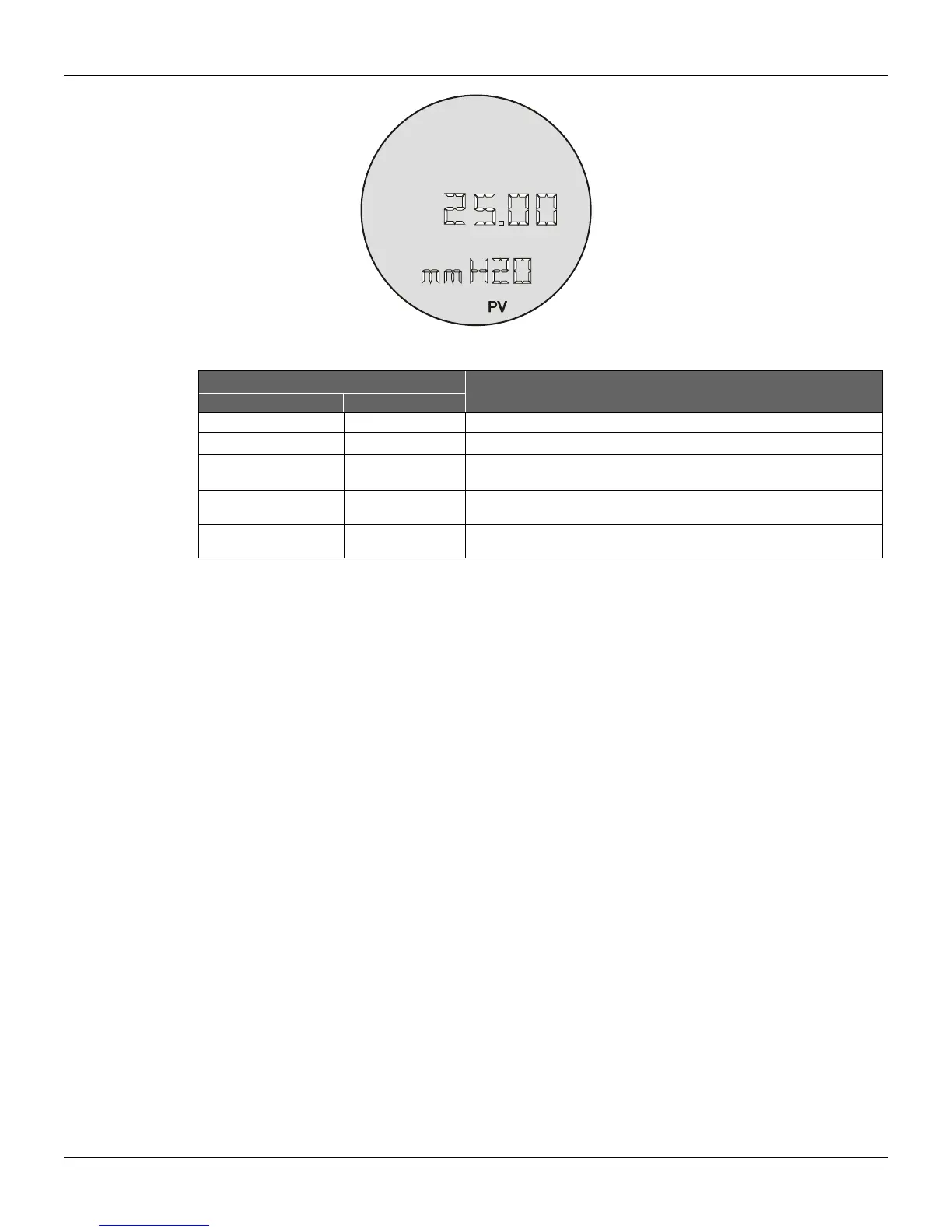

Figure 2.5 – Typical Monitoring Mode Display Showing PV, in this case 25.00 mmH
2
0
INDICATOR
DESCRIPTION
Numeric
Alphanumeric
Version LD301 The LD301 is initialized after feeding.
CHAR
The LD301 is on characterization mode (see Section 3 – TRIM).
Variable Value SAT / Unit
Output current saturated on 3.8 or 20.5 mA. (see section 5 –
Maintenance).
CH / CL alternating
with current.
SFAIL / Unit Failure on one sensor side or on both.
FAIL Init
Transmitter failed on initialization (sensor memory failure or
disconnected).
Table 2.1 – Messages Displayed
