Programming Using Local Adjustment
4.5

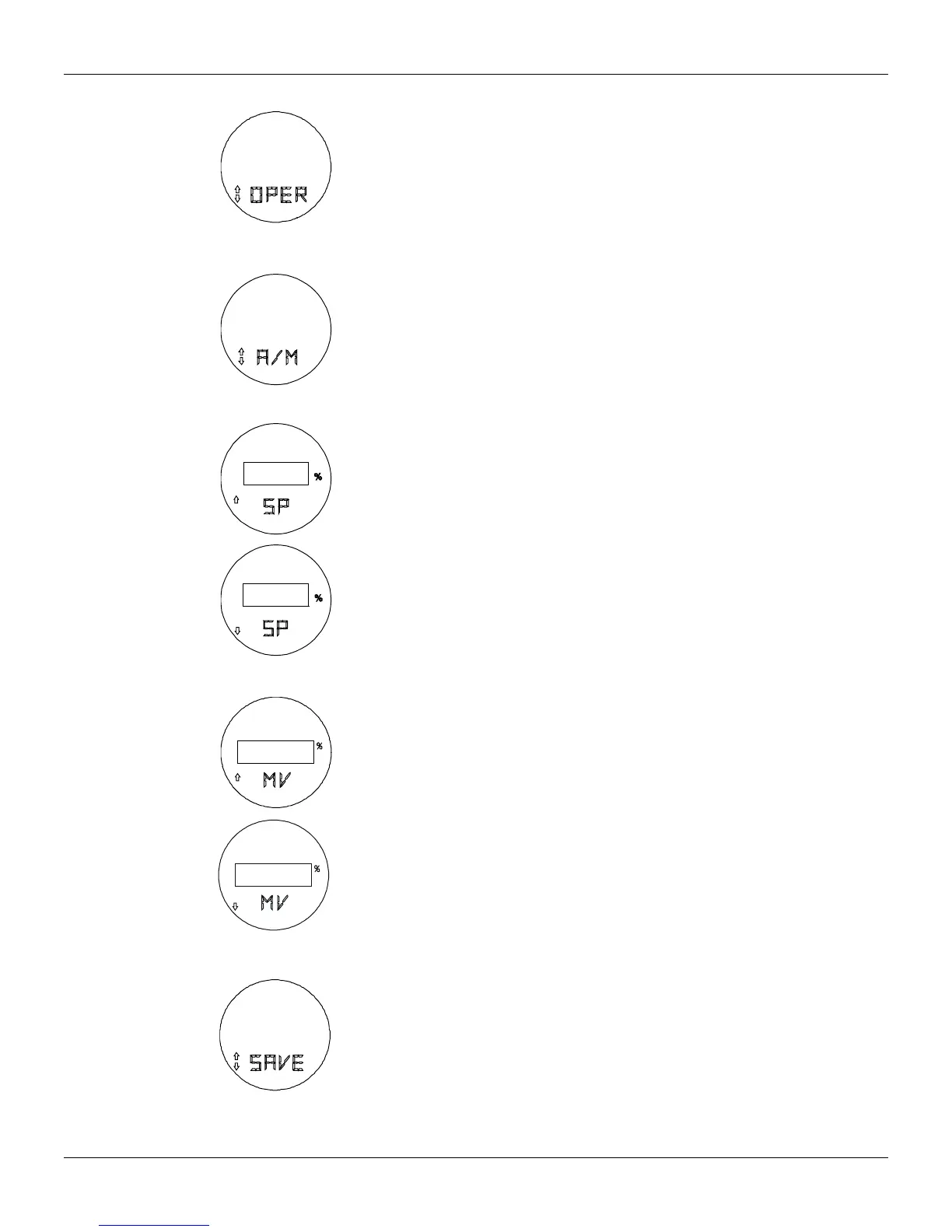

OPERATION BRANCH (OPER)
Z: Moves to the next branch (TUNE).
S: Enters the OPERATION branch, starting with function AUTO/ MANUAL.
Auto/Manual (A/M)
Z: Moves to the SETPOINT INCREASE function.
S: Toggles controller status, Automatic to Manual or Manual to Automatic. A and M
indicate status.
Setpoint Adjustment (SP)
Z: Moves to the SETPOINT DECREASE function.
S: Increases the setpoint until the magnetic tool is removed or 100% is reached.
Z: Moves to the MANIPULATED VARIABLE ADJUSTMENT function.
S: Decreases the setpoint until the magnetic tool is removed or 0% is reached.
Manipulated Variable Adjustment (MV)
Z: Moves to the MANIPULATED VARIABLE DECREASE function.
S: Increases the control output until the magnetic tool is removed or the upper output
limit is reached.
Z: Moves to the SAVE function.
S: Decreases the control output until the magnetic tool is removed or the lower output limit
is reached.
Save (SAVE)
Z: Moves to ESCAPE of the operation menu.
S: Saves the setpoint and Manipulated Variable in the transmitter EEPROM, for use as
power on SP and MV.
