103
Scope Multimeter Operations Operations
View Controls
Use the view controls to set display attributes.
z To adjust view controls:
1. Select Setup from the Scope Multimeter toolbar.
The Scope Multimeter Preferences dialog box opens.
2. Tap View to open a submenu.
Three types of adjustment are available on the submenu:
– Display—use to adjust what information displays and how it appears
– Layout—use to set how many and how the traces display on the screen
– Units—use to adjust time and voltage interval settings
Selecting from the submenu opens a dialog box for that item.
3. Make dialog box selections as needed.
4. Select OK to close the dialog box.
5. Select Back twice to close the Scope Multimeter Preferences dialog box.
Display Settings

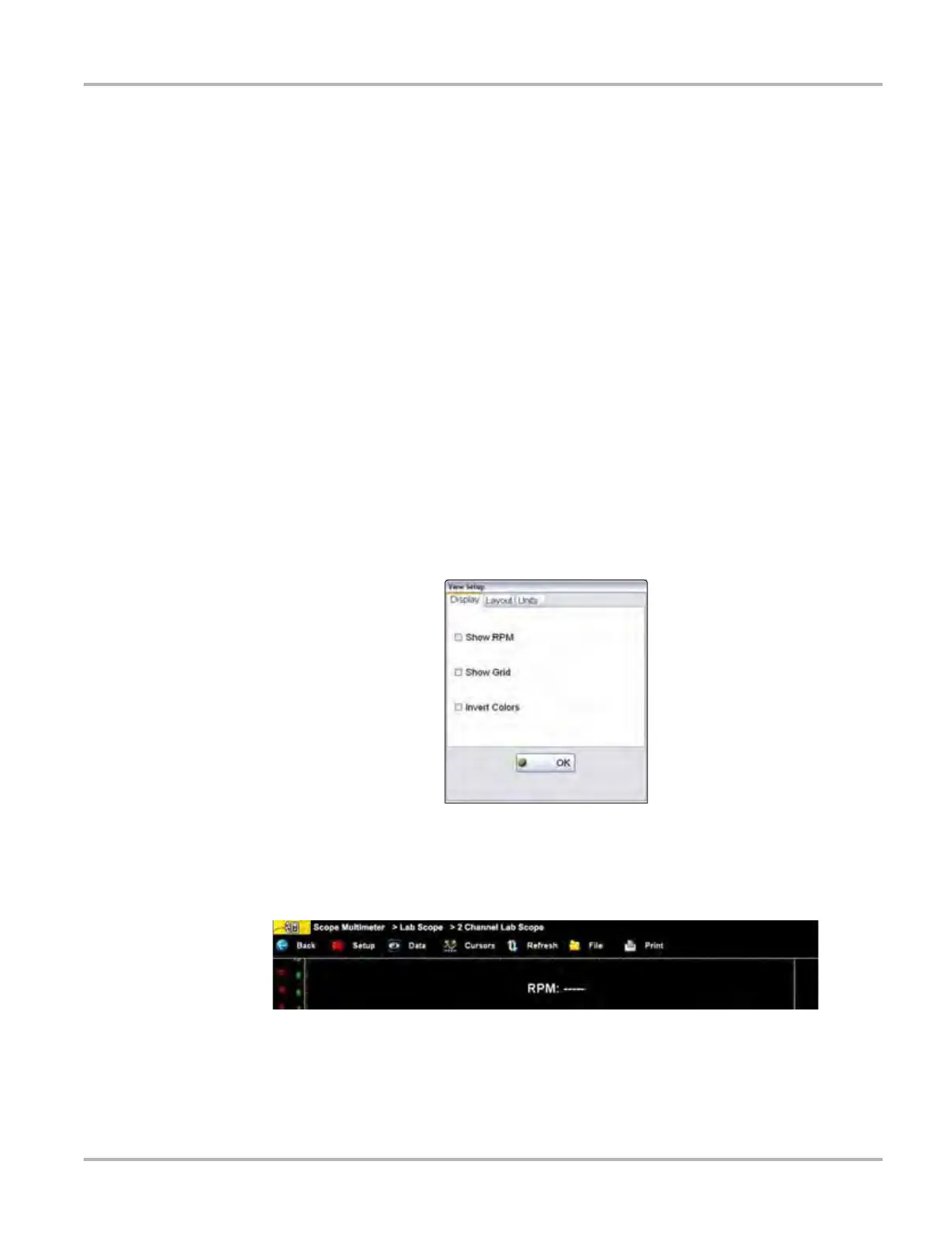

Selecting Display from the View submenu opens the Display dialog box (Figure 9-12).
Figure 9-12 Sample Display dialog box
The following options are available from the Display dialog box:
• Show RPM—adds a digital engine speed readout near the top of the screen (Figure 9-13).
Figure 9-13 Sample Show RPM selected
• Show Grid—switches grid lines on the screen off and on (Figure 9-14).
