ATyS / ATySr - 541630C - SOCOMEC

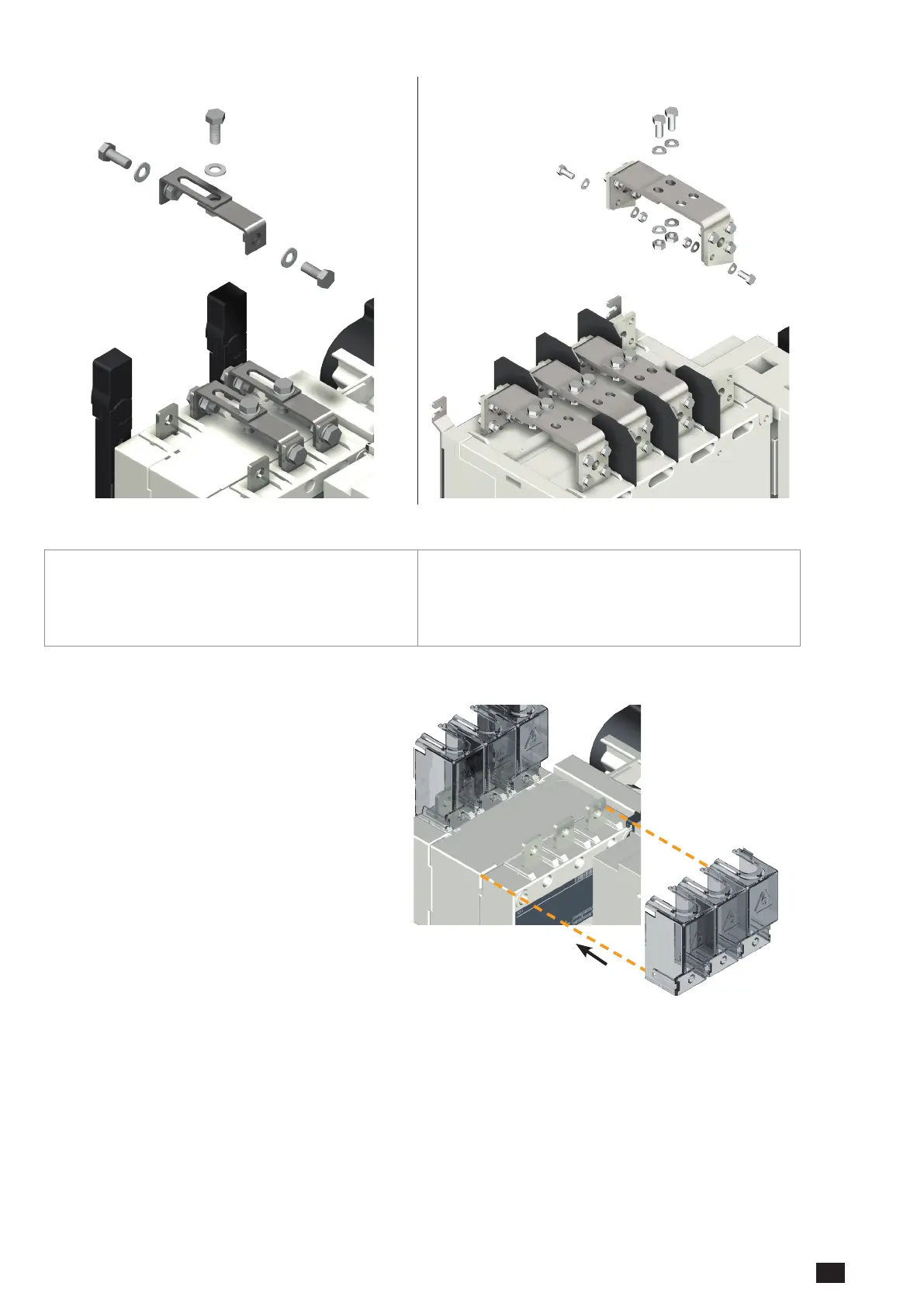

6.3.2. Bridging bar installation
125A to 630A 800A to 1600A
Itispossibletomountthebridgingbarsoneithersideoftheswitch
Recommended tightening torque:
M6: 4,5 N.m
M8: 8,3 N.m
M10: 20 N.m
M12: 40 N.m
Maximumtighteningtorque:
M6: 5,4 N.m
M8: 13 N.m
M10: 26 N.m
M12: 45 N.m
6.3.3. Terminal shrouds
Available from 125A to 630A
Frame B3 to Frame B5:
• Upstream, downstream, front or rear
mounting.
• Whenttedwithbridgingbarsonly
the front terminal shrouds are to be
installed.

socomec ATyS Specifications

General

Frequency	50/60 Hz
Operation	Automatic or Manual
Poles	3 or 4
Control Type	Manual
Standards	IEC 60947-6-1
Mounting	DIN rail
Control Voltage	24 VDC
Mechanical Durability	20, 000 cycles
