ATyS / ATySr - 541630C - SOCOMEC

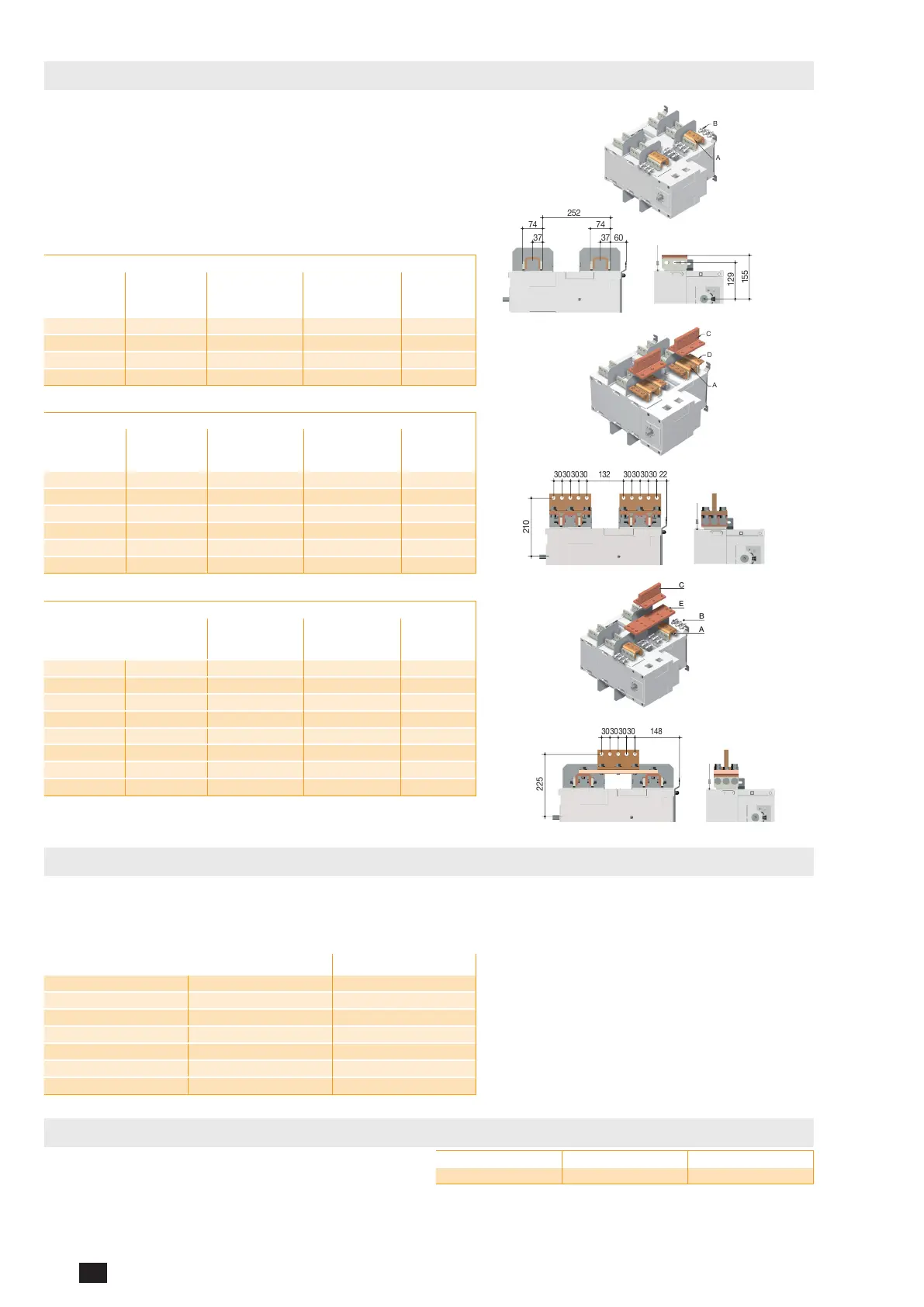

12.4. Copper bar connection kits
B
A
30 3030 30 132 3030 30 30 22
210
D
A
C
C
E
B
A
30 3030 30 148
225
252
74
37
74
37 60
129
155
Use
Enables:
- connection between the two power
terminals of the same pole for 2000 to
3200Aratings(Fig.1andFig.2)
-toporbottombridgingconnection(Fig.3).
For 3200 A rating, the connection pieces
(partA)aredeliveredbridgedfromfactory.
Bolt sets must be ordered separately. The user
manual for these specific accessories can be
downloaded from www.socomec.com.
Toporbottomflatconnection-Fig.1
Rating(A) Framesize Piece
Quantity to order
per pole
(1)
Reference
2000…2500 B8 Connection - part A 2
2619 1200
2000…2500 B8 Bolt set - part B 2
2699 1200
3200 B8 Connection - part A included
3200 B8 Bolt set - part B 2
2699 1200
Toporbottomedgewiseconnection-Fig.2
Rating(A) Framesize Piece
Quantity to order
per pole
(1)
Reference
2000…2500 B8 Connection - part A 2
2619 1200
2000…2500 B8 T piece - part C 2
2629 1200(2)
2000…2500 B8 Bracket-partD 2
2639 1200(2)
3200 B8 Connection - part A included
3200 B8 T piece - part C 2
2629 1200(2)
3200 B8 Bracket-partD 2
2639 1200(2)
Toporbottombridgingconnection-Fig.3
Rating(A) Framesize Piece
Quantity to order
per pole
(1)
Reference
2000…2500 B8 Connection - part A 2
2619 1200
2000…2500 B8 Bolt set - part B 2
2699 1200
2000…2500 B8 Bar - part E 1
4109 0320(2)
2000…2500 B8 T piece - part C 1
2629 1200(2)
3200 B8 Connection - part A included
3200 B8 Bolt set - part B 2
2699 1200
3200 B8 Bar - part E 1
4109 0320(2)
3200 B8 T piece - part C 1
2629 1200(2)
(1) Example for 3 pole device equipped upstream only: Order 3 times the indicated quantities.
(2) Bolt set is provided with the accessories.
Fig. 1
Fig. 2
Fig. 3
12.5. Solid neutral
Use
The connection kit enables the connection between the input and output
neutrals, without any need to switch the neutral.
Rating(A) Framesize Reference
125…200 B3
9509 0012
200…315 B4
9509 0025
400 B4
9509 0040
500…630 B5
9509 0063
800…1000 B6
9509 0080
1250 B6
9509 0120
1600 B7
9509 0160
12.6. Autotransformer 400/230 VAC
Use
For applications without neutral, this autotransformer
provides the 230 VAC required to power these ATyS
products.
Rating(A) Framesize Reference
125…3200 B3…B8
1599 4064
