socomec ATyS User Manual

33
EN
ATyS / ATySr - 541630C - SOCOMEC

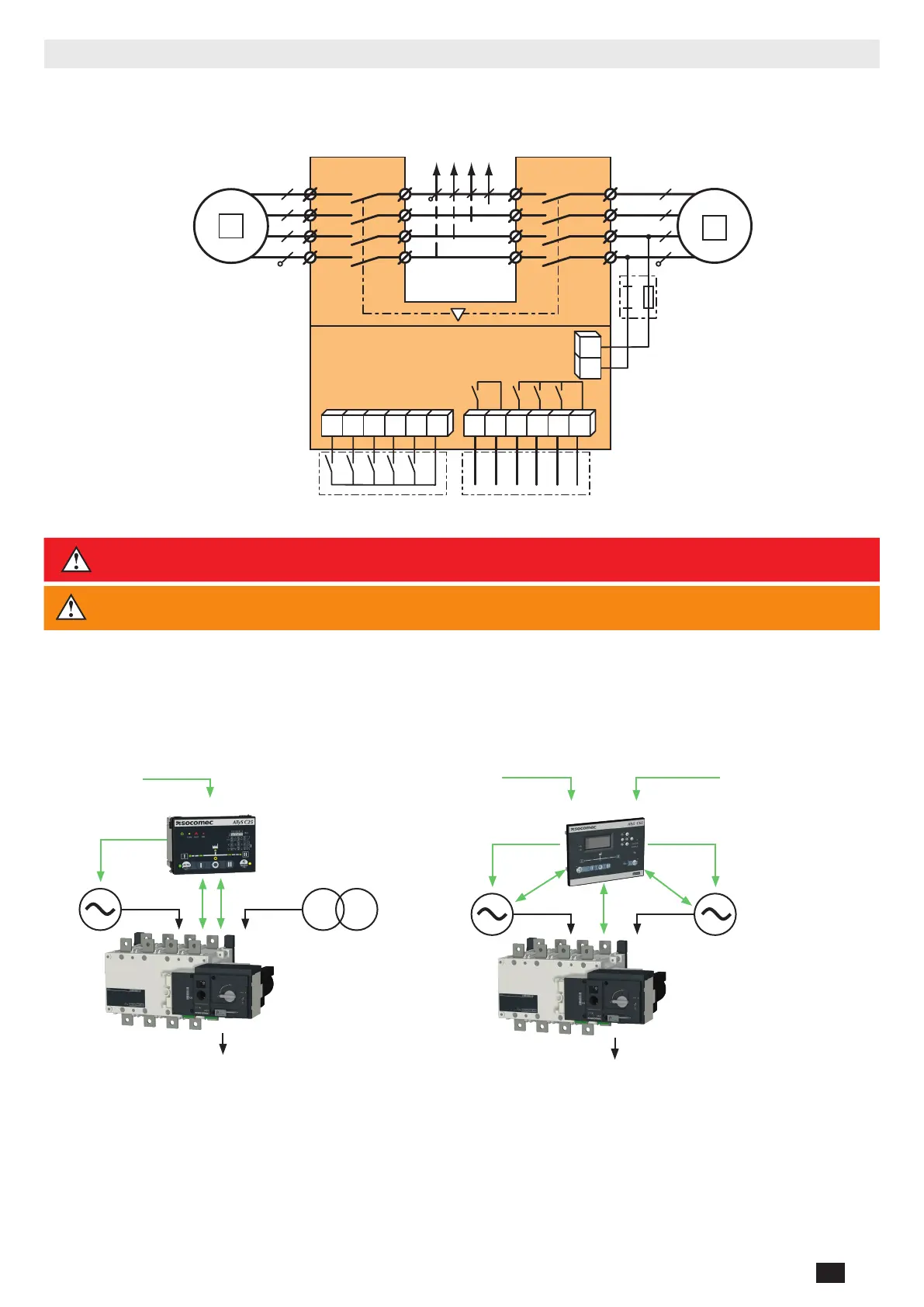

7.2. Control circuits
7.2.1. Typical ATySr wiring
Example:Controlwiringfora400VACapplicationhavinga3phaseandneutralsupply.
1
2
301 3022
312313 314315 316317 63A64A 24 14 04 13
CONTROL OUTPUTS
ATySg Voltage Sensing
and Power supply Kit
(excludes the need for
fuses F1 & F2
Control Inputs from :
• Remote pushbuttons
• PLC Controller
• ATS controller
Fus. 4A
type gG
DANGER
Do not handle any control or power cables connected to the ATyS when voltage may be
present.
CAUTION
Verify that the Auxiliary power supply feeding terminals 301 and 302 are within the limits of
208VAC -> 277VAC ±20% (166-332VAC).
7.2.2. ATySr RTSE + ATS Controllers type ATyS C25 and ATyS C55/C65
Refer to the relevant ATS controller instruction manual for ATyS C25 and ATyS C55/65 details
ATyS C25




 Measurement and
power supply
 Control and
position information
feedback
 Generating set
«start/stop»
DCpowersupply
(optional)
 U+F metering for each genset
 Control and position information
feedback
Generatingset«start/stop»
control
External«start/stop»command
for basic cycle
DCpowersupply(optional)
ATyS C55/C65
 


 

socomec ATyS Specifications

General

Frequency	50/60 Hz
Operation	Automatic or Manual
Poles	3 or 4
Control Type	Manual
Standards	IEC 60947-6-1
Mounting	DIN rail
Control Voltage	24 VDC
Mechanical Durability	20, 000 cycles
