socomec ATyS User Manual

38
EN
ATyS / ATySr - 541630C - SOCOMEC

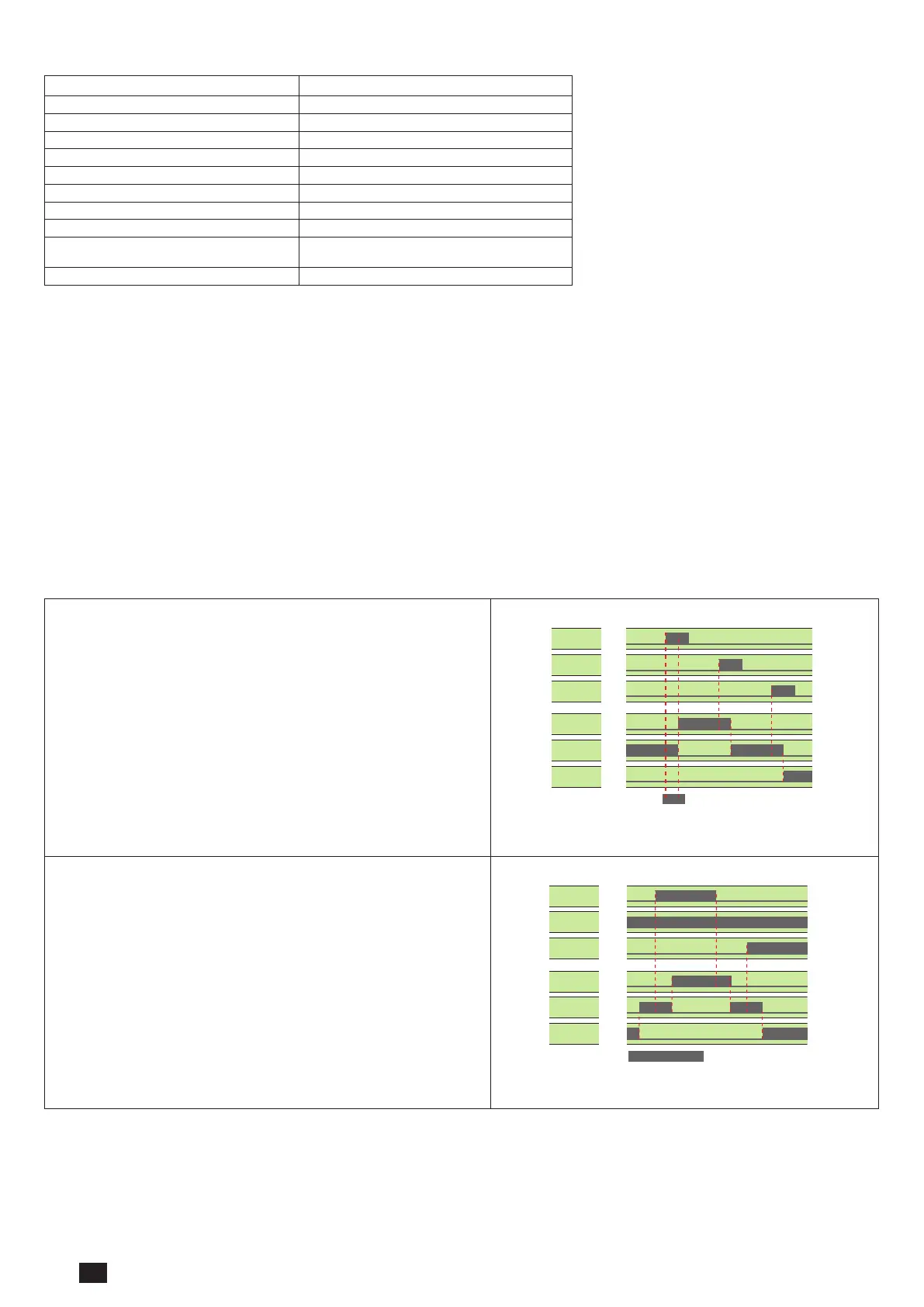

8.2.2.2. Technical data
MOTORISATION MODULE
Input Qty 5
DirectCurrentIin 0.35 to 0.5mA
Line resistance 1kΩ
Line length 100m(Min.wire1.5mm²#16AWG)
Pulse duration 60ms
Power per Input 0.06VA
SurgeprotectionVin_sg 4.8kV(1.2/50µssurge)
ESDwithstandvoltage(Contact/air) 2/4kV
Insulation(Commonmode) 4.8kVAC
(BetweenI/Pandallcommonparts)
Terminal connector 1.5mm²minimum/2.5mm²max
8.2.2.3. Remote control logic
RemoteswitchingoperationcanbedriveninAUTmodebyexternalvoltfreecontactsasdescribedaboveusinginput
contacts 312 to 317.
DependingonthewiringcongurationtherearetwotypesoflogicthatmaybeappliedtotheATySr.
• Impulse logic or
• Contactor logic.
In remote control, the ATySrinputsgiveprioritytoordersIandIIover0thereforecontactorlogiccanbeimplementedby
simply bridging terminals 316 and 317.
(NOTE:312–317closed/ForceATySrtoOFFPosition,takespriorityoverallotherordersnomatterofthecontrollogic
used.)
Impulselogic:
The ATySrisdriventoastableposition(I–O–II)afterreceiving
an impulse order.
• A switching command of at least 60 ms is necessary to
initiate the switching operation.
• Orders I and II have priority over order 0.
Note:Thelogicdiagramsexcludethetransfertimes.
Imp.≥60ms
order I
position I
order 0
position 0
order II
position II
Impulse logic
(Note:Excludespositionswitchingdelays)
ContactorLogic:
The ATySrisdriventoaspecicposition(IorII)foraslongas
the order is maintained.
• OrderOismaintained.(Bridge316–317)
• Orders I and II have priority over order 0.
• Orders I and II have equal priority.
(1st order received is held until no longer maintained).
• If order I or II disappears, the device returns to zero position.
(With the power supply available).
maintened
order I
position I
order 0
position 0
order II
position II
Contactor logic
(Note:Excludespositionswitchingdelays)
