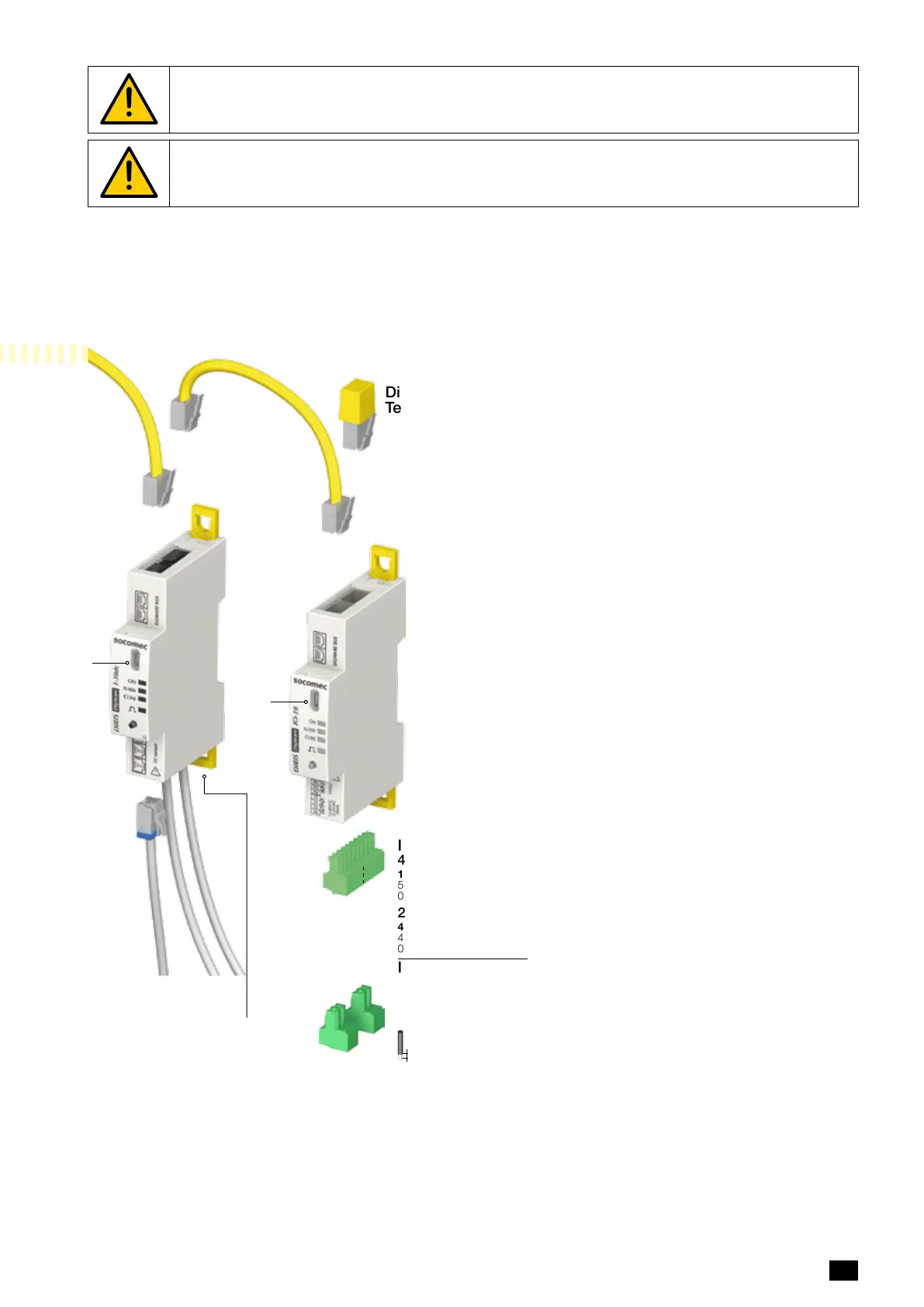

Do not connect RJ12 sensor cable to Digiware Bus connector to avoid any risk of mechanical
damage of this connector.
The U500dc, U1000dc, U1500dc voltage adapters must be connected only to a U-32dc module.
IO-10
4x digital inputs
12VDC-3mA max.
5 screw connections,
0.25Nm max.
2x digital outputs
48VDC-50mA max.
4 screw connections,
0.25 Nm max.
IO-20
2x analogue inputs
0/4-20mA
4 screw connections,
0.25Nm max.
solid 0.14mm
2
-> 1.5mm
2
stranded 0.14mm
2
->
1.5mm
2
7 mm
Digiware Bus
Termination
DIRIS
DigiwareIO
Inputs /
Outputs
DIRIS
Digiware
I-3xdc
DC Current
inputs (3I)
(1)
(1)
OUT
IN
I-3xdc
3x Current
sensors inputs
