61
Electrical Connection

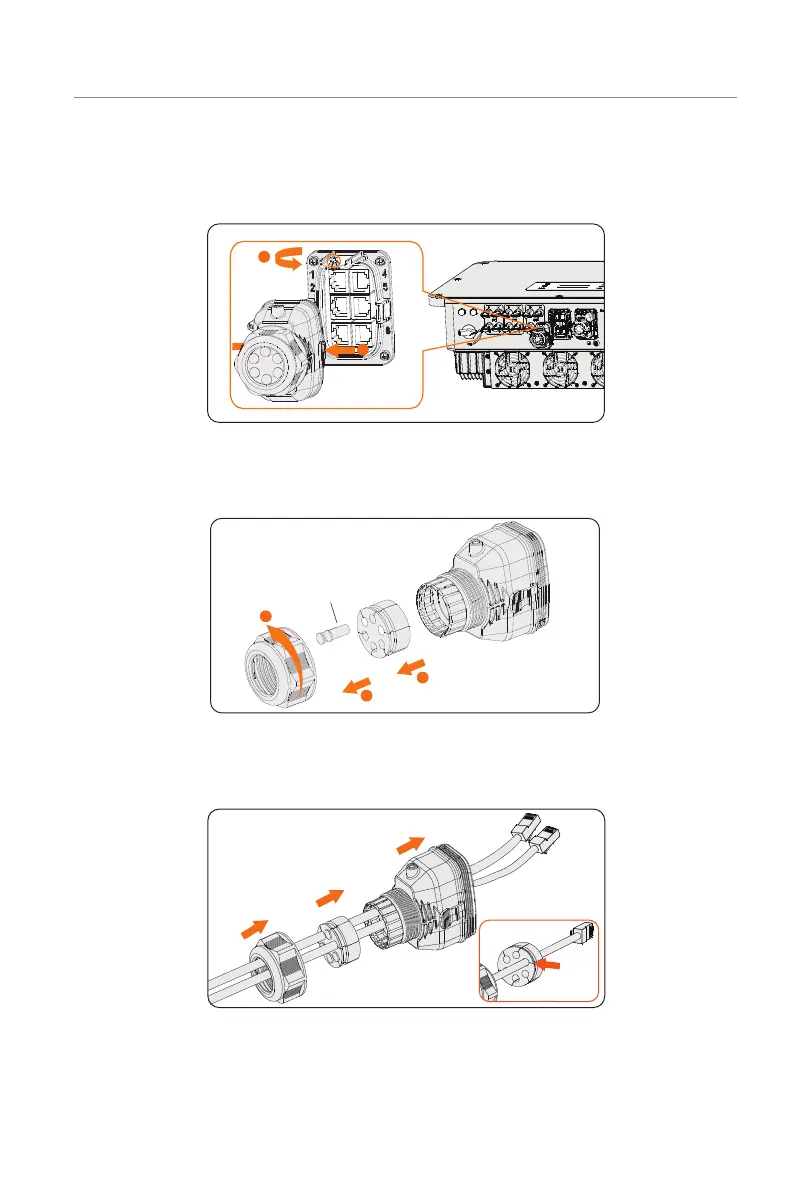

Parallel connection wiring procedure
Step 1: Loosen the screws on the COM 1 terminal. Pinch the tabs on the sides of the
COM 1 connector enclosure and pull it at the same time to disassemble it.
1
2
Figure 7-35 Removing the connector enclosure
Step 2: Anti-clockwise loosen the swivel nut and pull out the sealing plugs. Keep them
still in the cable support sleeve if you choose not to connect the cable.
Remove
1
2
3
Figure 7-36 Disassembling the connector
Step 3: Thread the cable through the swivel nut, cable support sleeve, and connector
enclosure in sequence.
Figure 7-37 Threading the cables
Step 4: Install the network cables to Parallel-1 and Parallel-2 of cable fixture according to
the labeling.
To Next Page
