Bottom View
This topic describes the location and function of parts on the bottom of the unit.

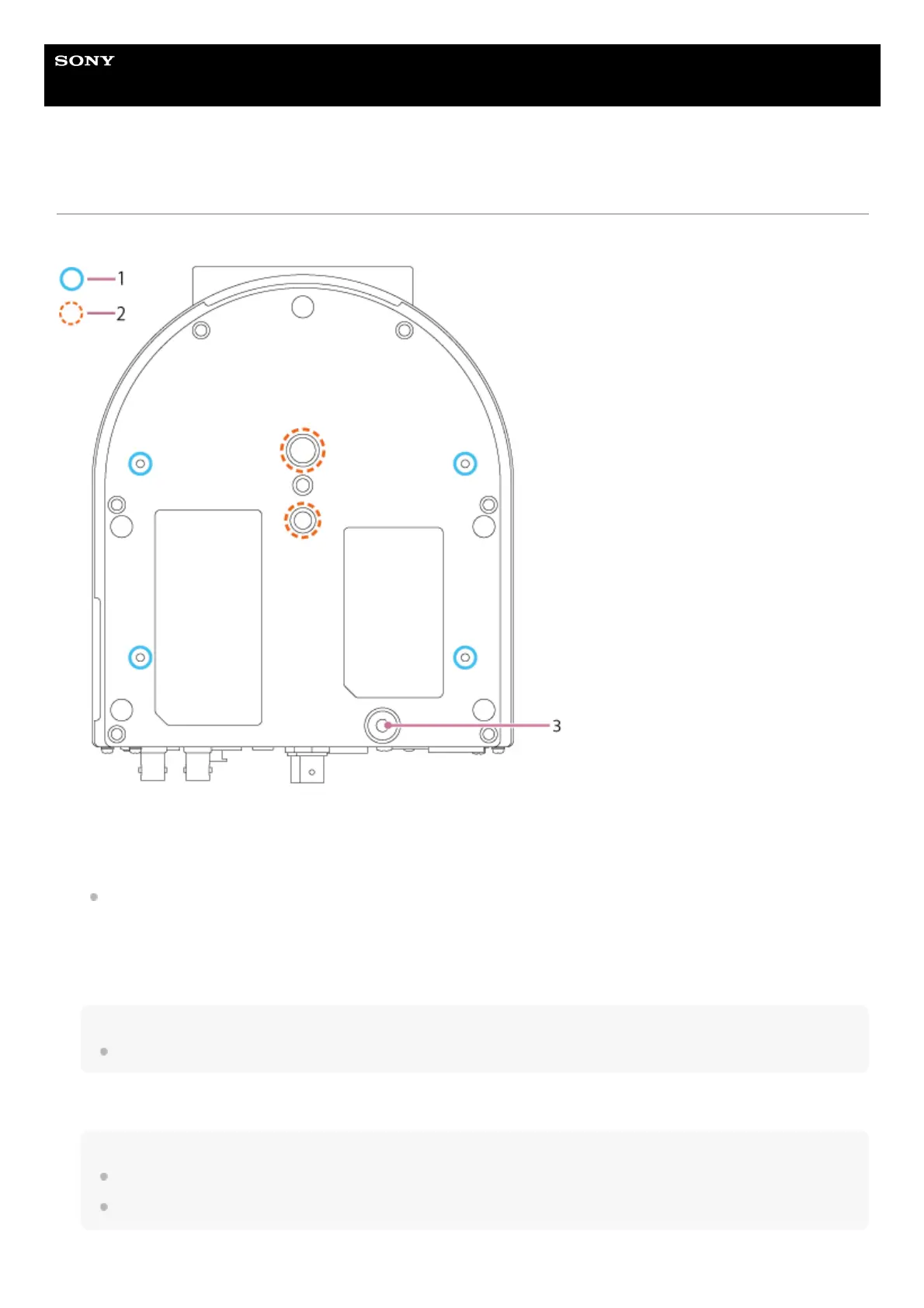

Ceiling bracket (A) mounting screw holes (4 places, 5.5 mm (7/32 inch) effective thread depth)
When mounting the unit on a ceiling or a shelf in a high location, attach the supplied ceiling bracket to the screw holes
using the four supplied screws.
For details about mounting, see “Mounting Upright in a High, Fixed Location” and “Mounting on a Ceiling.”
1.
Tripod mounting screw holes (1/4 inch, 3/8 inch)
Compatible with 1/4-20 UNC screws and 3/8-16 UNC screws. Attach to a tripod (option, screw length of 5.5 mm (7/32
inch) or less).
Note
Do not use screws longer than 5.5 mm (7/32 inch). Doing so may cause a malfunction.
2.
Fall prevention wire rope mounting screw.
Note
Attach the supplied wire rope and screws.
Do not attach the screws without attaching the wire rope.
3.
