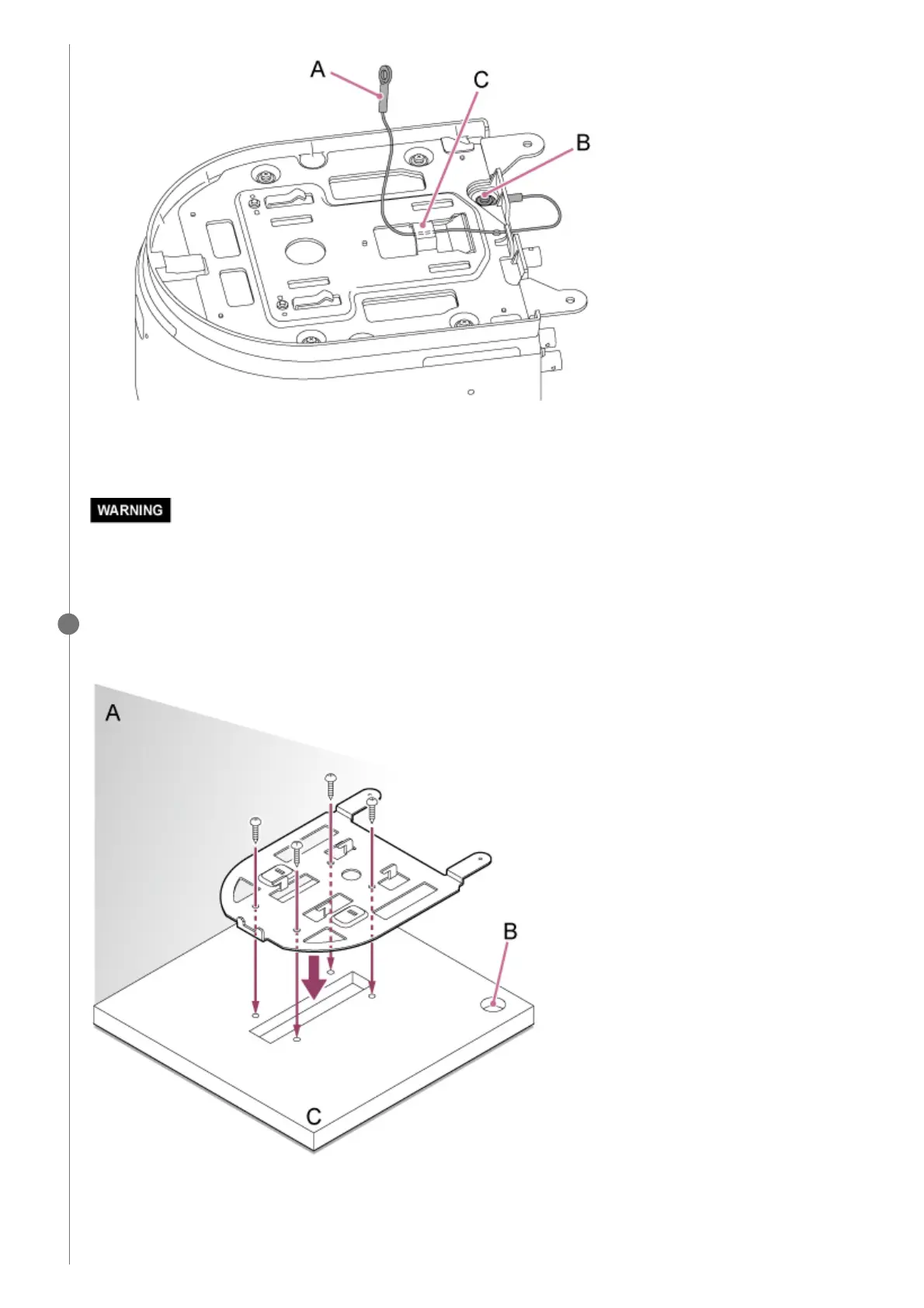

A: Supplied wire rope
B: Supplied screw (M4×8)
C: Wire rope metal loop
Use the supplied screw. The use of a screw other than the supplied screw may reduce the effectiveness of the wire rope
function.
Attach the ceiling bracket (B) to the surface, such as a shelf, where the unit will be mounted.
Mounting screws are not supplied.
A: Wall
B: Hole for connection cables
C: Shelf or other mounting surface
The arrow direction indicates the front of the camera. Adjust the camera orientation so that it faces forward.
4
