A: Ceiling bracket (A) attached to the unit
B: Ceiling bracket (B)
C: Align the edges

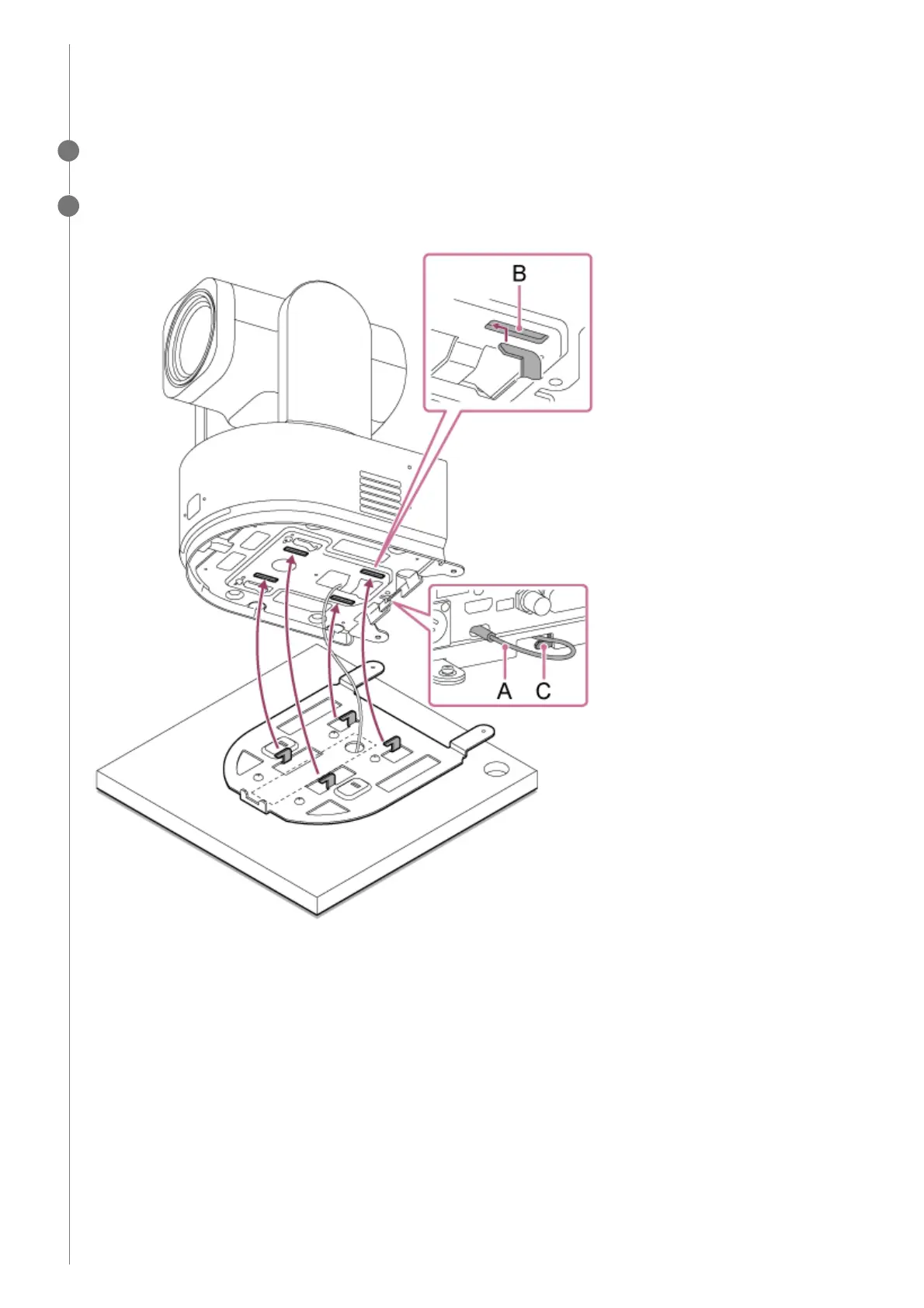

Insert the protrusions of ceiling bracket (B) into the holes (4 places) of ceiling bracket (A).
7
Hook the fall prevention wire rope around the wire rope protrusion of ceiling bracket (A), push the unit in the
direction shown in the illustration approximately 10 mm to temporarily secure it in place.
A: Fall prevention wire rope
B: Protrusion insertion holes (4 places)
C: Wire rope protrusion
8
To Next Page
