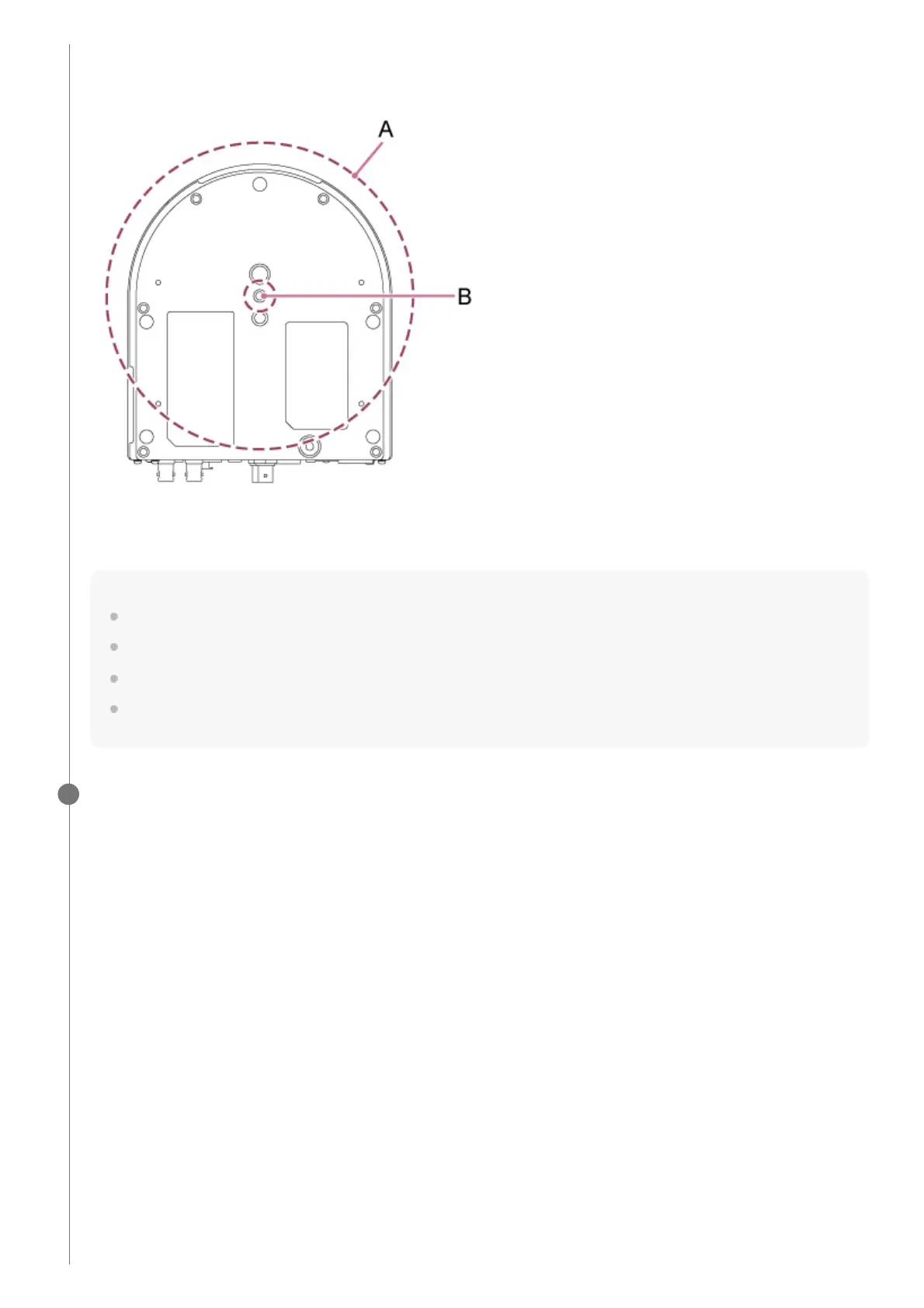

Refer to the following drawing when determining the mounting location and direction, taking into consideration the space
required for turning the lens and the wiring at the rear of the unit.
A: Camera head range of movement (ø199 mm)
B: Mounting wire rope feed hole (ø20 mm)
Note
Mount on a ceiling (such as concrete) with sufficient strength.
To mount the unit on a ceiling with insufficient strength, provide sufficient reinforcement.
Mount it in a stable location that is not subject to vibration. Locations subject to vibration may cause vibration in the image.
If the unit must be mounted on an inclined surface, keep it within ±15° of the horizontal and take measures to prevent the unit
from falling.
Attach ceiling bracket (A) to the bottom of the unit using the four supplied screws (M3×8).
2
