Sony DNW-A220 - Page 13

1-5
DNW-A220
DNW-A220P
FemaleMale
(External View) (External View)
(External View)
(External View)
15
96
(External View)
6 REMOTE (9P Female)
Pin No. Signal
1 GND
2 RM TX (_)
3 RM RX (_)
4 GND
5 PRIORITY
6 GND
7 RM TX (+)
8 RM RX (+)
9 GND
!\ DC IN (4P Male)
Pin No. Signal
1 GND
2NC
3NC
4 EXT DC
7 DC OUT (4P Female)
Pin No. Signal
1 UNREG GND
2NC
3NC
4 UNREG +12 V
1 AUDIO INPUT (3P Female)
9 AUDIO OUTPUT (3P Male)
!- MONITOR OUTPUT (3P Male)
Pin No. Signal
1 GND
2X
3Y

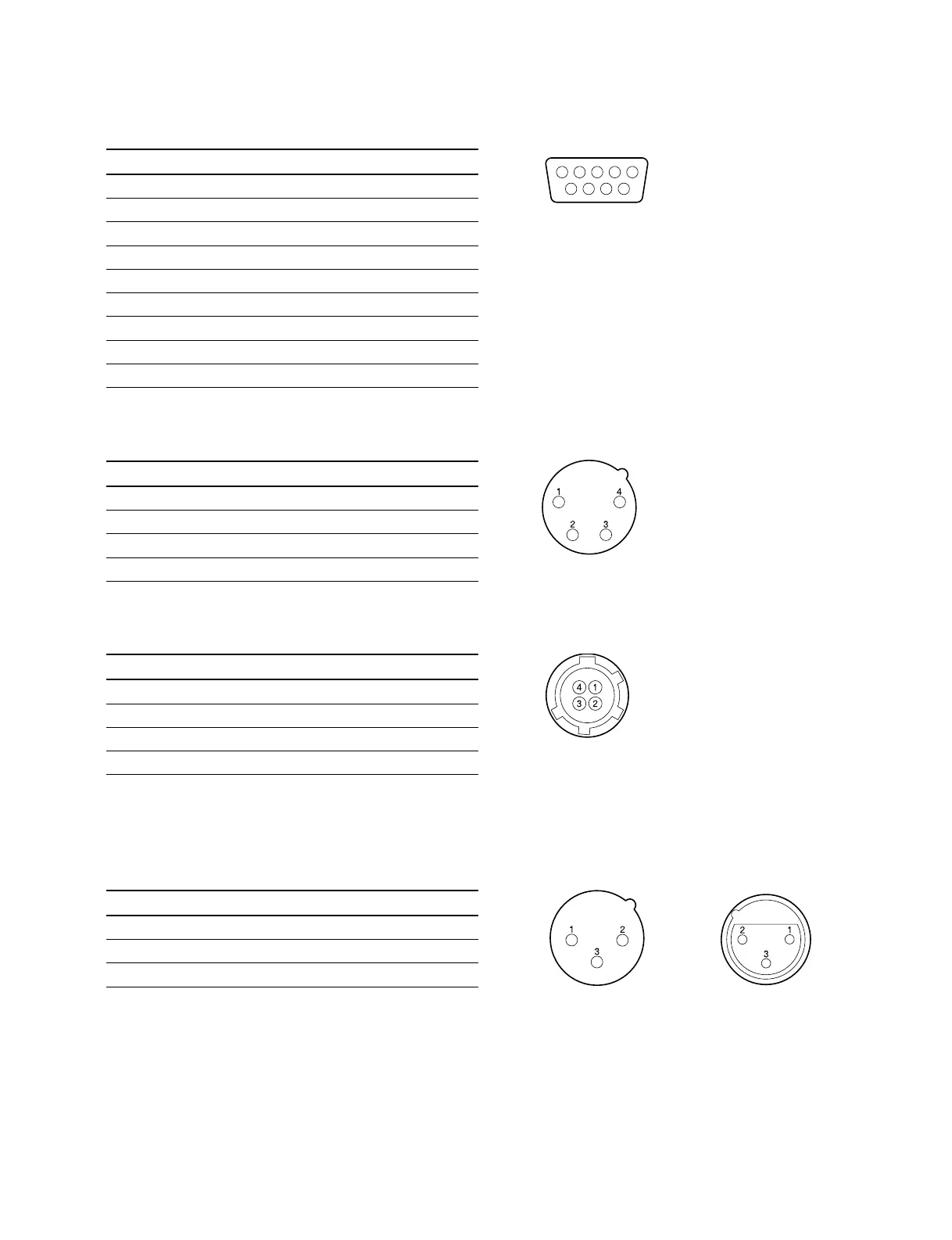

1-3. Connector Input/Output signals
