Sony DNW-A220 - Page 14

1-6
DNW-A220
DNW-A220P
12345

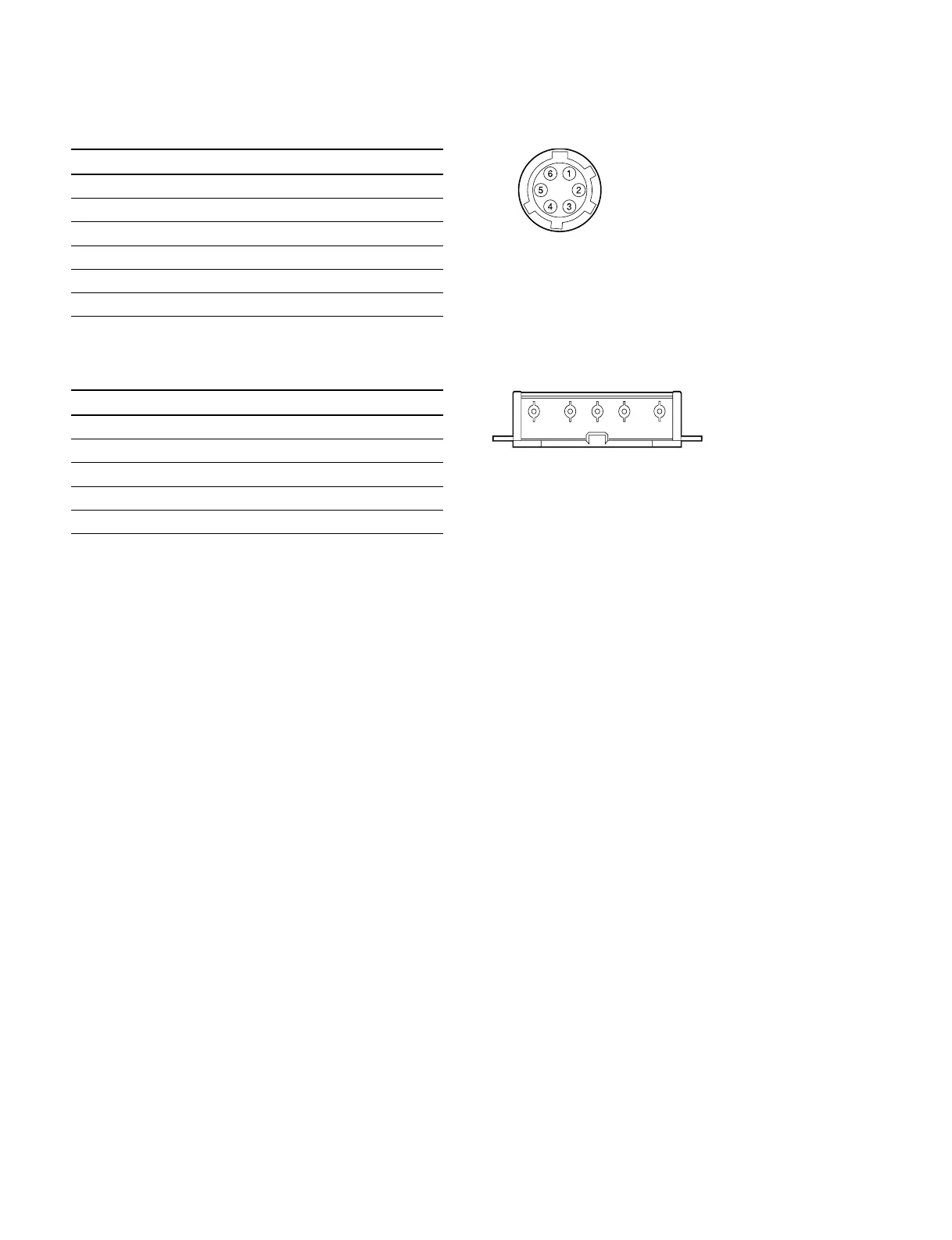

(External View)
(External View)
![ AUX (6P Female)
Pin No. Signal
1 COM RX
2 COM TX
3 REG GND
4 CTS
5 RTS
6NC
BATTERY IN (5P)
Pin No. Signal
1 BATT (_)
2 BATT ID DET
3 BATT REM
4 LIGHT CONT
5 BATT (+)
1-3. Connector Input/Output signals
