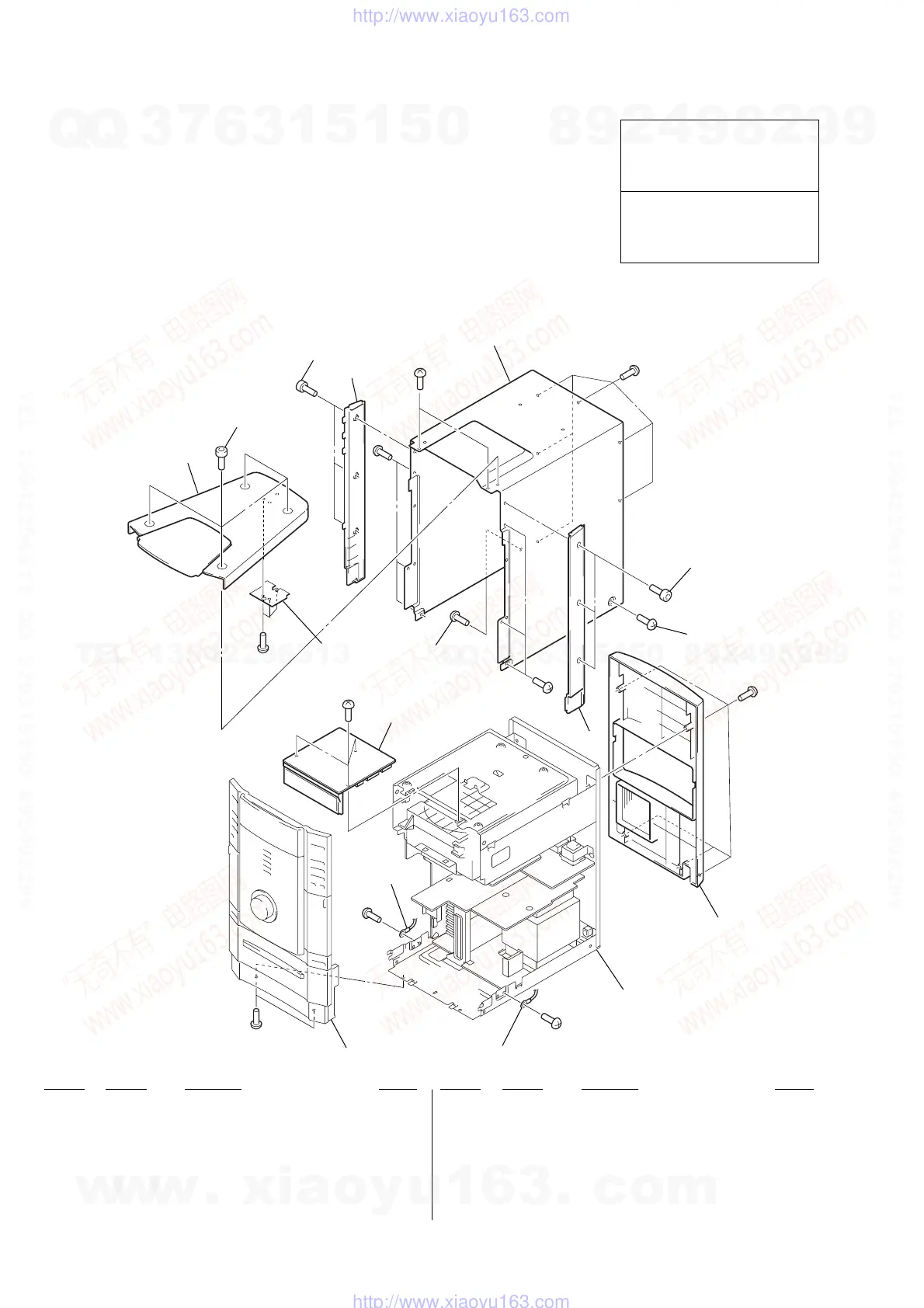

9-1. CASE SECTION
SECTION 9
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• Accessories are given in the last of the elec-
trical parts list.
• Abbreviation
CND : Canadian model
EA : Soudi Arabia model
KR : Korean model
MX : Mexican model
SP : Singapore model
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 A-4730-252-A GC BOARD, COMPLETE (US, CND)
1 A-4731-167-A GC BOARD, COMPLETE (EXCEPT US, CND)
2 4-238-964-01 PANEL, TOP (EXCEPT US)
2 4-238-964-11 PANEL, TOP (US)
3 4-232-226-01 SCREW, HEXAGON SOCKET TAPPING
4 4-230-228-01 SCREW (TOP)
5 4-238-969-01 PANEL (A), SIDE
6 4-239-007-01 CASE (EXCEPT US, CND, AEP, UK)
6 4-239-007-31 CASE (US, CND, AEP, UK)
7 3-363-099-11 SCREW (CASE 3 TP2)
8 4-238-970-01 PANEL (B), SIDE
9 4-238-967-11 COVER, BACK
#1 7-685-646-79 SCREW +BVTP3X8 TYPE2 IT-3
#2 7-685-872-09 SCREW +BVTT3X8 (S)
1
2
3
4
4
5
6
7
7
8
9
not supplied
not supplied
front panel section-1
chassis section-1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#2
not supplied
