130
HCD-FL7D

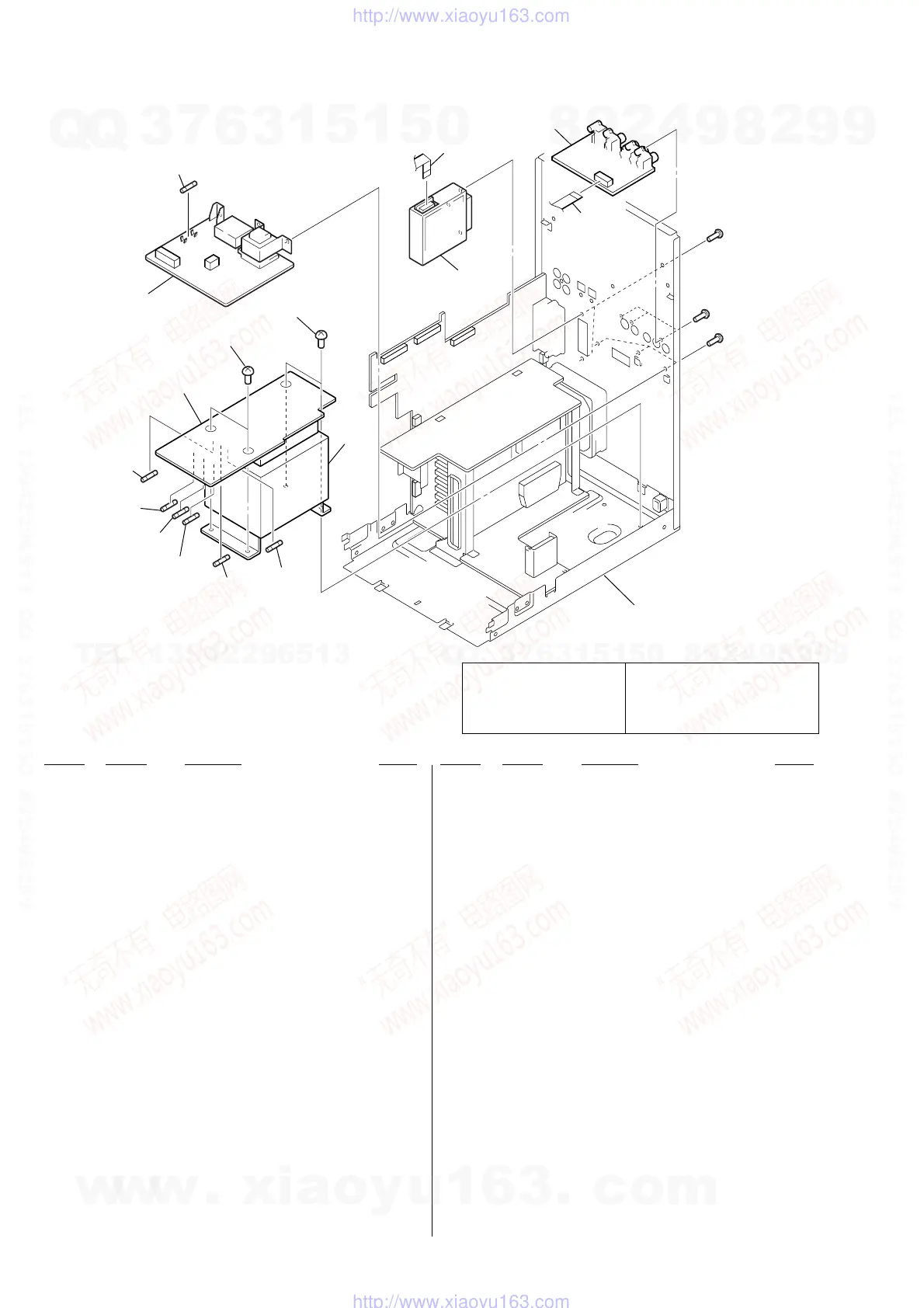

9-7. CHASSIS SECTION-2
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
351 1-684-692-11 VIDEO BOARD
352 1-792-099-11 WIRE (FLAT TYPE) (17 CORE)
353 1-590-218-11 WIRE (FLAT TYPE) (11 CORE)
(EXCEPT AEP, UK)
353 1-773-012-11 WIRE (FLAT TYPE) (15 CORE) (AEP, UK)
354 A-4676-812-A TRANS BOARD, COMPLETE (US, CND)
354 A-4676-835-A TRANS BOARD, COMPLETE (AEP, UK)
354 A-4730-184-A TRANS BOARD, COMPLETE (SP)
354 A-4730-186-A TRANS BOARD, COMPLETE (KR)
354 A-4730-188-A TRANS BOARD, COMPLETE (MX)
354 A-4730-190-A TRANS BOARD, COMPLETE (EA)
355 4-900-386-01 SCREW
358 1-693-570-22 TUNER (FM/AM) (AEP, UK)
358 1-693-571-11 TUNER (KR)
358 1-693-572-22 TUNER (FM/AM) (EA, MX, SP)
358 1-693-573-22 TUNER (FM/AM) (US, CND)
359 A-4676-819-A SUB TRANS BOARD, COMPLETE (US, CND)
359 A-4676-840-A SUB TRANS BOARD, COMPLETE (AEP, UK)
359 A-4730-192-A SUB TRANS BOARD, COMPLETE (SP)
359 A-4730-194-A SUB TRANS BOARD, COMPLETE (KR)
359 A-4730-197-A SUB TRANS BOARD, COMPLETE (MX)
359 A-4730-199-A SUB TRANS BOARD, COMPLETE (EA)
0F913 1-576-537-11 FUSE, GLASS TUBE (DIA. 5) (8A/125V) (US)
0F913 1-576-193-21 FUSE, GLASS TUBE (DIA. 5) (6.3A/125V)
(CND)
0F913 1-533-472-11 FUSE, GLASS TUBE (DIA. 5) (5A/250V)
(EA, MX, SP)
0F913 1-533-470-11 FUSE, GLASS TUBE (DIA. 5) (3.15A/250V)
(AEP, UK)
0F914 1-576-537-11 FUSE, GLASS TUBE (DIA. 5) (8A/125V)
(US, CND)
0F914 1-576-655-11 FUSE, GLASS TUBE (DIA. 5) (8A/250V)
(EXCEPT US, CND)
0F915 1-576-537-11 FUSE, GLASS TUBE (DIA. 5) (8A/125V)
(US, CND)
0F915 1-576-655-11 FUSE, GLASS TUBE (DIA. 5) (8A/250V)
(EXCEPT US, CND)
0F916 1-576-655-11 FUSE, GLASS TUBE (DIA. 5) (8A/250V)
0F917 1-576-655-11 FUSE, GLASS TUBE (DIA. 5) (8A/250V)
0F918 1-576-537-11 FUSE, GLASS TUBE (DIA. 5) (8A/125V)
(US, CND)
0F918 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) (6.3A/250V)
(EXCEPT US, CND)
0F919 1-533-454-11 FUSE, GLASS TUBE (DIA. 5) (6.3A/125V)
(US, CND)
0F919 1-533-472-11 FUSE, GLASS TUBE (DIA. 5) (5A/250V)
(EXCEPT US, CND)
0T911 1-437-670-11 TRANSFORMER, POWER (US, CND)
0T911 1-437-799-11 TRANSFORMER, POWER (AEP, UK)
0T911 1-437-800-11 TRANSFORMER, POWER (KR, MX, SP)
0T911 1-437-801-11 TRANSFORMER, POWER (EA)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
354
355
355
359
358
352
351
353
chassis section-3
T911
F919
F918
F915
F917
F916
F914
F913
#1
#1
#1
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
