HCD-FL7D
23

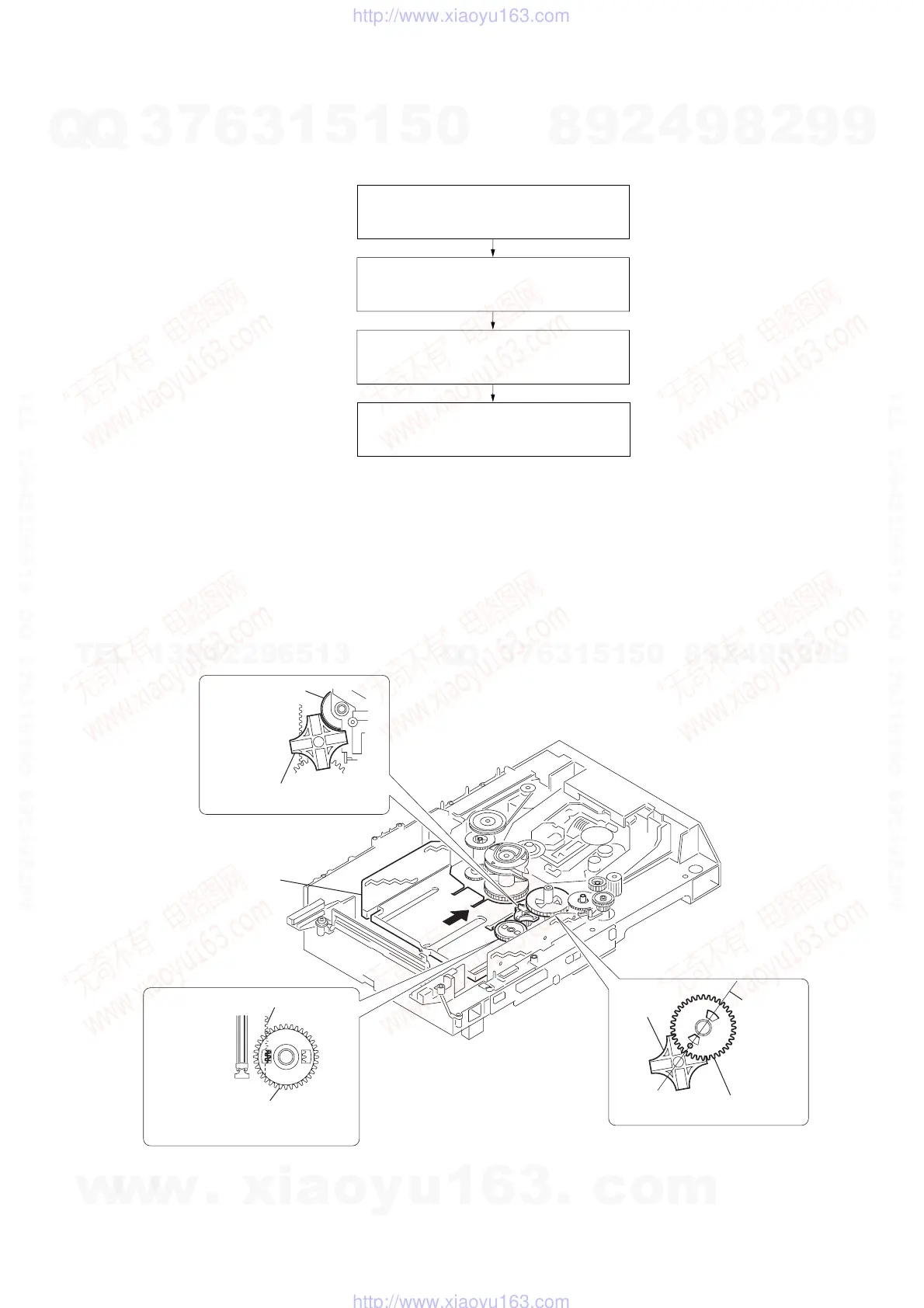

• This set can be assembled in the order shown below.
4-1. ASSEMBLY FLOW
SECTION 4
ASSEMBLY
4-4. STOCKER SECTION INSTALLATION
(Page 24)
4-3. SLIDER (SELECTION) INSTALLATION
(Page 24)
4-2. GEARS INSTALLATION
(Page 23)
4-5. CHASSIS (MOLD B) SECTION
INSTALLATION (Page 25)
1
Slide the slider (u/d)
fully in the arrow
direction.
3
gear (gear B)
2
gear (U/D slider)
4
gear (gear A)
portion A
Adjust the gear (gear B) with the
portion A as shown.
slider (U/D) gear
Adjust the gear so that it meshes with
the bottom tooth of slider (U/D) gear,
as shown.
gear
(gear B)
linearly
Adjust so as to be aligned with
gear B linearly, as shown.
4-2. GEARS INSTALLATION
Note: Follow the assembly procedure in the numerical order given.
