129
HCD-FL7D

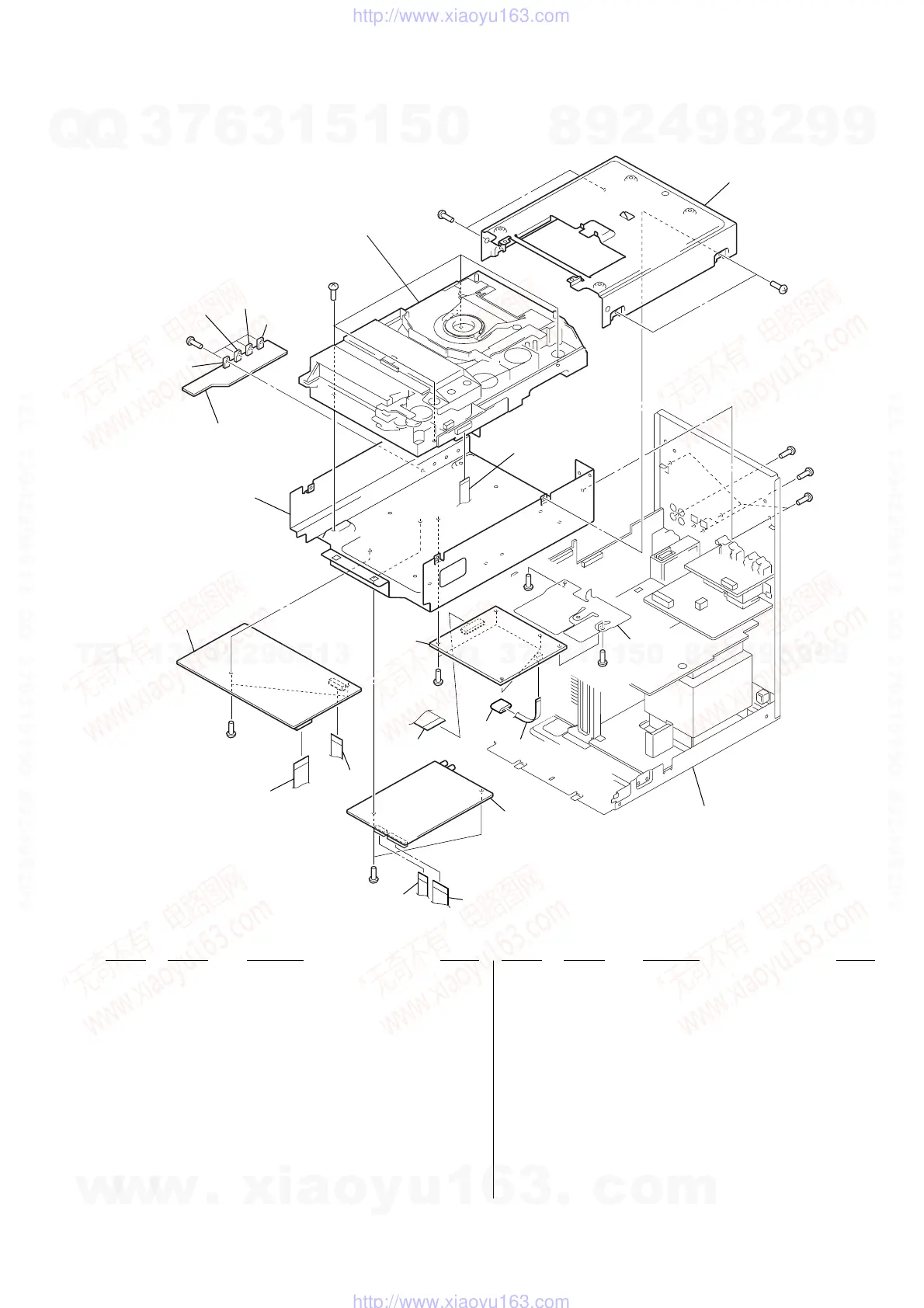

9-6. CHASSIS SECTION-1
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
301 1-782-252-11 WIRE (FLAT TYPE) (9 CORE)
302 1-824-686-11 WIRE (FLAT TYPE) (13 CORE)
303 1-773-123-11 WIRE (FLAT TYPE) (19 CORE)
304 1-469-829-11 CORE, FERRITE (US, CND, AEP, UK, KR)
305 A-4676-790-A MC BOARD, COMPLETE (US, CND)
305 A-4676-841-A MC BOARD, COMPLETE (KR, SP)
305 A-4676-852-A MC BOARD, COMPLETE (AEP, UK)
305 A-4730-222-A MC BOARD, COMPLETE (EA)
305 A-4730-227-A MC BOARD, COMPLETE (MX)
306 A-4676-906-A DSP BOARD, COMPLETE (US, CND)
306 A-4676-912-A DSP BOARD, COMPLETE (AEP, UK)
306 A-4676-916-A DSP BOARD, COMPLETE (EA, MX, SP)
306 A-4730-394-A DSP BOARD, COMPLETE (KR)
307 1-684-271-11 REGULATOR BOARD
308 1-773-049-11 WIRE (FLAT TYPE) (17 CORE)
309 A-4676-798-A MB BOARD, COMPLETE (US, CND)
309 A-4676-846-A MB BOARD, COMPLETE (EA, KR, MX, SP)
309 A-4676-850-A MB BOARD, COMPLETE (AEP, UK)
310 1-824-652-11 WIRE (FLAT TYPE) (29 CORE)
311 1-773-105-11 WIRE (FLAT TYPE) (19 CORE)
312 1-769-937-11 WIRE (FLAT TYPE) (11 CORE)
IC801 6-701-760-01 IC UPC3504AHF
IC802 8-759-231-53 IC TA7805S
IC803 8-759-231-57 IC TA7810S
IC804 8-759-231-53 IC TA7805S
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
CDM53N-DVBU14
303
305
306
311
312
301
304
310
302
309
308
307
chassis section-2
not
supplied
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
not supplied
IC801
IC802
IC803
IC804
not supplied
Ver 1.2
