HCD-FL7D

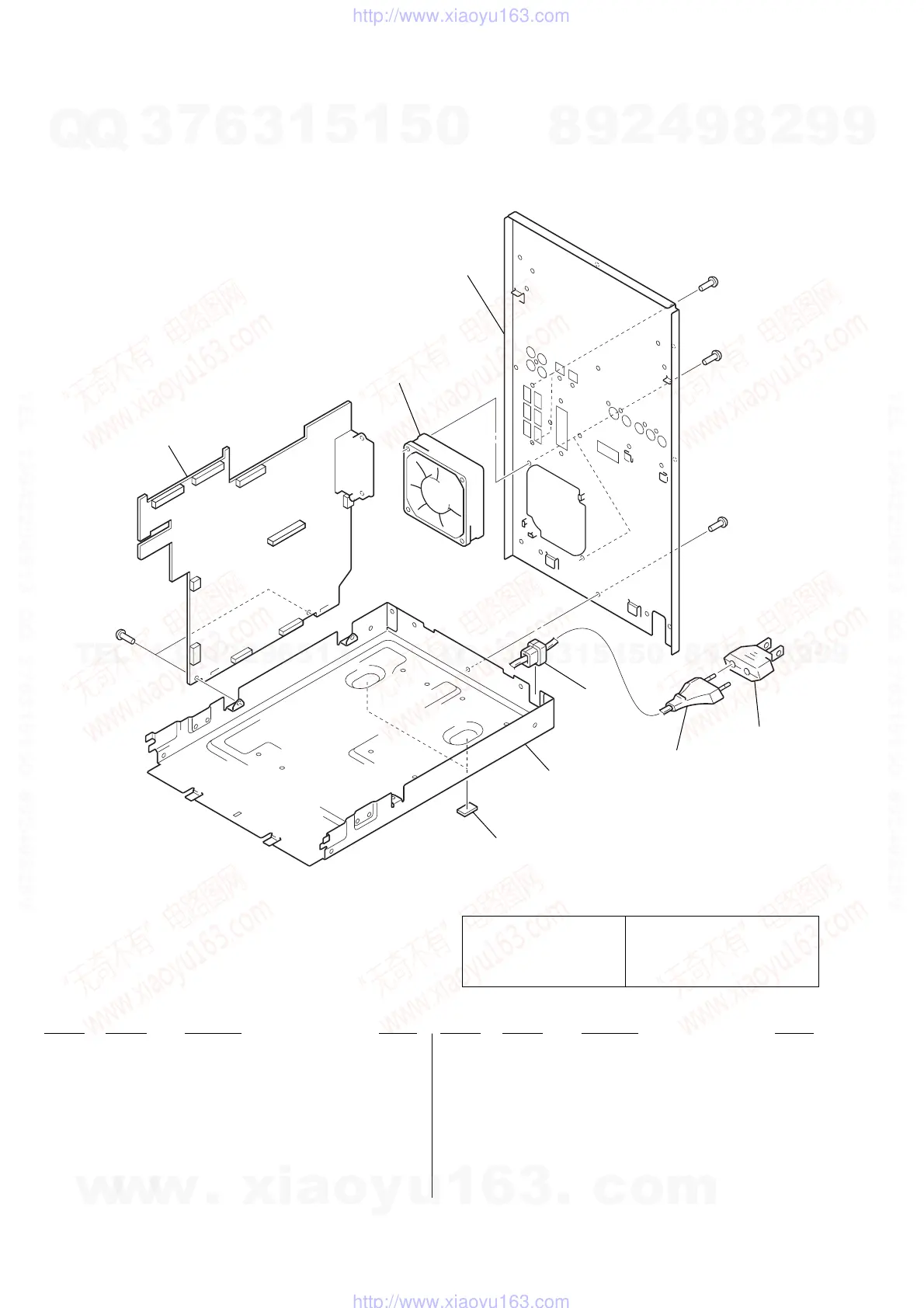

9-9. CHASSIS SECTION-4
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
451 4-225-252-01 CUSHION (FOOT)
452 A-4676-796-A SP RELAY BOARD, COMPLETE (US, CND)
452 A-4676-844-A SP RELAY BOARD, COMPLETE (EA, MX, SP)
452 A-4676-855-A SP RELAY BOARD, COMPLETE (AEP, UK)
452 A-4730-225-A SP RELAY BOARD, COMPLETE (KR)
0453 1-569-008-21 ADAPTOR, CONVERSION (EA, SP)
0453 1-770-019-51 ADAPTOR, CONVERSION PLUG (UK)
* 454 3-703-244-00 BUSHING (2104), CORD
(US, CND, AEP, UK, EA, KR, SP)
454 3-703-571-11 BUSHING (S) (4516), CORD (MX)
0455 1-769-079-22 CORD, POWER (KR)
0455 1-777-071-82 CORD, POWER (AEP, UK, EA, SP)
0455 1-783-531-31 CORD, POWER (US, CND)
0455 1-791-901-21 CORD, POWER (MX)
M801 1-763-488-51 FAN, DC
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
451
452
455
453
454
#1
not supplied
not supplied
M801
#1
#1
#1
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
