Sony HCD-FL7D - MB Board (Conductor Side)

HCD-FL7D
1313
MB BOARD
(CONDUCTOR SIDE)
IC210
20 11
110
IC402
IC202
IC203
1
4
8
5
IC204
(TYPE B)
IC205
(TYPE A)
IC703
IC706
IC501
120
21
40
80
61
6041
IC903
IC503
IC907
IC702
IC810
IC808
1
4
8
5
IC813
IC814
1
10
20
11
IC812
1
10
20
11
1
3
2
86
1
44
43
E
E
1
3
2
2
31
54
13
1-684-998-
12
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
H
I
J
K
R285
R779
R784
R774

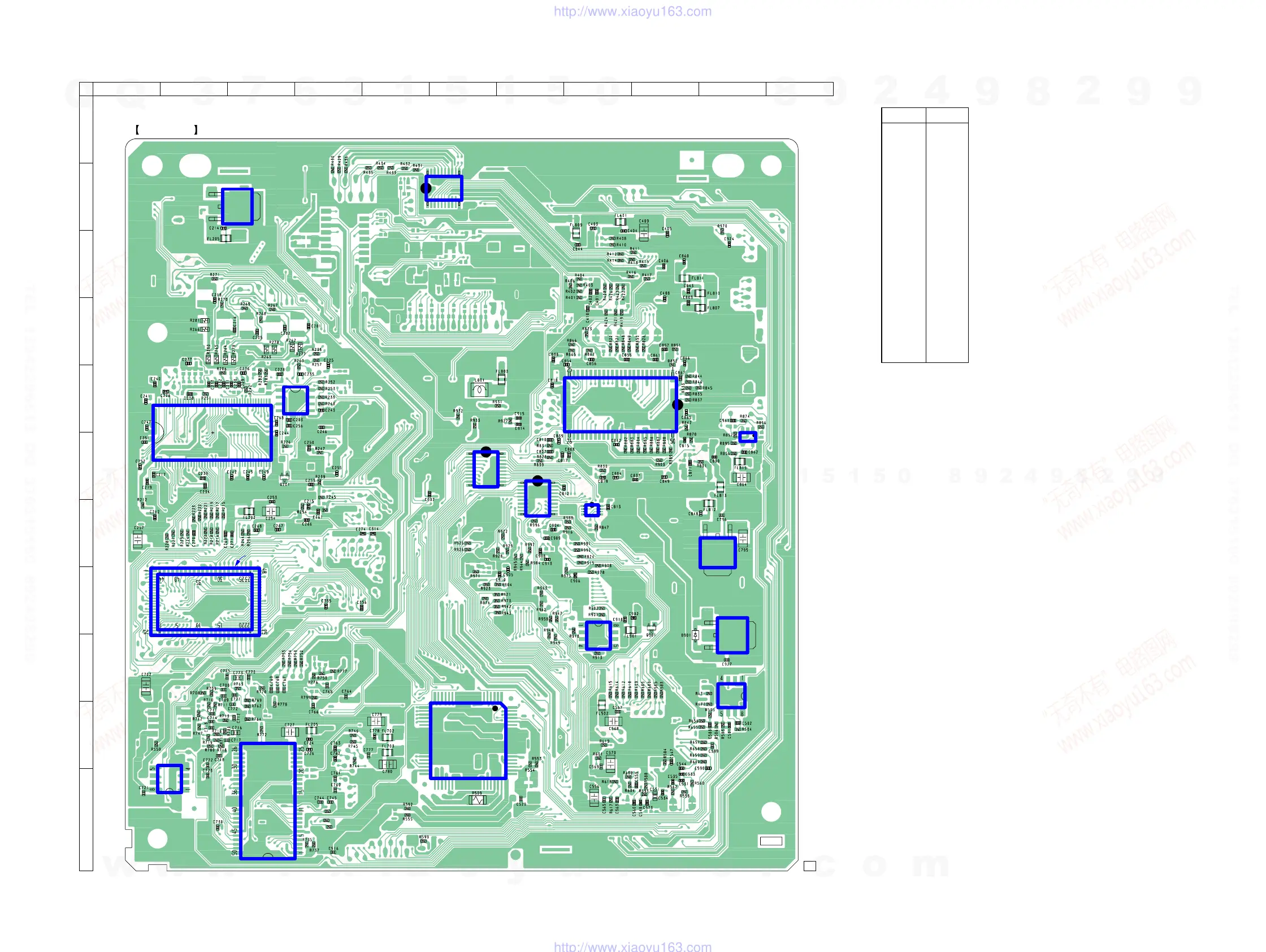

1-10. PRINTED WIRING BOARD – MB Board (Conductor Side) – Note: When replacing IC205 of type A, install IC204 instead of IC205.
• Semiconductor
Location
Ref. No. Location
D901 I-9
IC202 F-2
IC203 E-4
IC204 H-2
IC205 H-2
IC210 B-3
IC402 B-6
IC501 J-6
IC503 I-10
IC702 G-10
IC703 K-2
IC706 K-3
IC808 E-8
IC810 F-10
IC812 F-6
IC813 F-7
IC814 G-7
IC903 I-8
IC907 I-10
Q201 F-3
Q901 H-9
• Note: Refer to page 8 of original service manual
to discriminate typeA/B.
