Sony HCD-FL7D - PRINTED WIRING BOARD - GC Board -

HCD-FL7D
8282
IC201
FLUORESCENT INDICATOR TUBE
IC202
31 30
50
51
80
100
81
1
EEEEE E
E
E
E
EE
E
E
E
E
E
14
E
E
(CHASSIS)
(CHASSIS)
AE
PANEL (R)
BOARD
NO806
Q
MC BOARD
CN107
F
CONNECT
BOARD
CN701
J
TC DOOR
BOARD
NO813
H
CD MOTOR
BOARD
CN309
AF
PANEL (L)
BOARD
NO812
GC BOARD
1-684-191-
11
(12)
A
B
C
D
E
F
1 2 3 4 5 6 7
G
LOADING MOTOR BOARD
CN713
11
(22)
EXCEPT
AEP, UK
(AEP, UK)

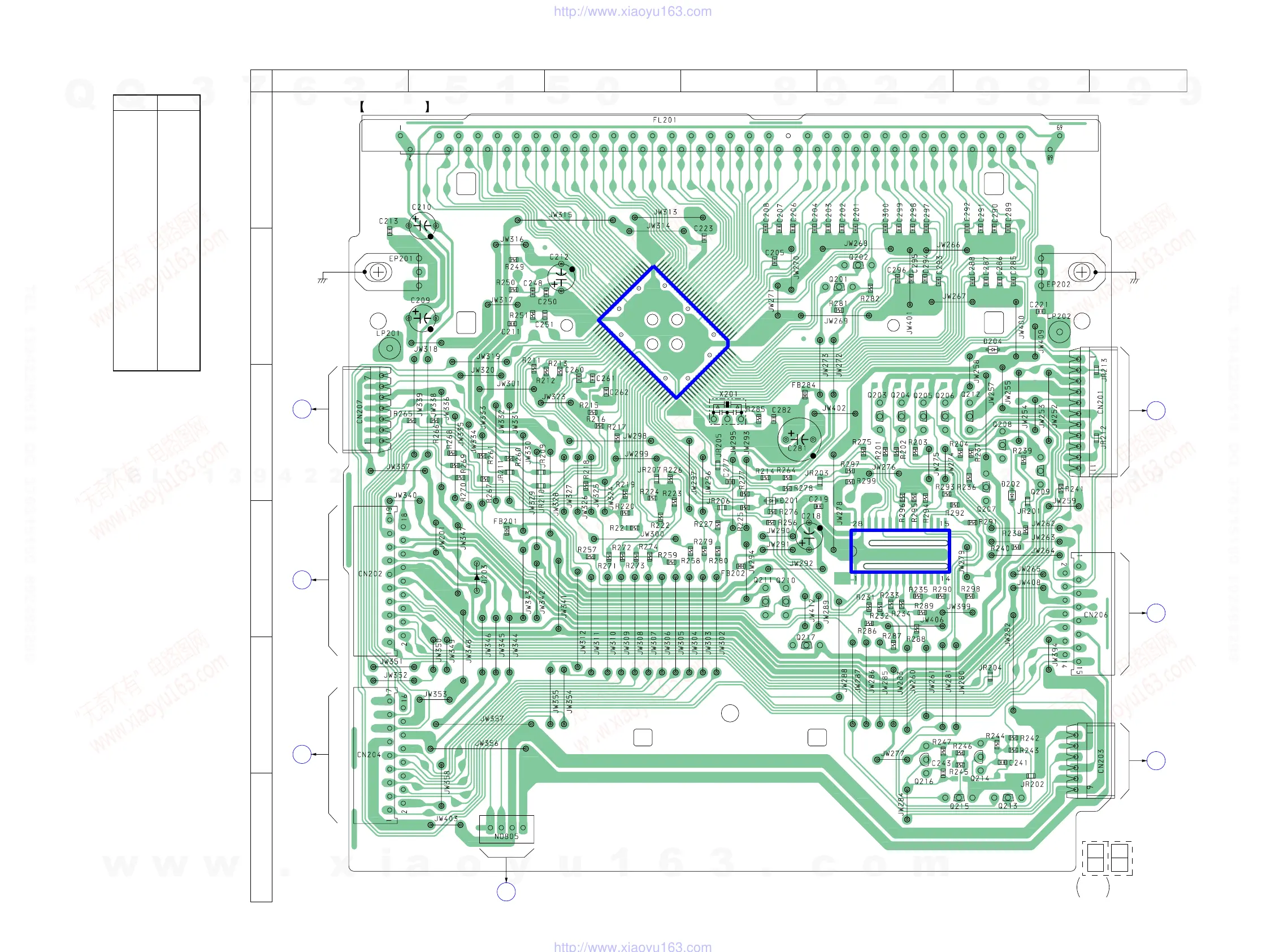

8-44. PRINTED WIRING BOARD – GC Board – • See page 45 for Circuit Boards Location.
D201 D-4
D202 C-6
D203 D-2
D204 B-6
IC201 B-3
IC202 D-5
Q201 B-5
Q202 B-5
Q203 C-5
Q204 C-5
Q205 C-5
Q206 C-5
Q207 C-6
Q208 C-6
Q209 C-6
Q210 D-4
Q211 D-4
Q212 C-6
Q213 F-6
Q214 E-6
Q215 F-6
Q216 E-5
Q217 E-4
• Semiconductor
Location
Ref. No. Location
(Page 84)
(Page 66)
(Page 58)
(Page 58)
(Page 64)
(Page 60)
(Page 84)
