Sony MHC-V6D Service Manual

MHC-V6D
10

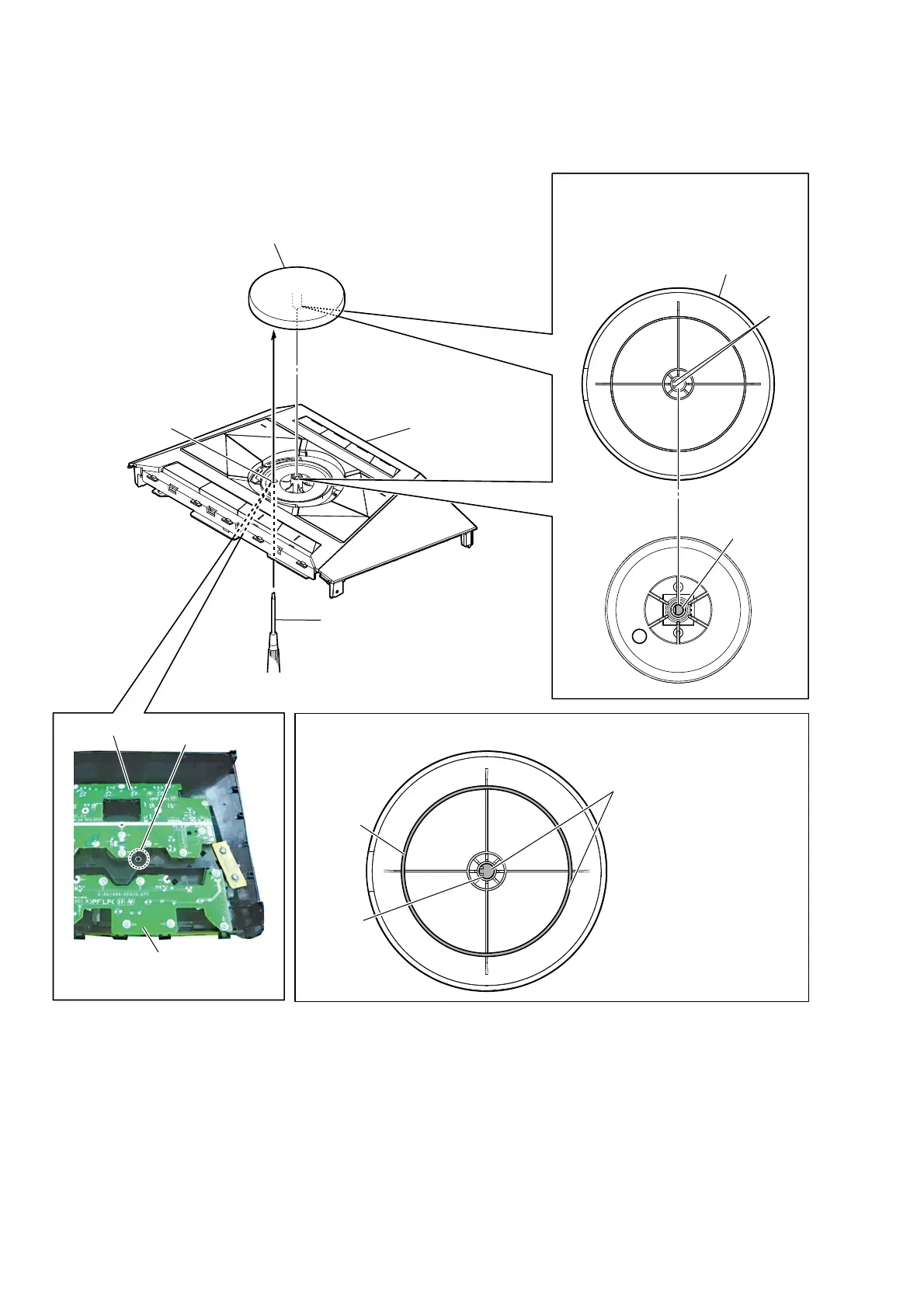

2-4. VOLUME KNOB BLOCK
2
volume knob block
hole
1
Push the volume knob block
by flat-head screwdriver.
top panel block
volume knob block
rib
shaft
Note 1:
When installing the volume knob block,
aline the two ribs of volume knob and
the shaft.
+RZWRLQVWDOOWKHYROXPHNQREEORFN
±BRWWRPYLHZ–
–7RSYLHZ–
Note 2:
When installing the volume knob block,
please apply suncall (CFD-703Z) to rib
and shaft inside.
$SSOLFDWLRQSRVLWLRQRIVXQFDOO&)'=
rib
hole
TOP KEY B board
TOP KEY A board
shaft
–BRWWRPYLHZ–
–7RSSDQHOEORFNERWWRPYLHZ–

Sony MHC-V6D Specifications

General

Type	Home audio mini system
Cassette deck	No
Product color	Black
Optical disc player	Yes
Number of optical discs	1 discs
Impedance	5 Ω
Bass reflex	-
Speaker type	3-way
RMS rated power	1440 W
Woofer diameter	250 mm
Tweeter diameter	40 mm
Number of speakers	5
Mid-range driver diameter	100 mm
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Display type	LCD
Audio (L/R) in	1
USB 2.0 ports quantity	2
Analog signal format system	NTSC, PAL
Apple docking compatibility	Not supported
On Screen Display (OSD) languages	ENG, CHI (SIMPL), THA, CHI (TR)
Disc types supported	CD-RW, DVD-R, DVD, CD, DVD+R, DVD+R DL, CD-R, DVD+RW, DVD-RW
Audio formats supported	WMA, MP3
Power source	AC
Input voltage	120-240 V
Input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Equalizer modes	Custom, Pop, Flat, Rap, Rock

Weight and Dimensions

Depth	325 mm
Width	339 mm
Height	908 mm
Weight	18000 g
Package depth	417 mm
Package width	972 mm
Package height	381 mm
Package weight	21000 g
