Sony MHC-V6D Service Manual

MHC-V6D
21

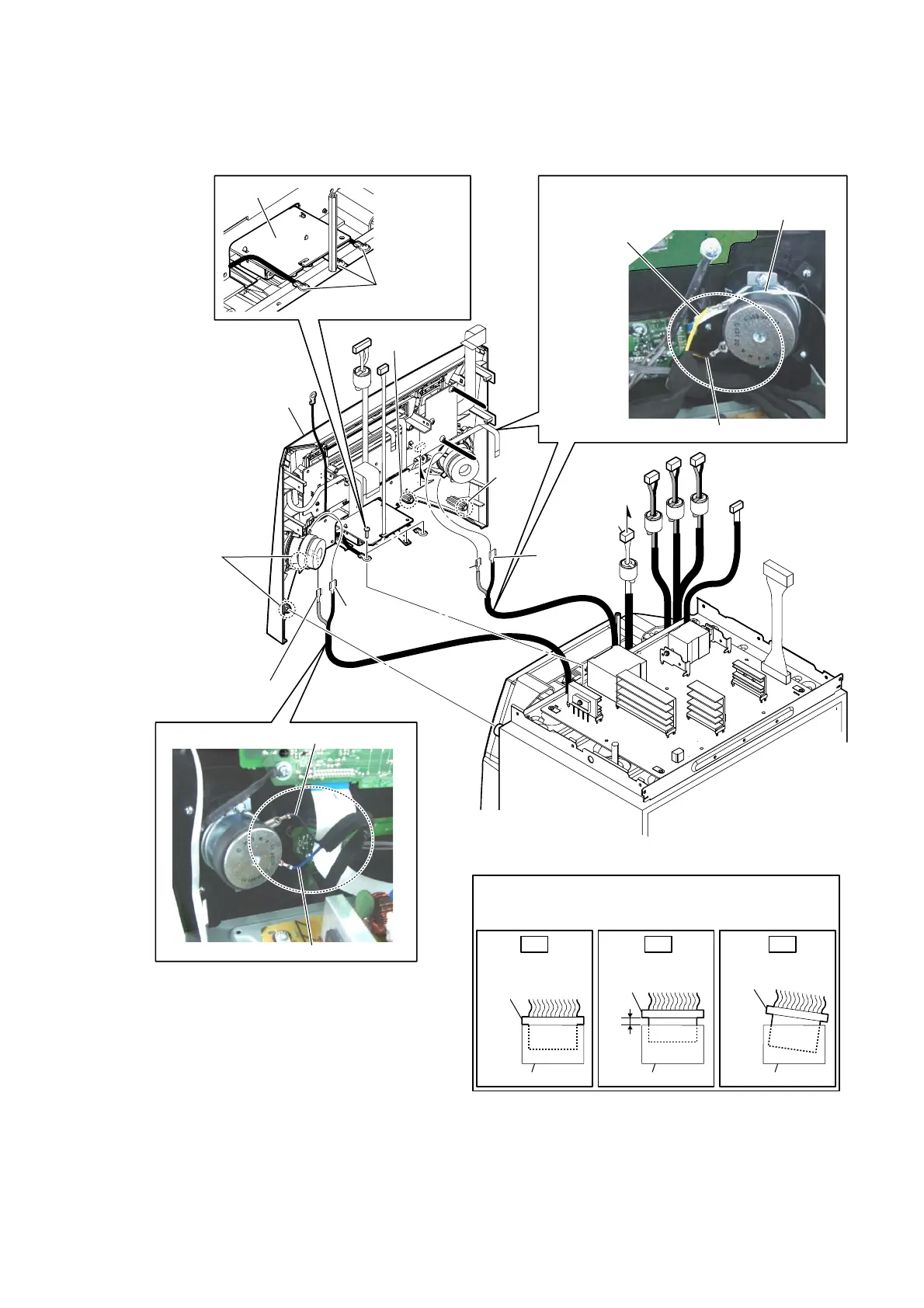

2-15. FRONT PANEL BLOCK-2
Note 1:
Pass the flexible flat cable (4P)
over the top of the loudspeaker.
Note 2:
Insert the connector straight into the interior.
There is a possibility that using this device without
the connector correctly installed will damage it.
Insert only part way.
Insert straight into
the interior.
connector
Insert at a slant.
connector
connector
connector
connector connector
OK NG NG
– Top rear view –
6 front panel block
[yellow]
[black]
[blue]
[black]
:LUHVHWWLQJ
:LUHVHWWLQJ
1 terminal
(narrow side)
[blue]
5 two bosses
5 boss
5 boss
2 terminal
(narrow side)
[yellow]
1 terminal
(wide side)
[black]
2 terminal
(wide side)
[black]
3 connector
(CN2002)
C
C
4 three screws
(BV/RING)
MIC board

Sony MHC-V6D Specifications

General

Type	Home audio mini system
Cassette deck	No
Product color	Black
Optical disc player	Yes
Number of optical discs	1 discs
Impedance	5 Ω
Bass reflex	-
Speaker type	3-way
RMS rated power	1440 W
Woofer diameter	250 mm
Tweeter diameter	40 mm
Number of speakers	5
Mid-range driver diameter	100 mm
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Display type	LCD
Audio (L/R) in	1
USB 2.0 ports quantity	2
Analog signal format system	NTSC, PAL
Apple docking compatibility	Not supported
On Screen Display (OSD) languages	ENG, CHI (SIMPL), THA, CHI (TR)
Disc types supported	CD-RW, DVD-R, DVD, CD, DVD+R, DVD+R DL, CD-R, DVD+RW, DVD-RW
Audio formats supported	WMA, MP3
Power source	AC
Input voltage	120-240 V
Input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Equalizer modes	Custom, Pop, Flat, Rap, Rock

Weight and Dimensions

Depth	325 mm
Width	339 mm
Height	908 mm
Weight	18000 g
Package depth	417 mm
Package width	972 mm
Package height	381 mm
Package weight	21000 g
