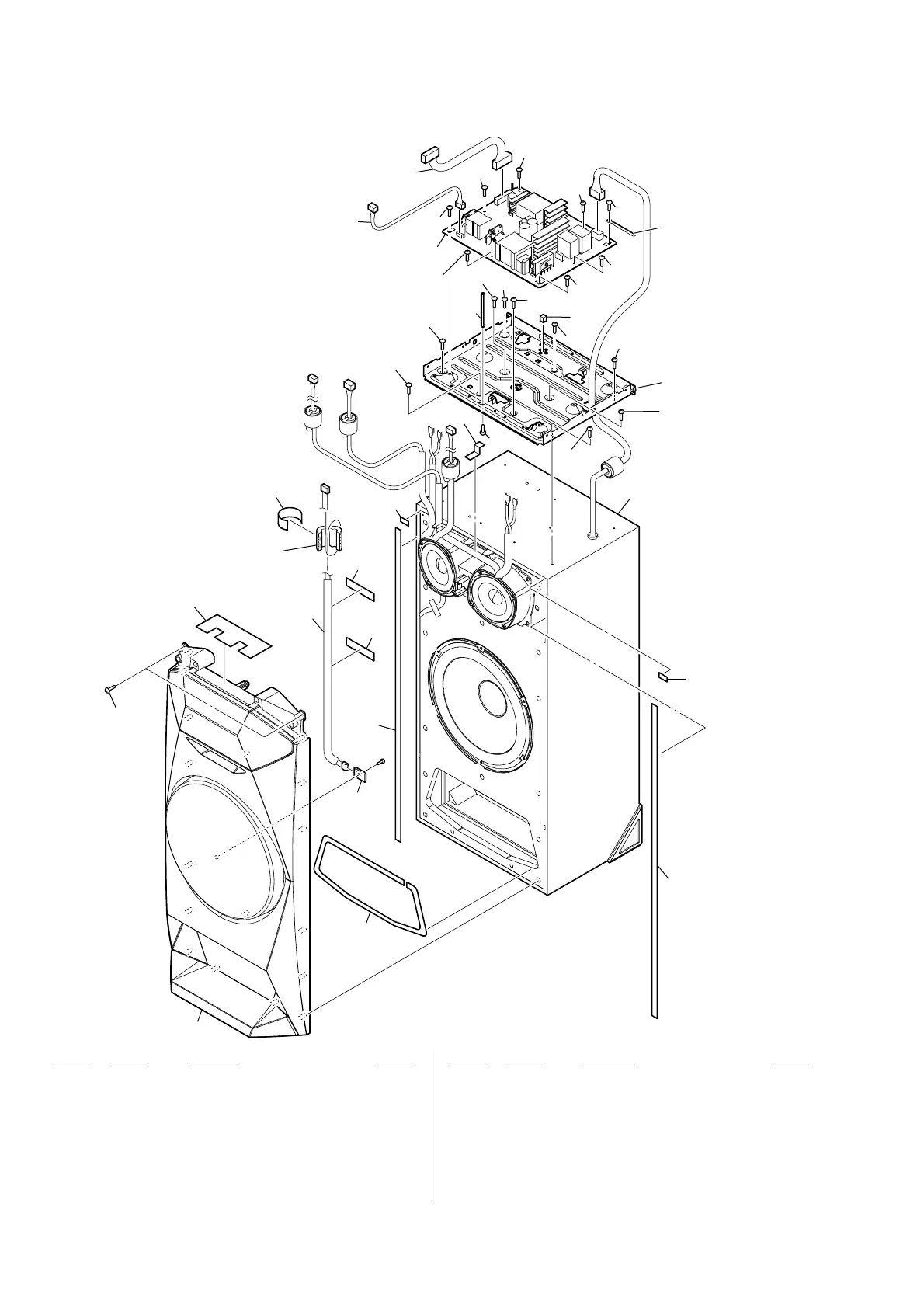

6-5. SWITCHING REGULATOR SECTION
201 X-2588-866-1 PANEL, FRONT (SP) ASSY
202 4-535-350-01 CUSHION, SCREW
203 4-474-153-01 CUSHION (H)
204 4-474-156-11 CUSHION (E 0.5)
205 4-474-153-11 CUSHION (H)
206 4-874-614-02 SCREW (1) (3.5X14), TAPPING
207 4-474-155-71 CUSHION (E 1)
208 4-474-155-81 CUSHION (E 1)
209 4-151-153-21 SCREW, +PSW M3X10 (SPECIAL NECK)
210 4-534-351-01 SPACER (HEX)
211 4-534-016-01 CUSHION (PWB)
212 3-704-515-32 SCREW (BV/RING)
* FC5 1-500-082-11 CLAMP, SLEEVE FERRITE
0 SWR1 1-474-563-11 SWITCHING REGULATOR
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
speaker cabinet section
211
212
206
206
206
206
210
201
208
207
207
202
206
203
203
206
206
206
206
206
205
209
204
not supplied
not
supplied
not supplied
not supplied
SWR1
not supplied
not
supplied
FC5
not supplied
(SPEAKER
LED board)
not supplied
#2
212
212
212
212
212
212
212
