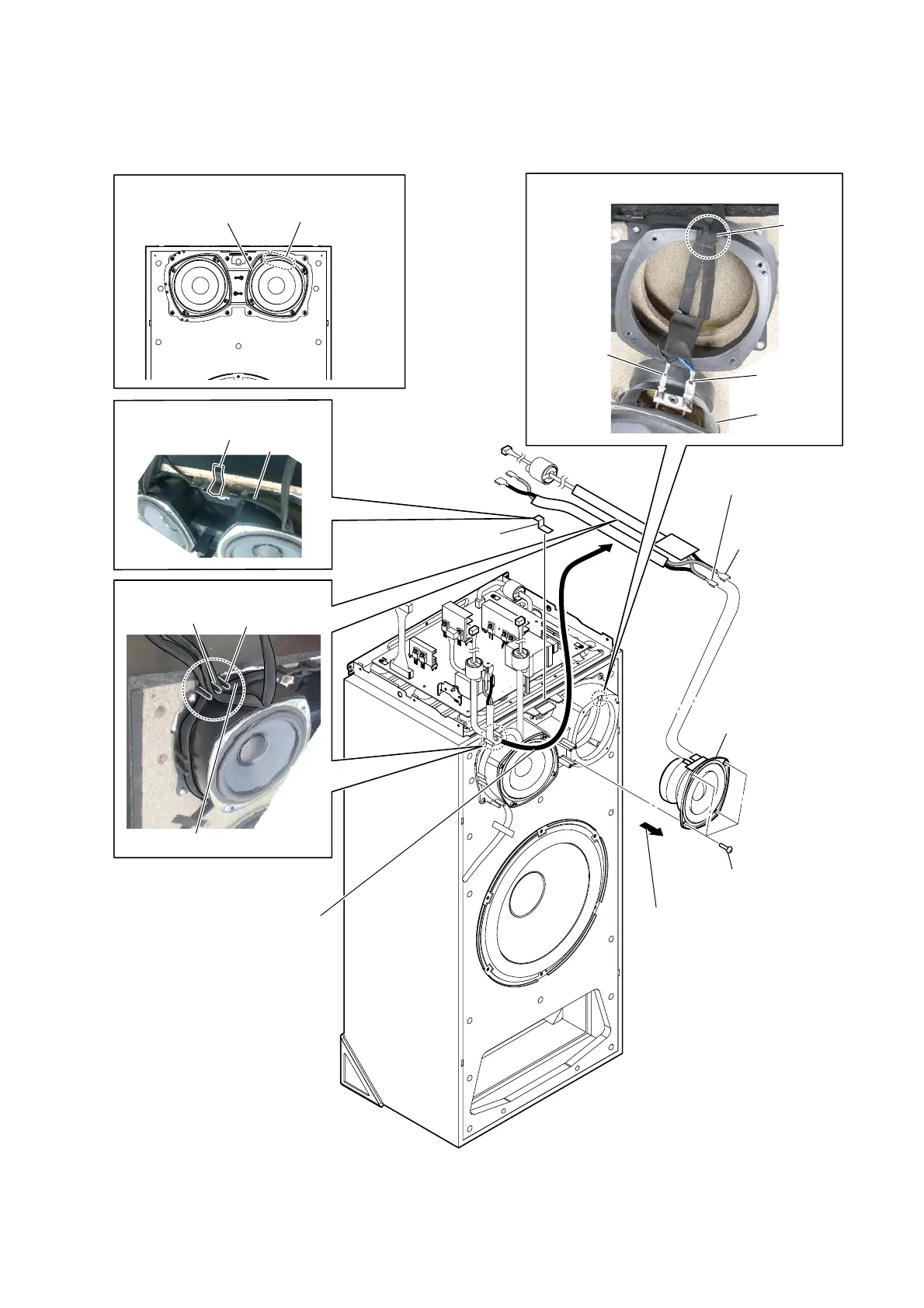

2-21. LOUDSPEAKER (10 cm) (MID: R-CH) (SP3)
4 Remove the loudspeaker (10 cm) (SP3)
in the direction of the arrow.
2 Remove the wire.
3 four tapping screws
(3.5 u 14)
6 loudspeaker (10 cm)
(mid: R-ch) (SP3)
5 terminal
(narrow side)
5 terminal
(wide side)
1 cushion (H)
cushion (H)
terminal position
loudspeaker (10 cm)
(SP3)
terminal
(wide side)
groove
terminal
(narrow side)
:LUHVHWWLQJ
:LUHVHWWLQJ
:LUHVHWWLQJ
loudspeaker
(10 cm) (SP3)
rib
wire
rib
+RZWRLQVWDOOWKHORXGVSHDNHUFP63
wire
–)URQWOHIWYLHZ–

Sony MHC-V6D Specifications

General

Type	Home audio mini system
Cassette deck	No
Product color	Black
Optical disc player	Yes
Number of optical discs	1 discs
Impedance	5 Ω
Bass reflex	-
Speaker type	3-way
RMS rated power	1440 W
Woofer diameter	250 mm
Tweeter diameter	40 mm
Number of speakers	5
Mid-range driver diameter	100 mm
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Display type	LCD
Audio (L/R) in	1
USB 2.0 ports quantity	2
Analog signal format system	NTSC, PAL
Apple docking compatibility	Not supported
On Screen Display (OSD) languages	ENG, CHI (SIMPL), THA, CHI (TR)
Disc types supported	CD-RW, DVD-R, DVD, CD, DVD+R, DVD+R DL, CD-R, DVD+RW, DVD-RW
Audio formats supported	WMA, MP3
Power source	AC
Input voltage	120-240 V
Input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Equalizer modes	Custom, Pop, Flat, Rap, Rock

Weight and Dimensions

Depth	325 mm
Width	339 mm
Height	908 mm
Weight	18000 g
Package depth	417 mm
Package width	972 mm
Package height	381 mm
Package weight	21000 g
