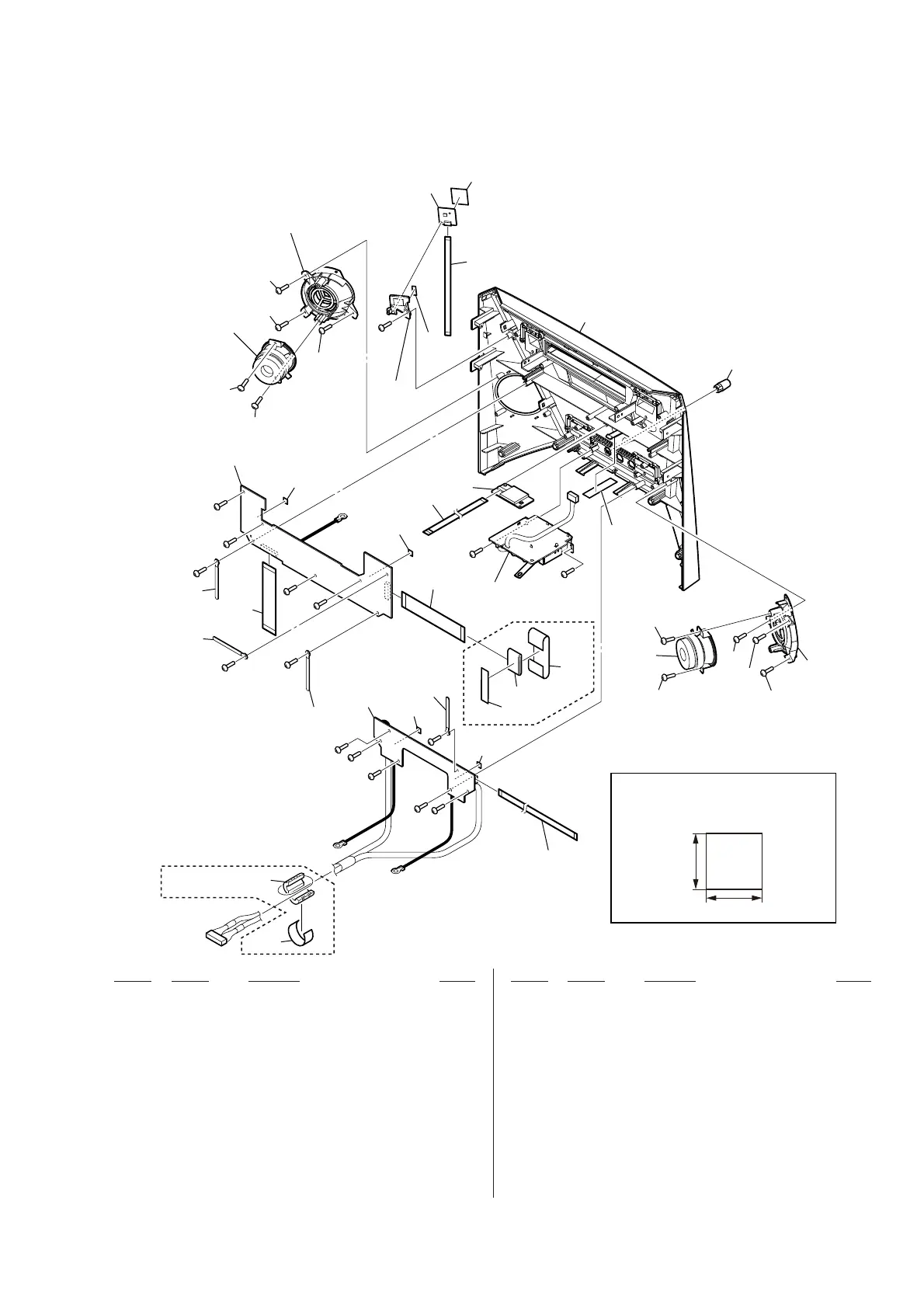

6-8. FRONT PANEL SECTION
• Rear view
351 4-474-156-11 CUSHION (E 0.5) (E93)
352 4-531-940-01 KNOB (MIC)
353 3-831-441-11 CUSHION, SPEAKER GRILLE (FAB-NW)
(See Note)
354 4-986-971-12 SCREW (3.5)
355 3-087-053-01 +BVTP2.6 (3CR)
356 A-2054-068-A USB BOARD, COMPLETE (Except E93)
356 A-2054-069-A USB BOARD, COMPLETE (E93)
357 4-475-030-01 ADHESIVE SHEET (NFC)
358 X-2588-878-1 PANEL, FRONT ASSY
359 4-474-153-11 CUSHION (H)
360 4-474-156-61 CUSHION (E 0.5) (E93)
BT1 1-492-699-11 BLUETOOTH MODULE
FC3 1-457-369-12 CORE, FERRITE (E93)
FC4 1-500-635-11 CORE, FERRITE (E93)
FFC5 9-885-196-67 FY13 FFC F050 (1.0 mm_15P_KEY)
FFC6 9-885-196-63 FY13 FFC F010 (0.5 mm_8P_NFC)
FFC7 9-885-196-64 FY13 FFC F020 (0.5 mm_10P_BT)
FFC8 9-885-196-71 FY13 FFC F090 (1.0 mm_4P_USB)
FFC9 9-885-196-66 FY13 FFC F040 (1.0 mm_23P_FL)
NFC1 8-989-470-05 RC-S801 (NFC module)
SP2 1-858-981-11 LOUDSPEAKER (4 cm) (Tweeter) (L-ch)
SP4 1-858-981-11 LOUDSPEAKER (4 cm) (Tweeter) (R-ch)
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
SP4
not supplied
(FL board)
not supplied
357
355
355
355
359
351
NFC1
FFC6
not
supplied
not supplied
not
supplied
not supplied
not supplied
not
supplied
354
355
355
355
358
354
354
354
353
353
360
359
356
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
FFC5
FFC7
FC3
FFC9
BT1
FC4
SP2
353
353
not
supplied
(E93)
5 mm
5 mm
Note:
When replacing the Ref. No. 353
for new part, cut out and use it
for a specified size.
FFC8
(E93)
352
not supplied
(MIC board)
Ver. 1.3

Sony MHC-V6D Specifications

General

Type	Home audio mini system
Cassette deck	No
Product color	Black
Optical disc player	Yes
Number of optical discs	1 discs
Impedance	5 Ω
Bass reflex	-
Speaker type	3-way
RMS rated power	1440 W
Woofer diameter	250 mm
Tweeter diameter	40 mm
Number of speakers	5
Mid-range driver diameter	100 mm
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Display type	LCD
Audio (L/R) in	1
USB 2.0 ports quantity	2
Analog signal format system	NTSC, PAL
Apple docking compatibility	Not supported
On Screen Display (OSD) languages	ENG, CHI (SIMPL), THA, CHI (TR)
Disc types supported	CD-RW, DVD-R, DVD, CD, DVD+R, DVD+R DL, CD-R, DVD+RW, DVD-RW
Audio formats supported	WMA, MP3
Power source	AC
Input voltage	120-240 V
Input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Equalizer modes	Custom, Pop, Flat, Rap, Rock

Weight and Dimensions

Depth	325 mm
Width	339 mm
Height	908 mm
Weight	18000 g
Package depth	417 mm
Package width	972 mm
Package height	381 mm
Package weight	21000 g
