Sony MHC-V6D - D-AMP Board-1

MHC-V6D
17

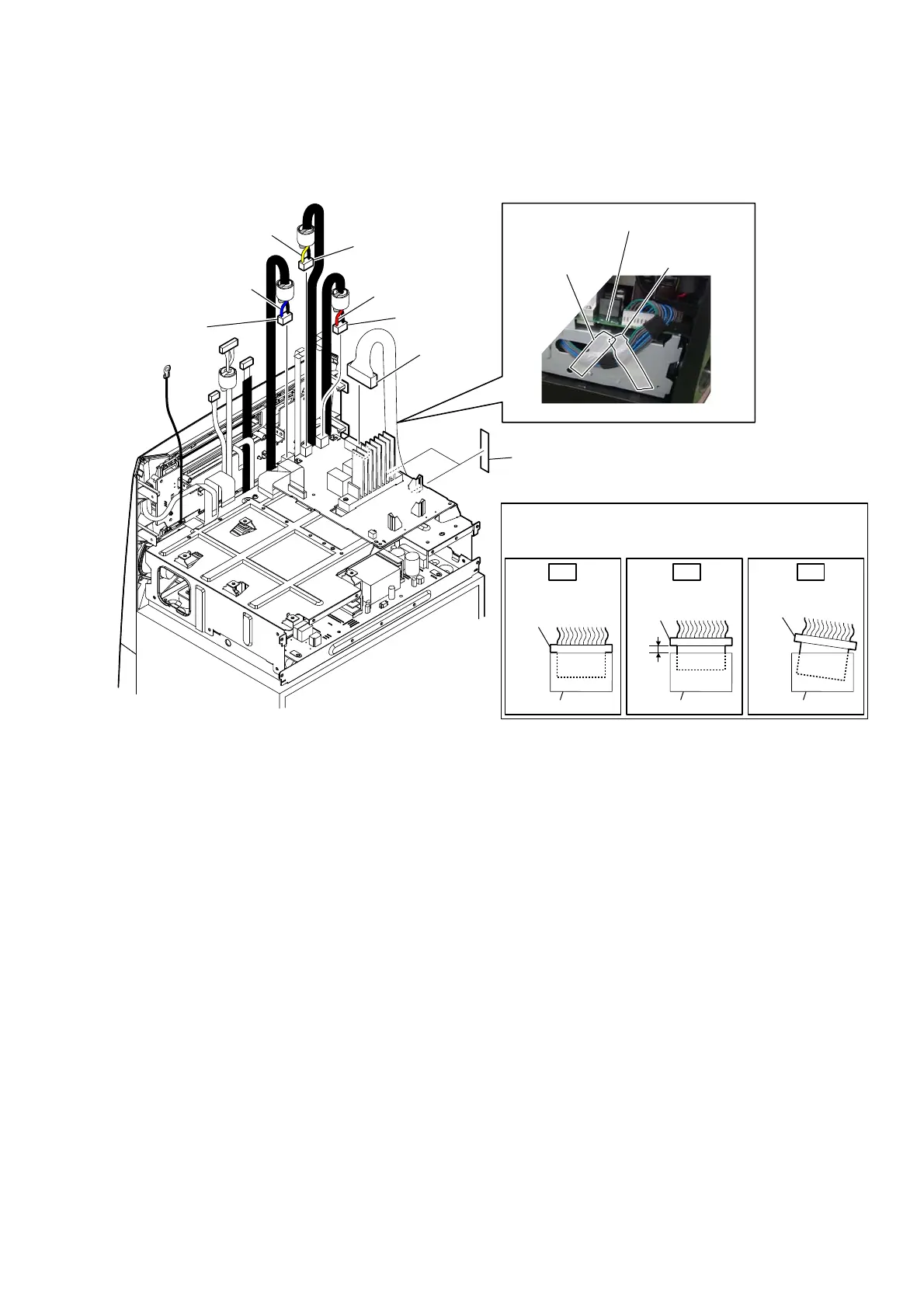

2-11. D-AMP BOARD-1
• Continued on 2-12 (page 18).
Note:
Insert the connector straight into the interior.
There is a possibility that using this device without
the connector correctly installed will damage it.
Insert only part way.
Insert straight into
the interior.
connector
Insert at a slant.
connector
connector
connector
connector connector
OK NG NG
– Top rear view –
5 connector
(CN1010)
4 connector
(CN1008)
3 connector
(CN1009)
:LUHVHWWLQJ
D-AMP board
1 two filament tapes
(sub material)
2 connector
(CN1000)
–/HIWYLHZ–
[yellow]
[red]
[blue]
filament tape
(sub material)
filament tape
(sub material)
